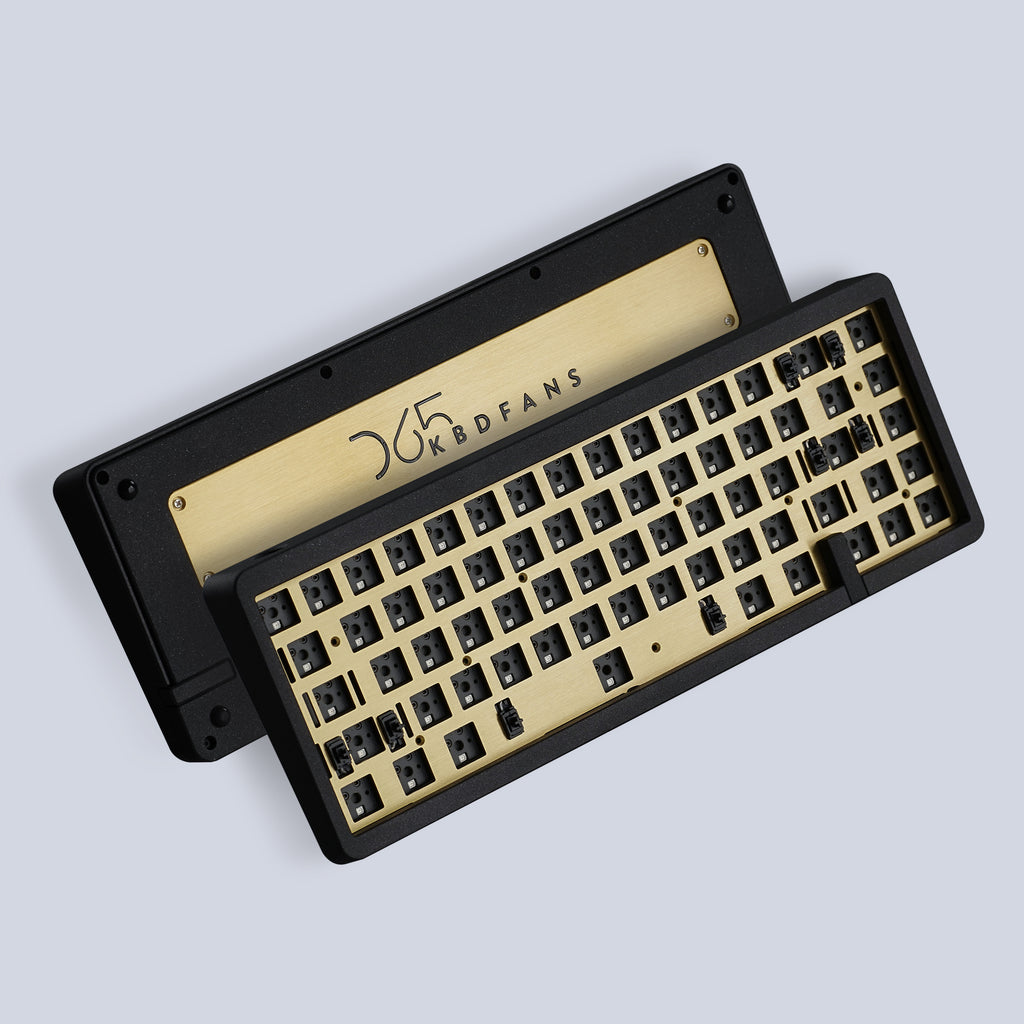

D65 Mechanical Keyboard KIT
There are 6 people on the waiting list, click the button below to join! We will notify you by email when the product available
or Sign In To Check StatusCongratulations! You are now on the waiting list, please check your inbox for our confirmation email!
Congratulations! You are now on the waiting list, please check your inbox for our confirmation email!
Register Account
Shipping Date: To be updated
Specifications :
- 65% Layout
- Gasket Mount
- Case: Full aluminum case or Top PC bottom aluminum case (with Blockers and Brass weight)
- Hot-swap PCB: KBD67 MarK II V3 Hot-swap PCB (with Per-key RGB on top, without RGB underglow)
- Soldered PCB: KBD67 MarK II v3 Soldered PCB (with RGB underglow, without Per-key RGB on top)
- Plate: Polycarbonate/Brass/FR4
- Stabilizers: Cherry screw-in stabs 60 set
- PCB foam: Put it between PCB and Plate (Hot-swap/Soldered version)
- Case foam: Put it between PCB and Case (Hot-swap/Soldered version)
- The PCB is fixed by 2 pieces of foam which are able to provide a dampened sound and feel tends to be quieter
- Designer: KBDfans Wei
-
D65 build Manual
Include
- D65 case x1
- PCB x1
- Plate x1
- Case foam x1
- PCB foam x1
- Stabs 60 set x1
- Screws/ Rubber feet/ Gaskets
Optional accessories
Switches options for D65: Click
Carrying Case for D65: Click
Soldered version assemble service for D65: Click
Hot-swap version assemble service for D65: Click
VIA firmware
The PCB has been pre-flashed with VIA compatible firmware already. So when you plug the keyboard in, the VIA program should detect your board automatically. If not, you need to upload the .json file to VIA first, then the VIA program will detect your board.
Hot-wap PCB
Soldered PCB
- Download link (same with KBD67 rev 2) (QMK Flash Manual)
- Notes: After you flash it, need to change the layout of Right Mods to 2x1.25U in the VIA (Picture reference)
