OG60 KEYBOARD

Inspiration

The prototype Cherry G80-3077SAU is one of my favorite mechanical keyboards, and I love the great design. We recreated this 60% layout keyboard kit with reference to the shape of the G80-3077SAU.

Design & Colors

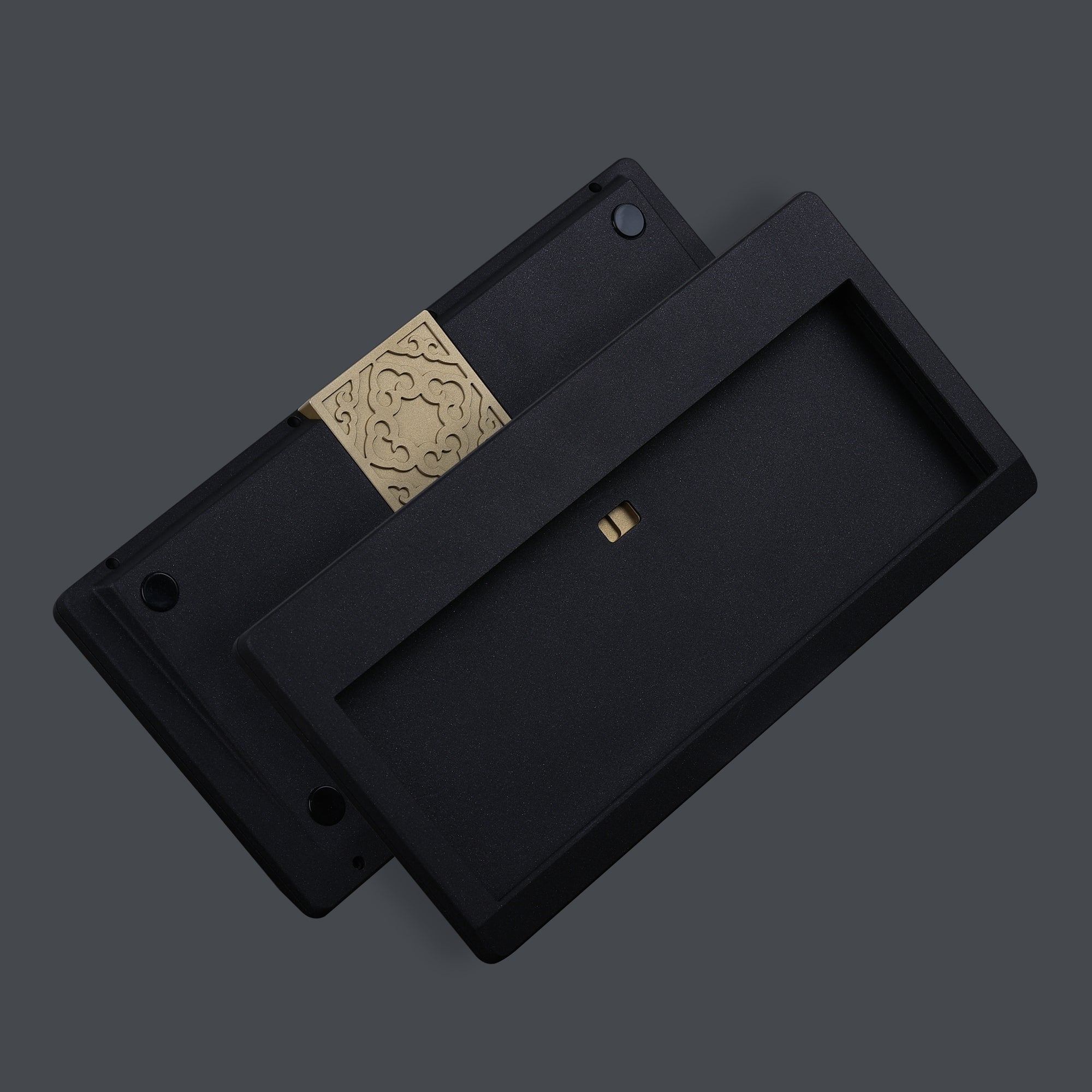

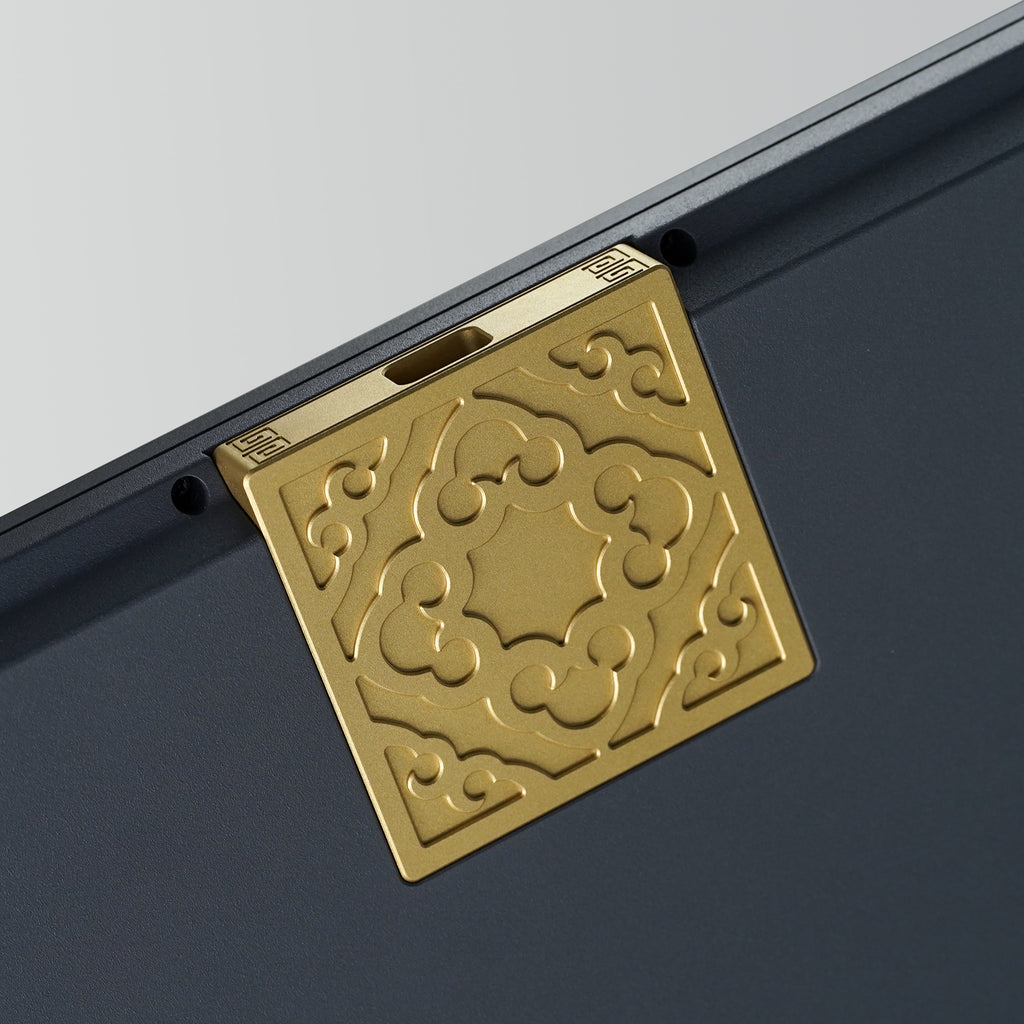

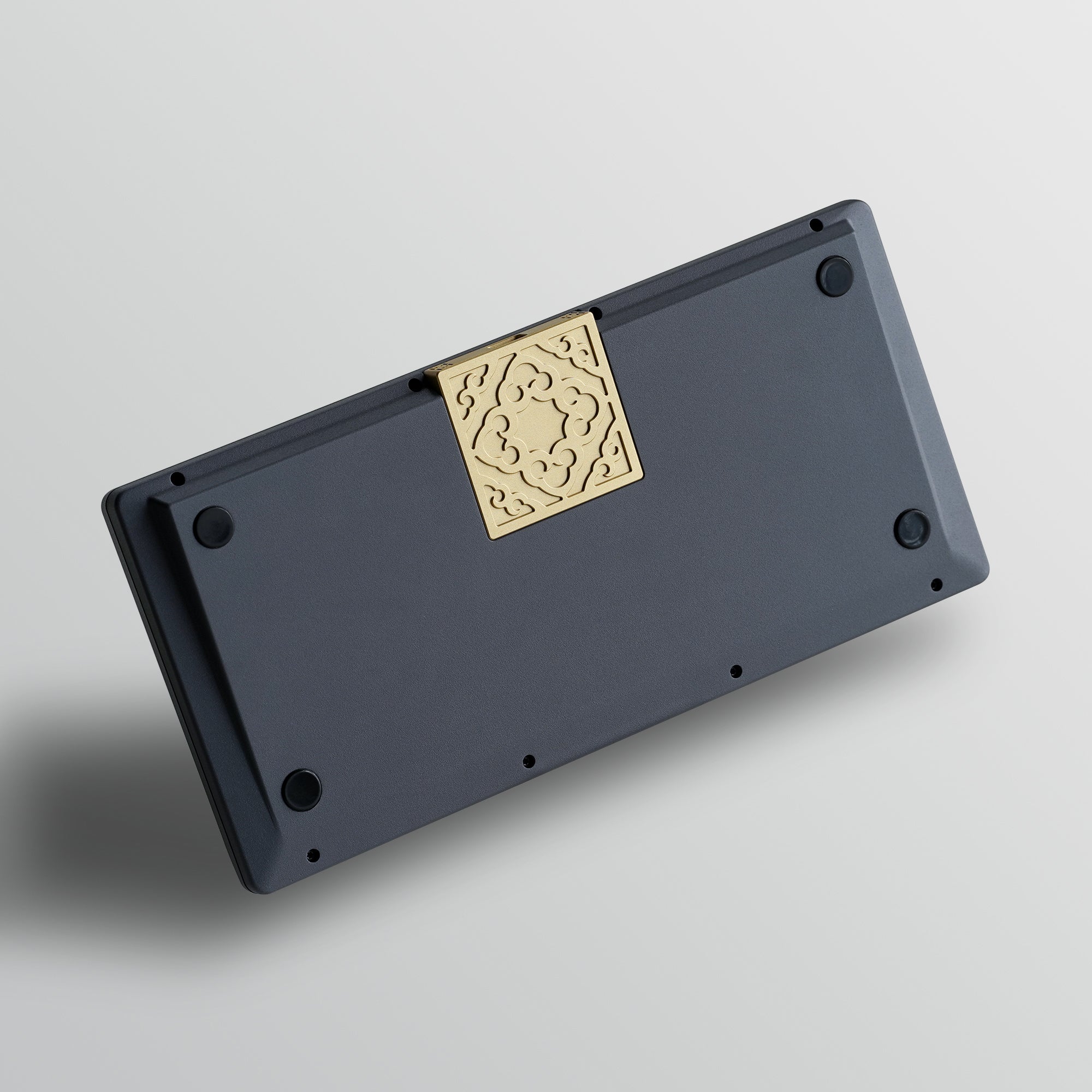

OG60 is a retro design and electrostatic coating process. It uses high-quality aluminum alloy as raw material and is processed by CNC machine. The weight at the bottom is made of brass, and the surface is sandblasted process. Not only can increase the weight of the keyboard but also more beautiful.The pattern engraved on the weight is the pattern on traditional Chinese furniture, the cloud pattern, which symbolizes peace and auspiciousness.

KBDfans OG 60 Building Tutorial

Color

All four colors are blasted coating process

not rendering images

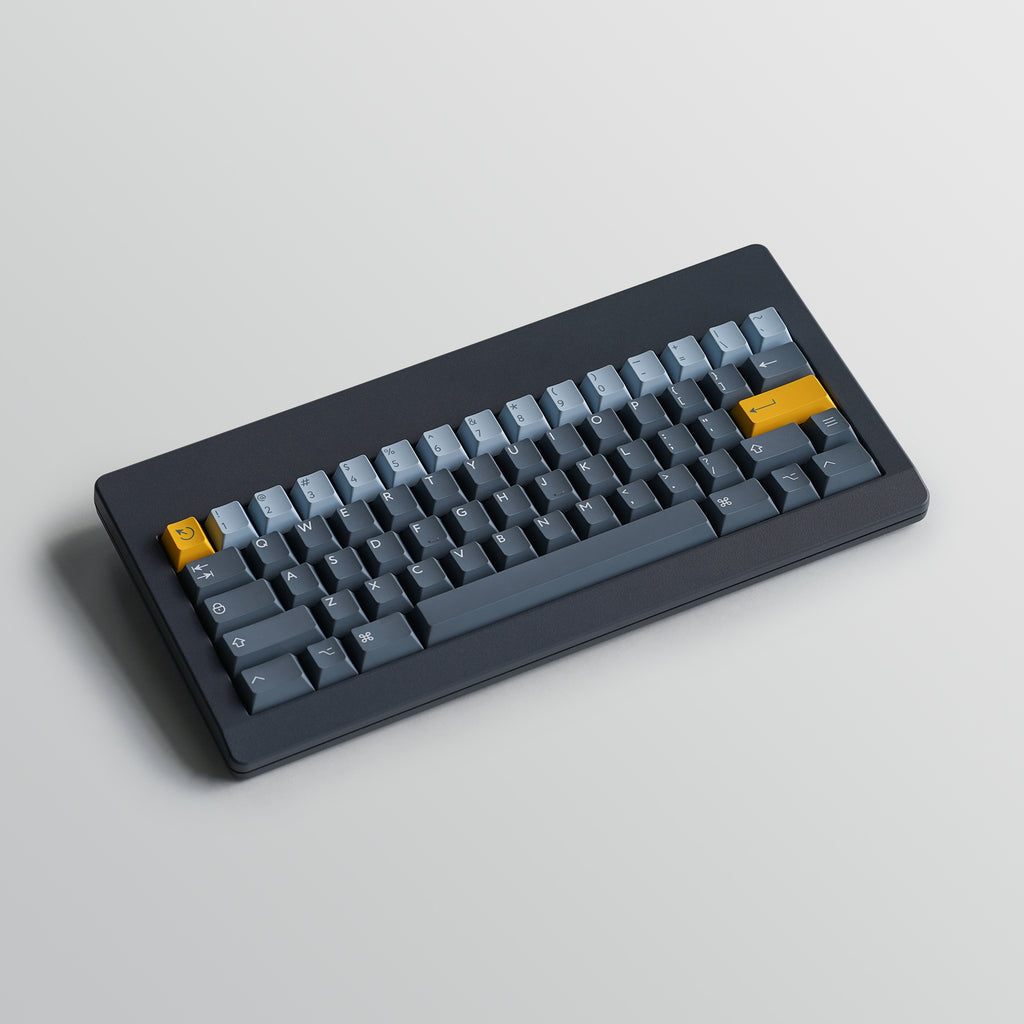

Gray blue

Creamy white

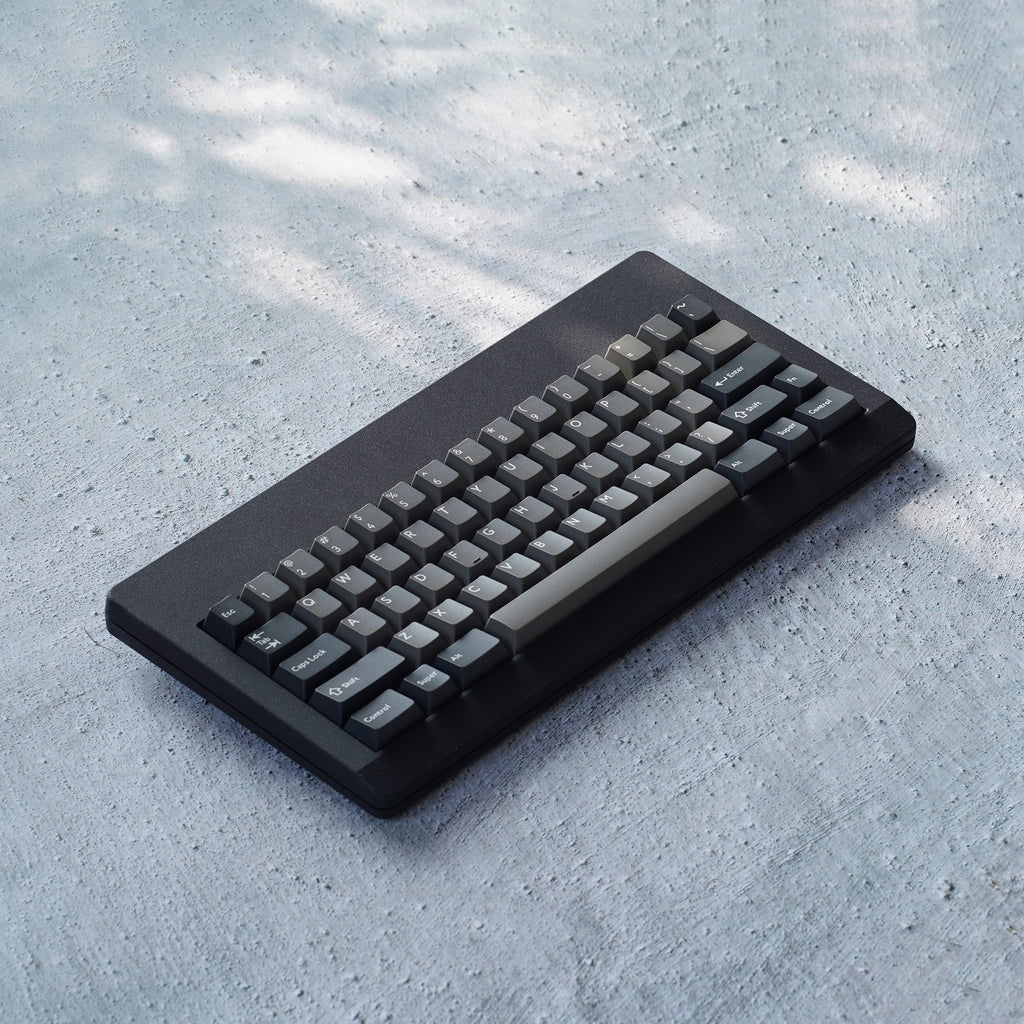

Starry black

Gray

Layout

WKL

WK

HHKB

What's inside?

Comes with 2 Plate, Fr4 and Polycarbonate materials

Dual-mount support

Feel different typing experience by using different fixing methods

TOP MOUNT

GASKET MOUNT

More photos

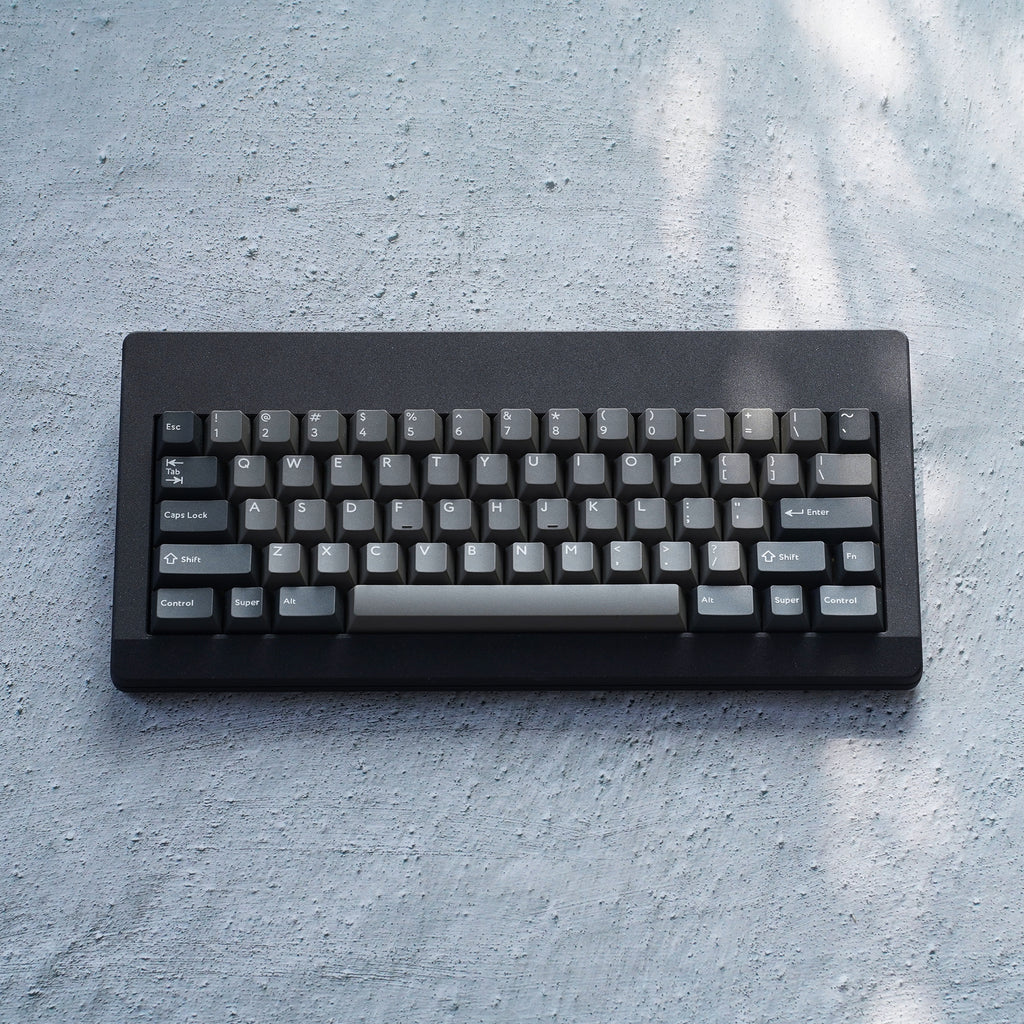

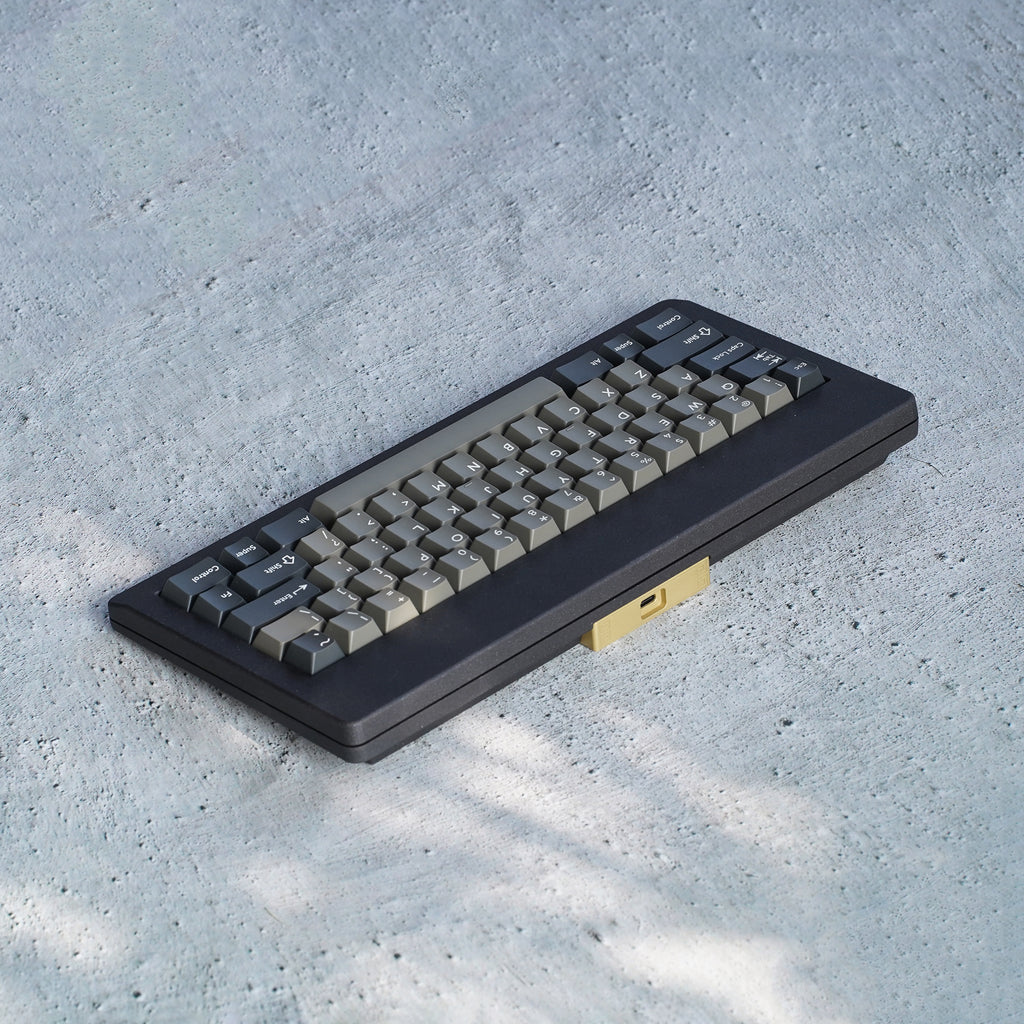

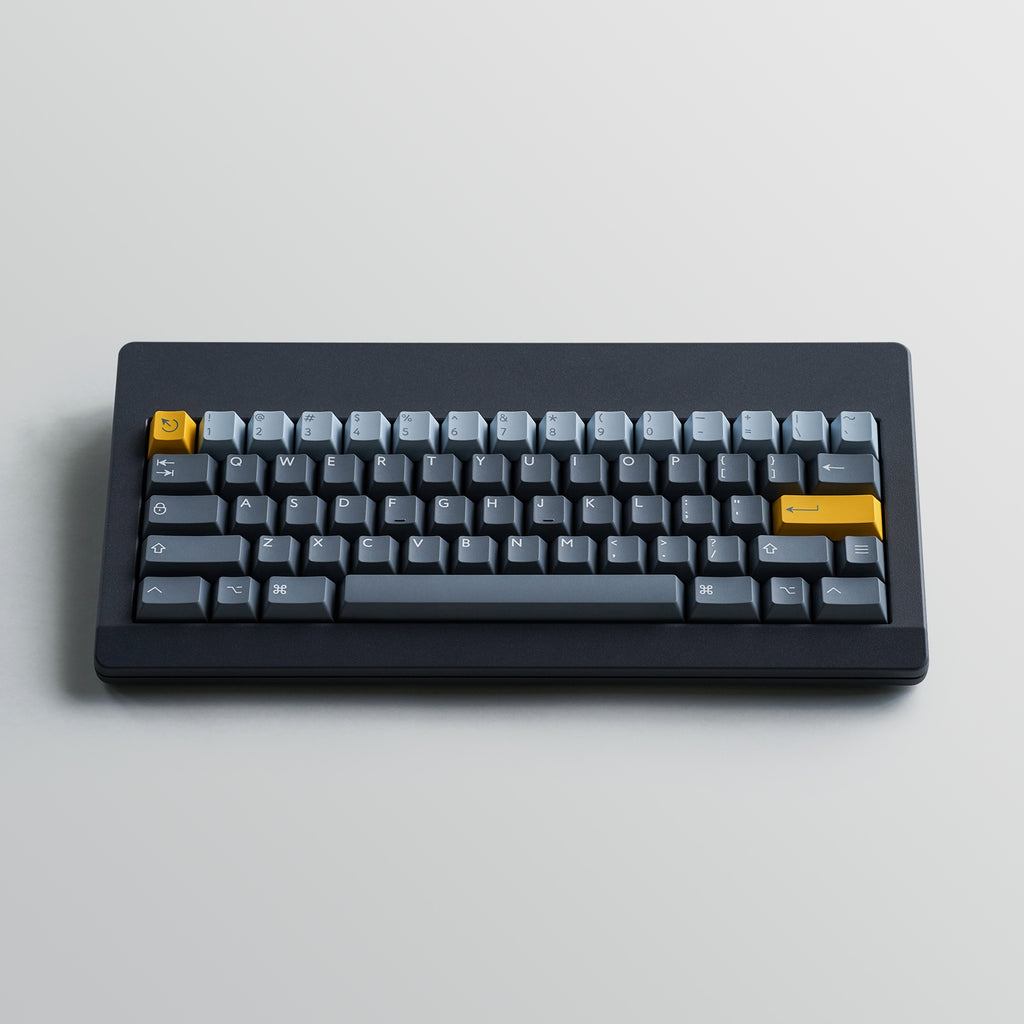

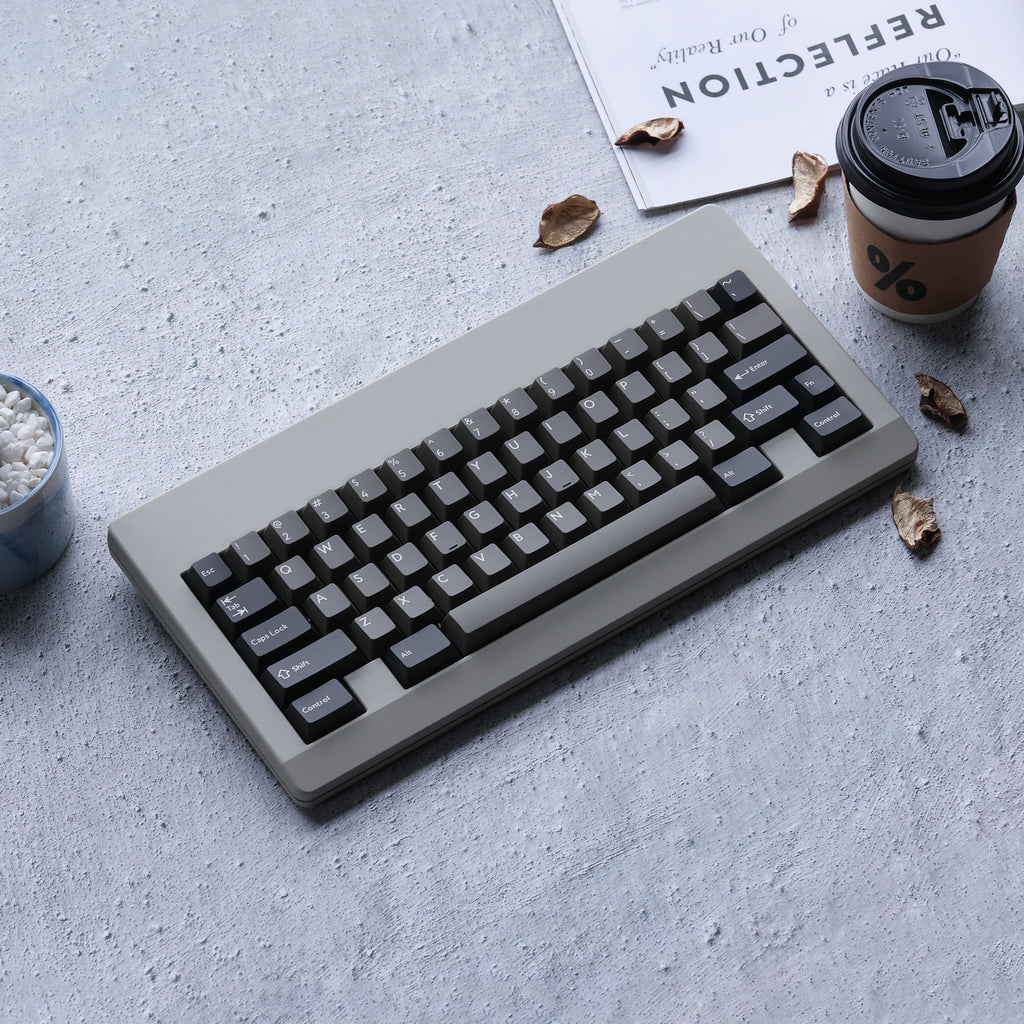

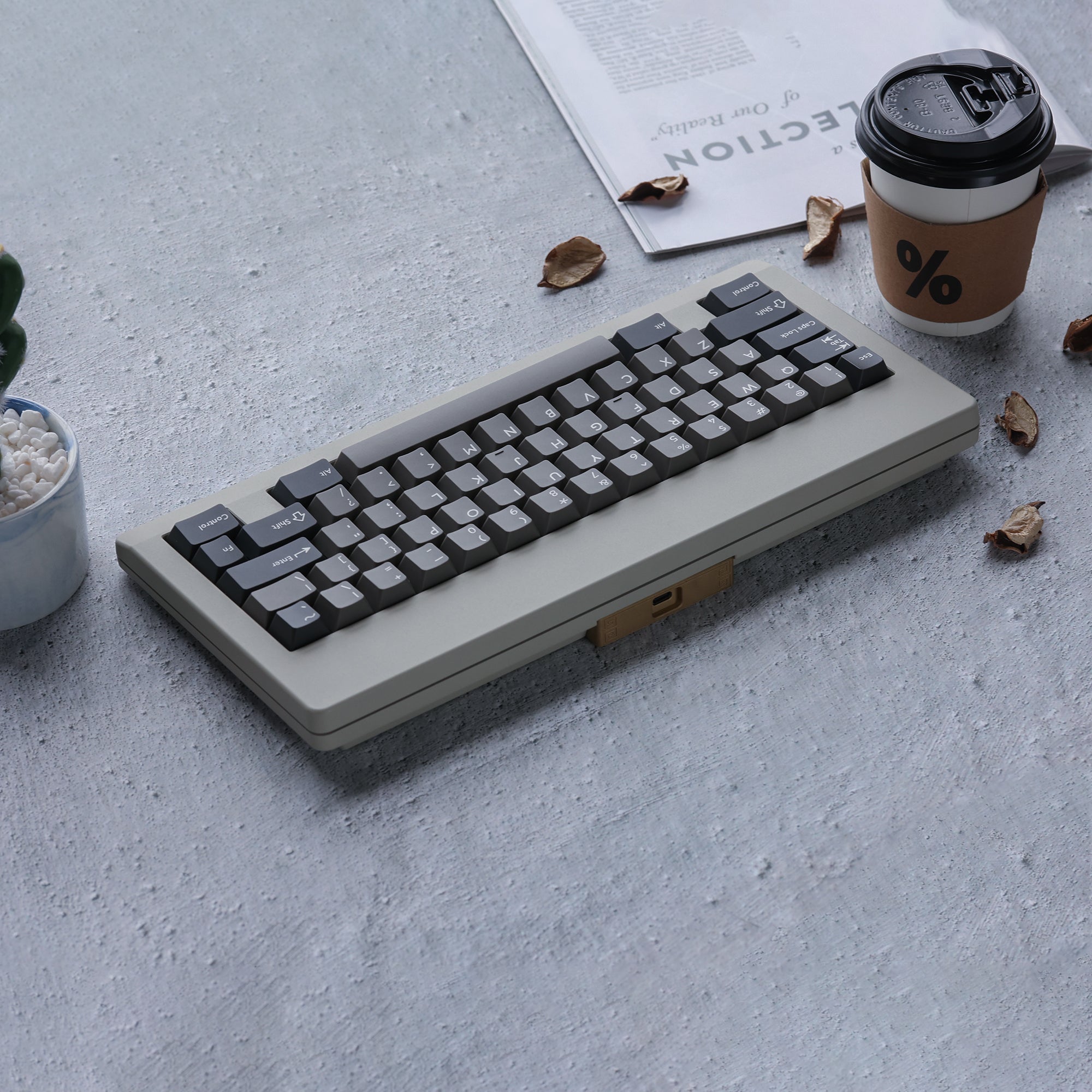

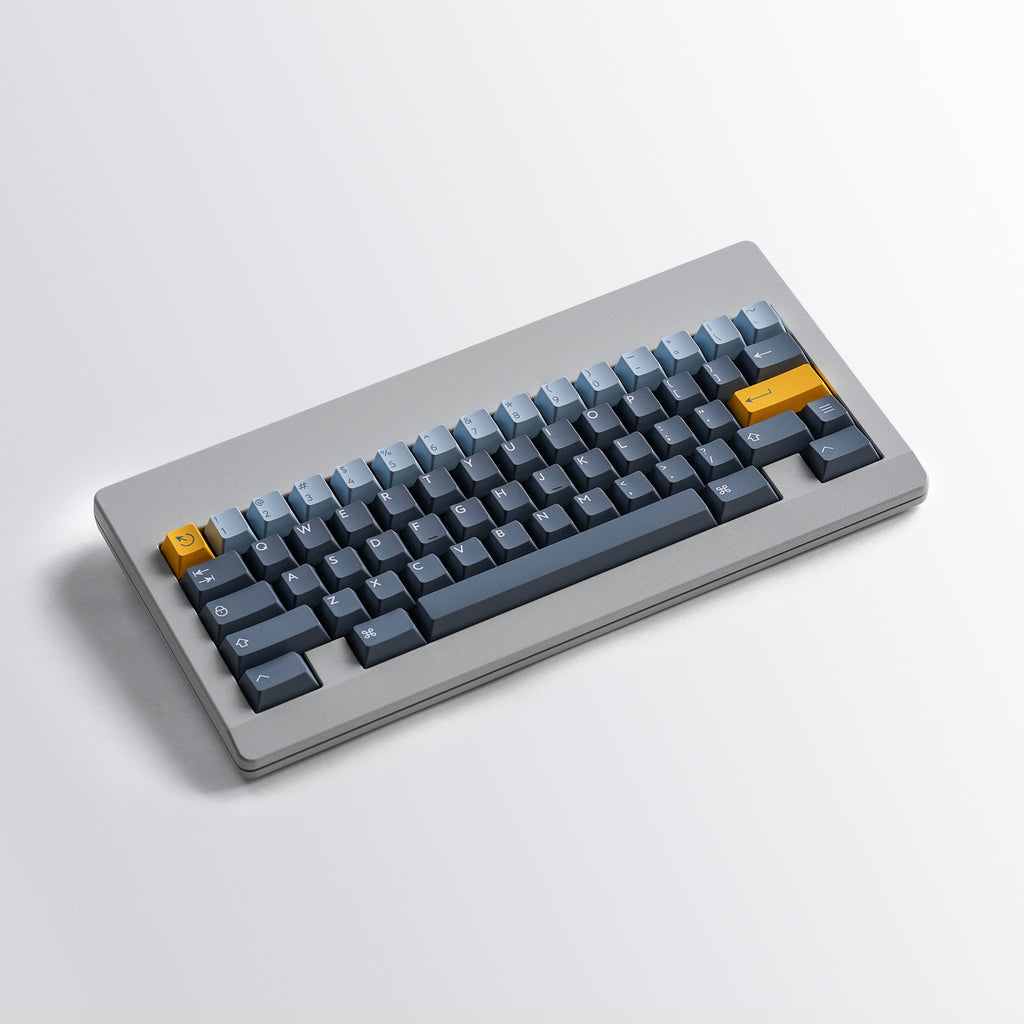

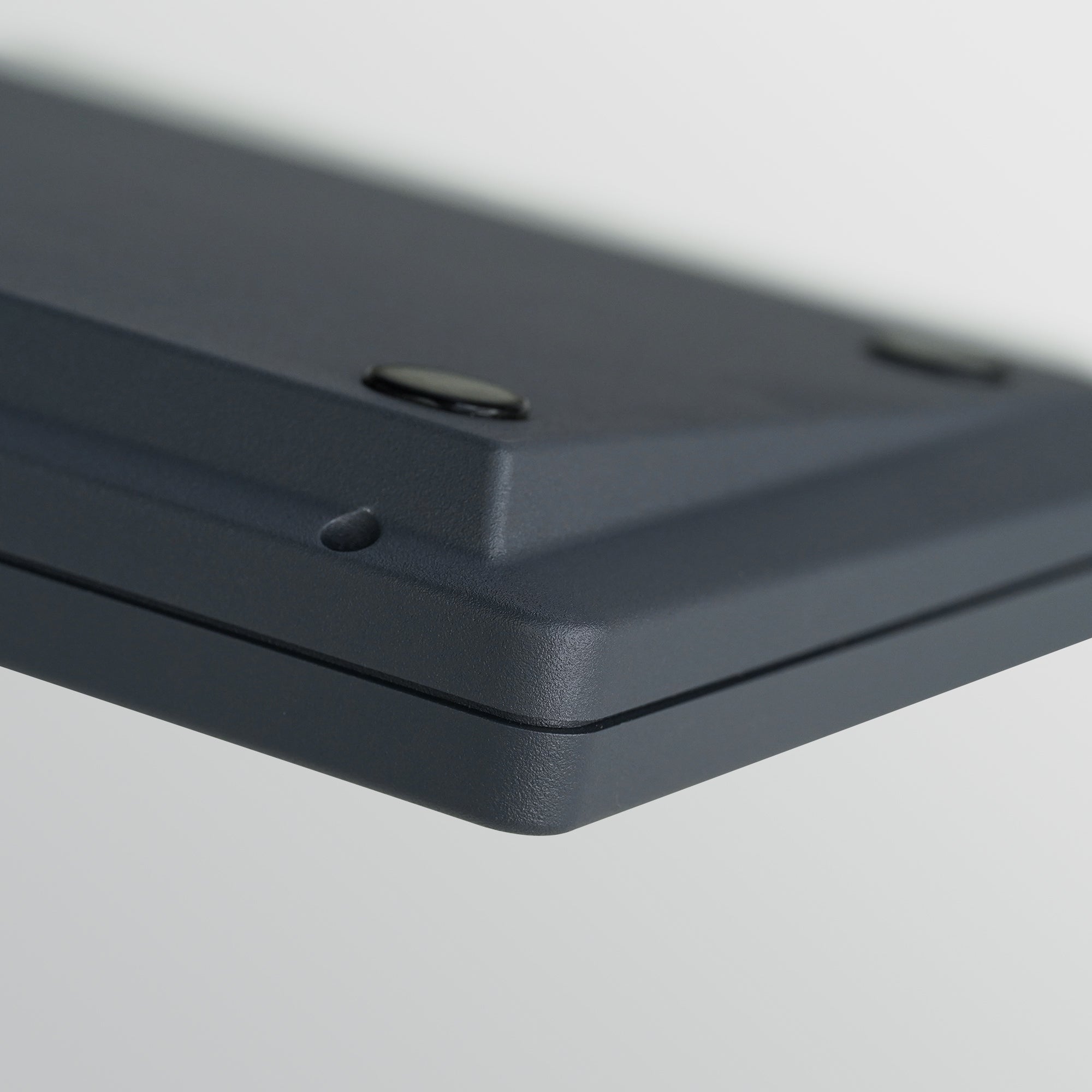

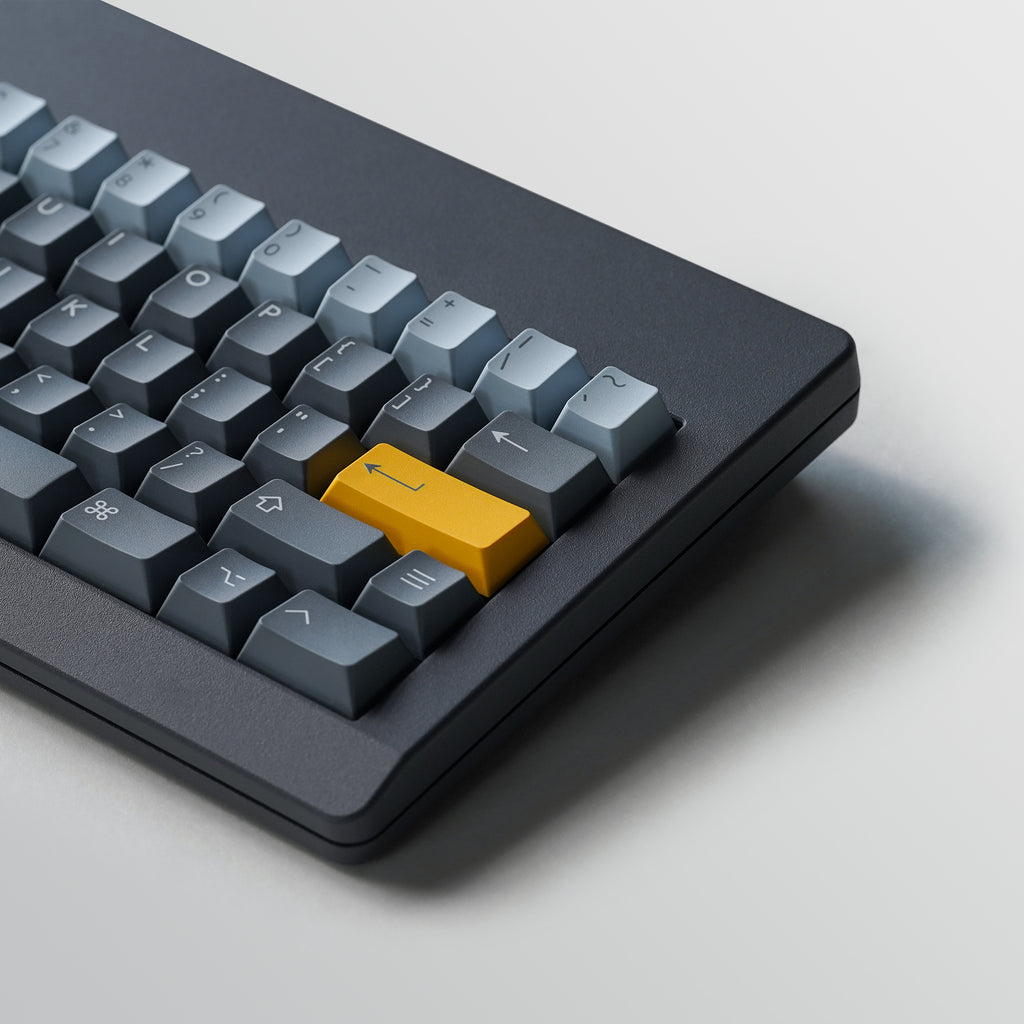

Prototype keyboard shot, not rendering.


Detail

Specifications

  • Structure: Top mount/Gasket mount
  • Prototype reference: G80-3077SAU, retro design
  • Programmable: QMK firmware/VIA supports
  • Plate: Polycarbonate
  • PCB: Flex cut, 1.2mm thickness, without Per-key RGB
  • Layout: WKL/WK/HHKB
  • Weight: Brass, surface sandblasted process
  • PCB: Hot-swap
  • Weight: around 1.70 kg (case+weight bar)

Include

  • Blasted coating aluminum case x1
  • Flexible cutting and hot swap PCB x1
  • Plate x2 (Polycarbonate and FR4)
  • Silicone socks set x1
  • PCB foam x1
  • Daughterboard x1
  • Bottom case foam x1
  • EVA Switch pads x1
  • Rubber feet and screws
  • Stabilizers shims x1
  • Cherry screw-in stabilizers

Update

  • For pre-sale orders placed before December 2022, most accessories have arrived at the warehouse. Other orders are still in production.(2023-02-06)
  • Start the shipment of WK Layout Kit on Jan 11, 2023 (2023-01-10)
  • The production of the WK case is about to be completed, and the production of the PCB is expected to be completed in early December, 2022. (2022-11-21)
  • Already in production, pre-orders are expected on Black Friday 2022.

Dimensions

FAQ

How many switches do I need to buy?

At least 65 switches need to be bought.

What is the shipping date?

Estimated shipping date of WK layout: Mid-January, 2023.

Please pay attention to our update page. The estimated delivery time of the pre-sale part of WKL and HHKB will be in Q1 2023.

Which Plate should I use?

Usually FR4 is harder than Polycarbonate. If you like stronger rebound feedback, you can choose Fr4. If you like softer rebound feedback, you can choose Polycarbonate.

Should I buy a 3pin switch or a 5pin switch?

Both are supported, but you need to pay attention, there are 2 switches in the ISO position that require a 3Pin switch. If you're a 5pin switch, you'll need to clip your switch pin to mount it.
Please see the picture below:
