Phase One 65 Gasket Mount Mechanical Keyboard DIY KIT

⌨️Keyboard Discontinued

There are 82 people on the waiting list, click the button below to join! We will notify you by email when the product available

Notify me

Congratulations! You are now on the waiting list, please check your inbox for our confirmation email!

Register Account

Sign In

SKU: ZH3646
by KBDfans


  • Selling extra in stock (2022-04-28)
  • Finish the shipment of most orders (2022-04-11)
  • Arranging the shipment (2022-03-20)
  • Still waiting for other accessories, will arrange the shipment after all items prepared (2022-03-07)
  • Ship to the warehouse batch by batch, Preparing the shipment (2022-02-14)
  • In Production (2021-12-08)
  • Queuing for production(2021-11-16)
  • Group Buy Date: From Sept 24th to October 24th, 2021



  1. If you choose a half plate, the Hot-swap PCB will not fit with the 3-pin switches perfectly, as some 3-pin switches might be easily pulled out when you are pulling out the keycaps.
  2. Both Hot-swap and Solder PCB don't come with Per-key RGB or RGB underglow.
  3. Recognized by VIA after loading the Json file
  4. The slight light leakage of RGB Badge and LED indicators in the engineering prototype will be fixed in production.


Inspiration of design:

"Phase one 65" is the idea born from the keycap set "Less, but better".

The Inspiration for this keyboard is from the well-known "Phase 1" alarm clock, which was designed by German industrial designer Dieter Rams.

The visual element of the exterior on this keyboard continued with the "Phase 1" alarm clock. We hope it could represent the design language well of humbleness and self-restriction from Dieter Rams. That is the reason we continue to use the name "Phase One 65".




Assemble Service

  • Hot-swap assemble service link
  • Soldered assemble service link

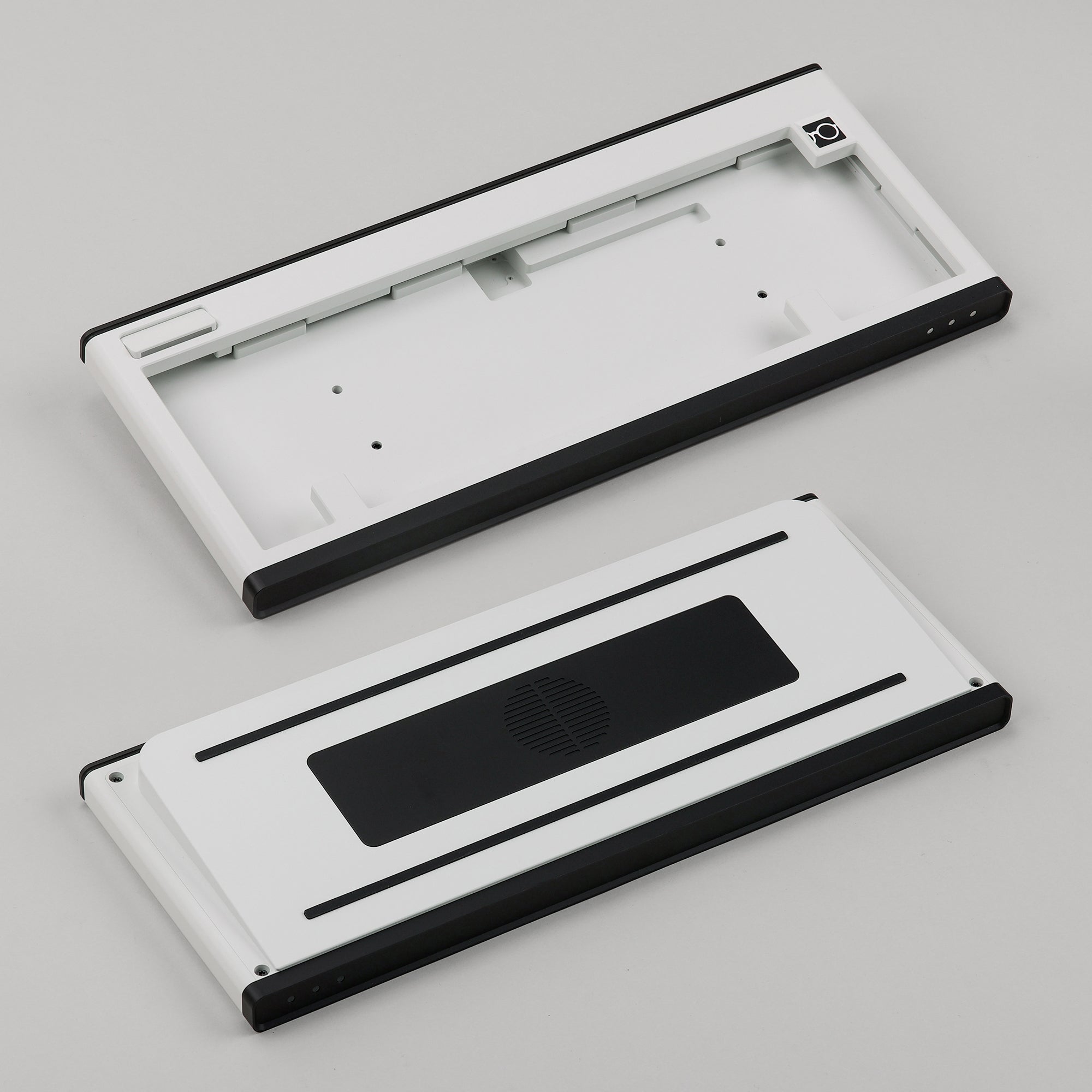

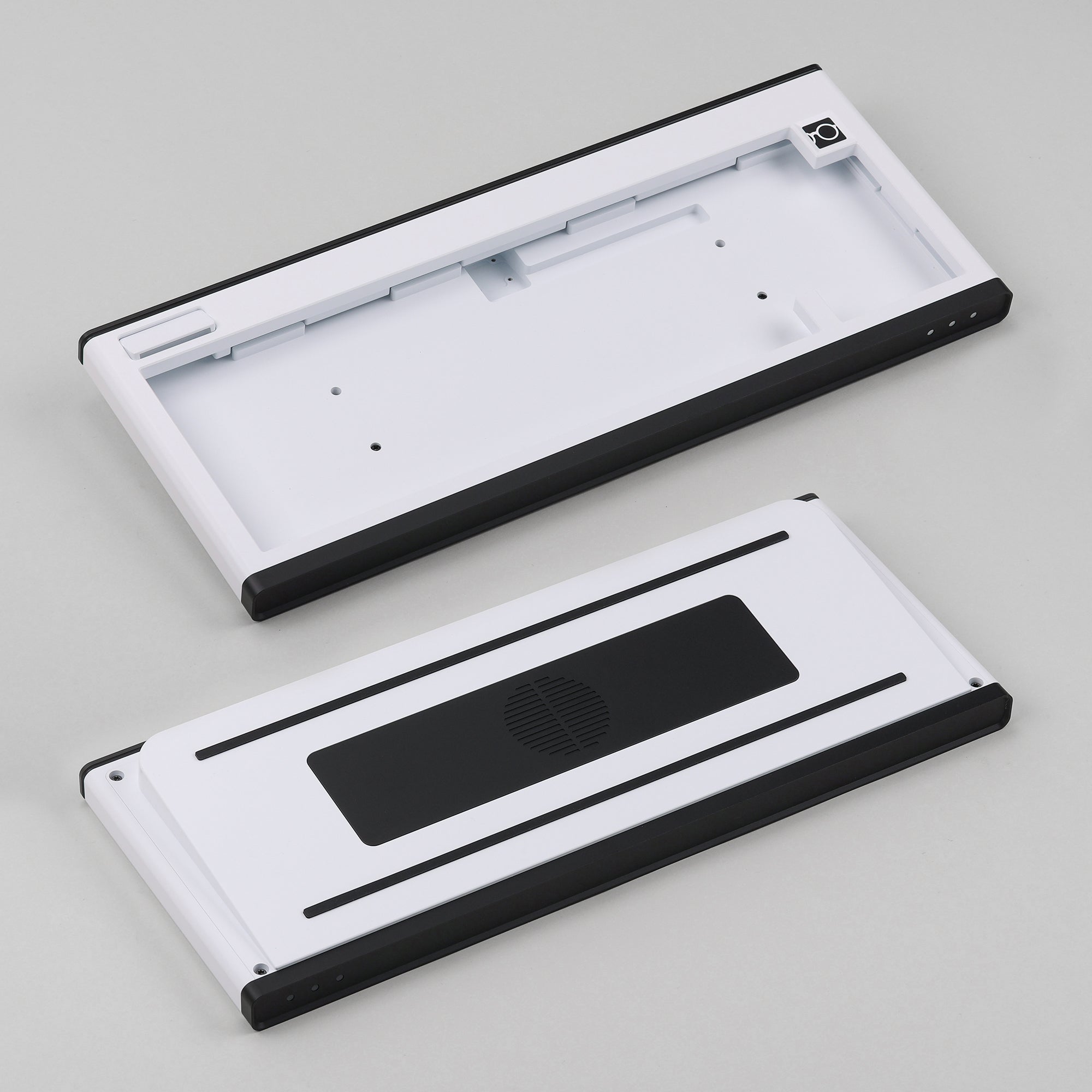

  • Case: Top aluminum Bottom aluminum Case ( Including aluminum weight bar)
  • Layout: WK/ WKL
  • Case color: Grey, E-white, E-Beige(refer to GMK L9)
  • Frontpiece, Backpiece: Black ( Without the text "Less but better")
  • Wired version PCB: Solder version and Hot-swap version;
  • The solder version supports multiple layouts, the hot-swap version only supports one. (Note: The RGB in the upper left corner can be controlled by VIA software or shortcut keys. The bottom right corner is the indicator light. From left to right, the first light is num lock, the second is caps lock, and the third is always lighting on.)
  • Plate: Brass, Aluminum, PC, FR4, Half Brass, Half aluminum, Half PC, Half FR4
  • Blocker Badge: E-white/ E-Beige Case with White Glasses, Grey Case with Orange Glasses
  • RGB Badge: Same as the case color
  • Structure: Gasket mount
  • Typing angle: 7°
  • Interface: USB-C
  • Foam: Case foam and PCB foam (PORON material)
  • KBDfans DYBOOX PC Screw-in Stabilizers 60 set: 2U x 4,6.25U x1, extra 7U wire x1, Stabilizers foam sticker, screws, and washers
  • Weight: Around 1.7 kg
  • Designer: Openkey Design

Include (Only selected Case/ PCB, Plate, Layout options)

  • Aluminum case x1
  • Aluminum weight bar x1
  • PCB x1
  • RGB Badge x1
  • Blocker Badge x1
  • Backpiece,Frontpiece x1
  • Plate x1
  • Case foam x1
  • PCB foam x1
  • Switch pads x1
  • Screw-in stabilizers 60 set x1
  • Gaskets x1 set
  • Screws x1 set
  • Rubber feet x1 set

Extra Accessories

  • PCB link
  • RGB Badge link
  • Blocker Badge link
  • Backpiece- with the text "Less but better" link
  • Case and PCB foams link
  • Plate link

Solder PCB Layout

WK Layout

WKL Layout
