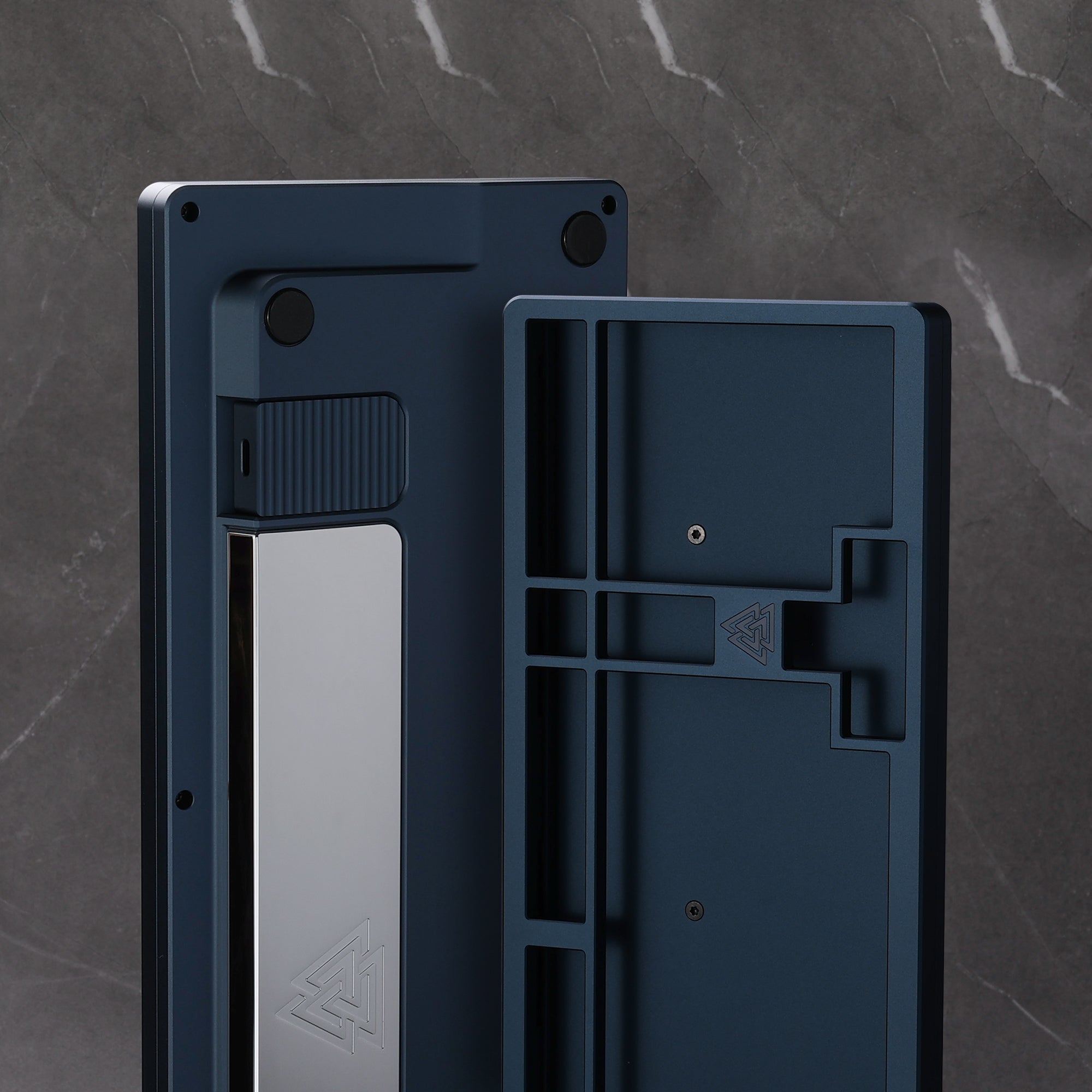

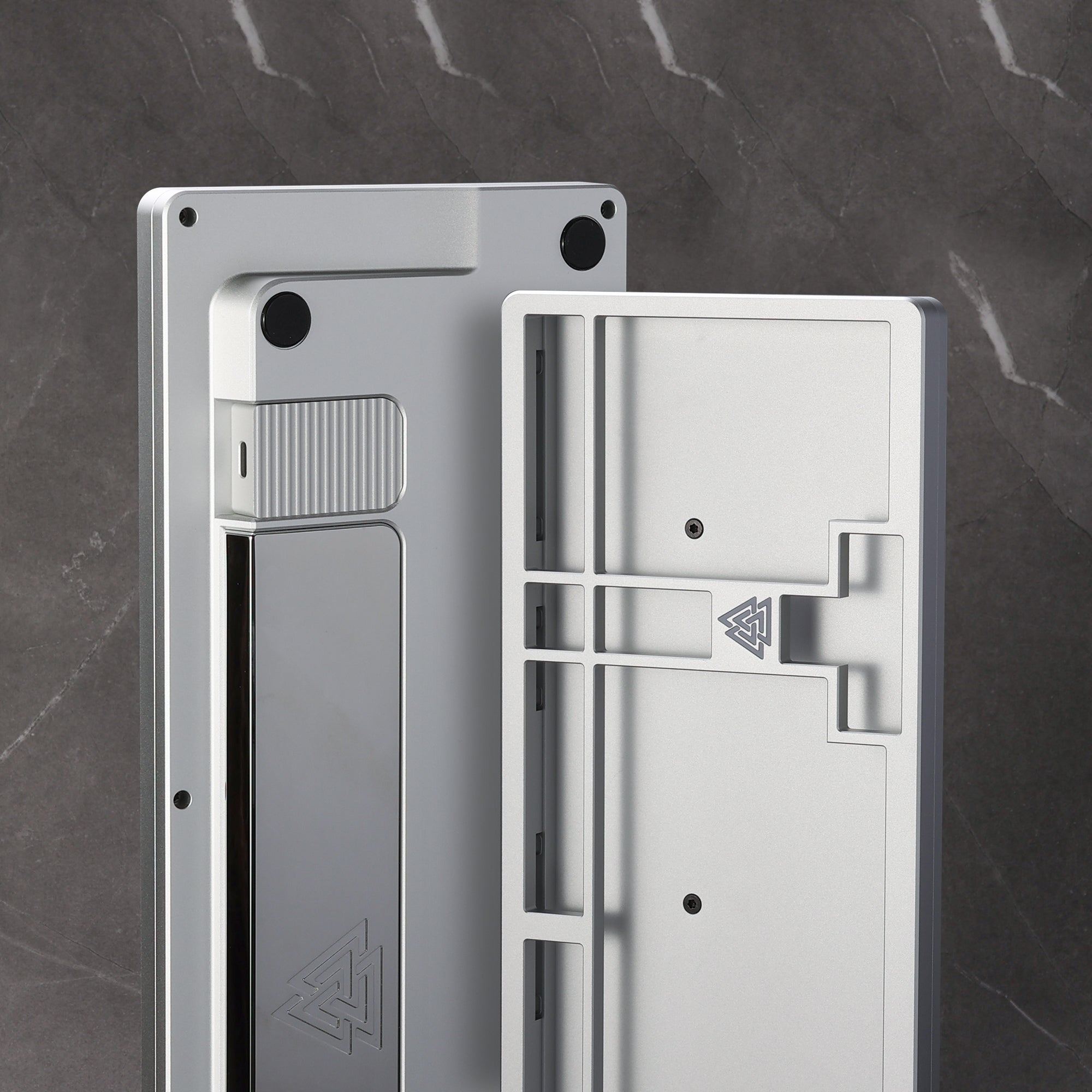

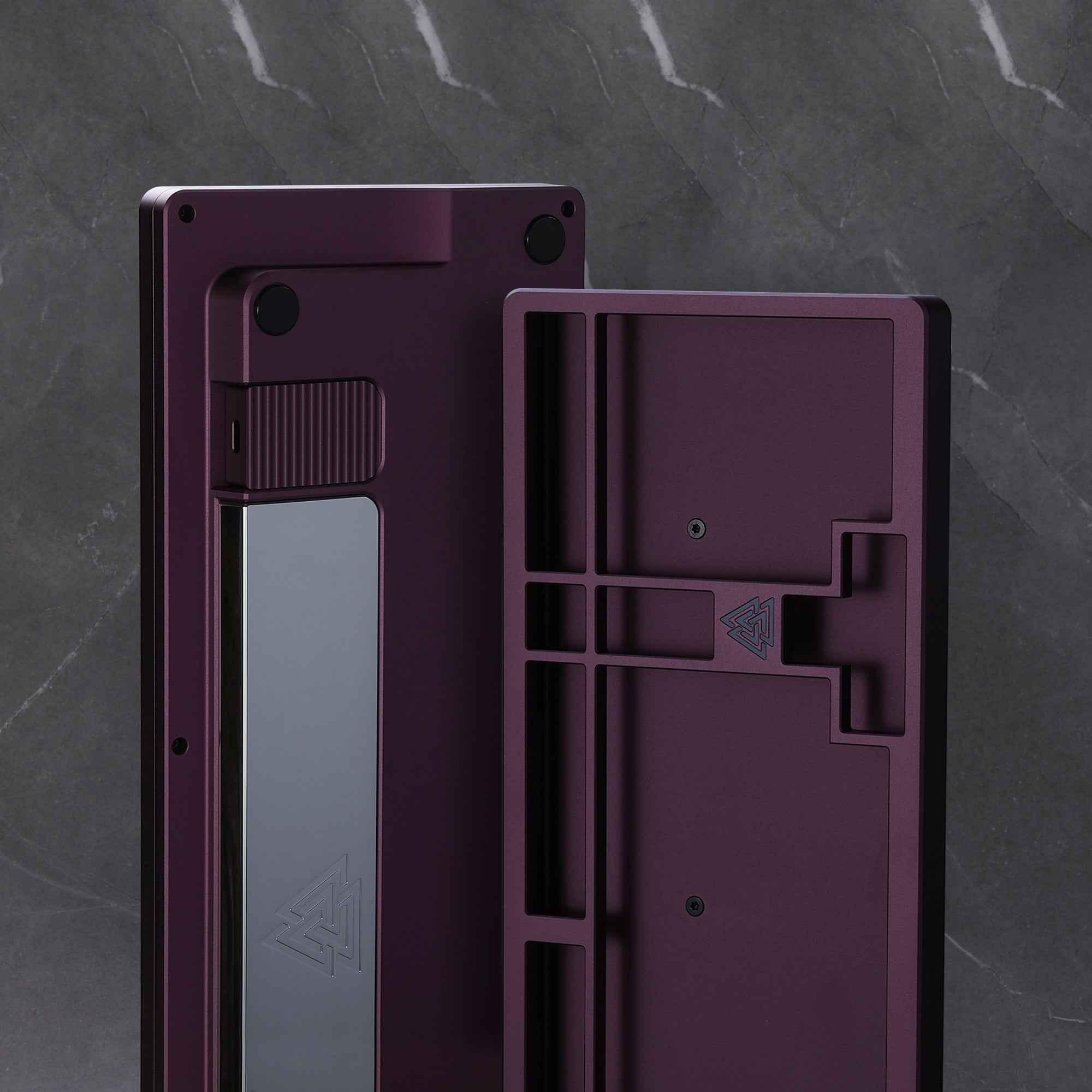

- Case: Top aluminum, bottom aluminum
- Case color: E-white
- Wired version PCB: Hot-swap version, Flex cut, without RGB effect, only RGB for Badge, 1.2mm thickness (Notes: Supports VIA and VIAL. It is recommended to use VIA as VIAL's firmware is not official), USB-C interface
- Plate: Polycarbonate (Flex cut)
- Structure: Leaf spring mount; 100% layout

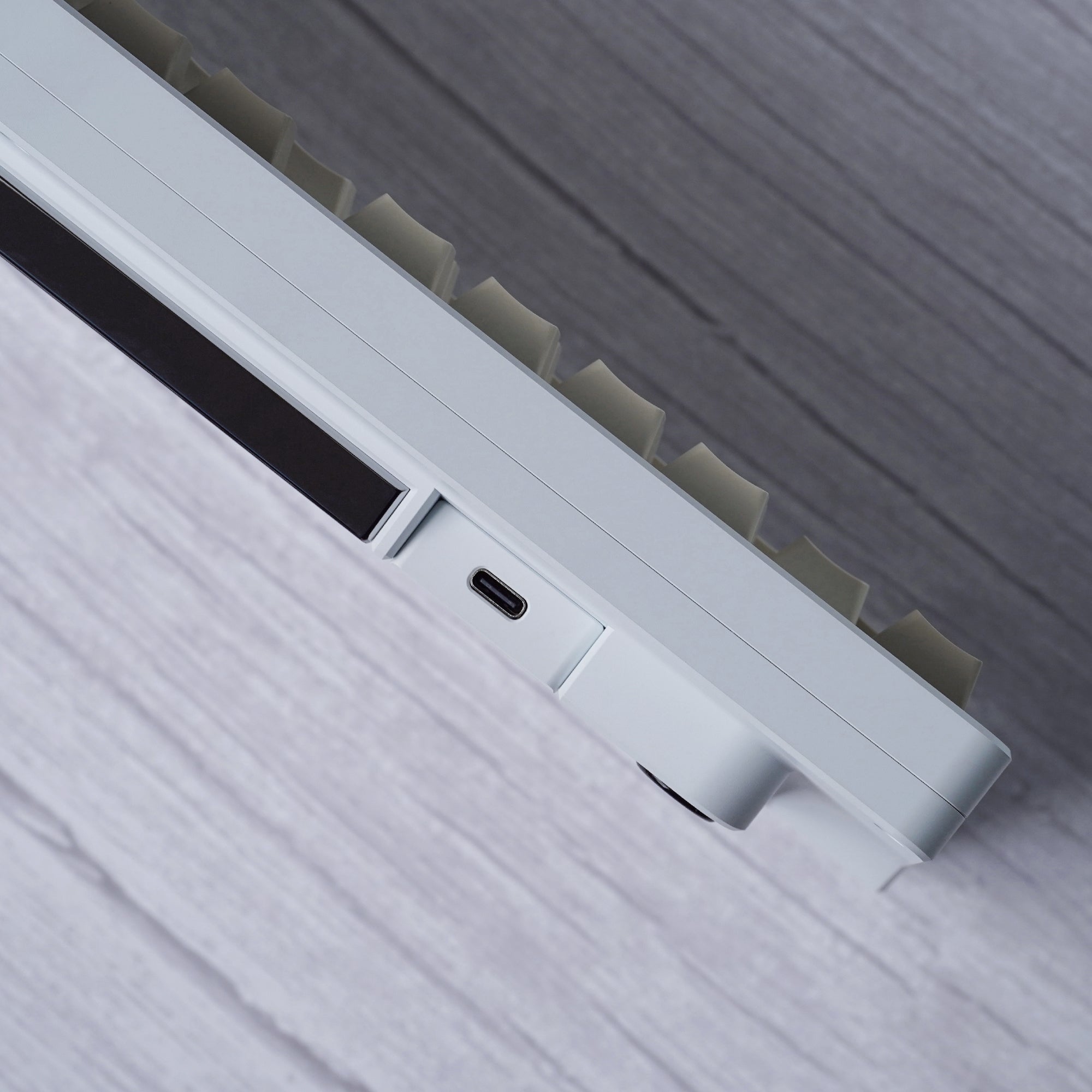

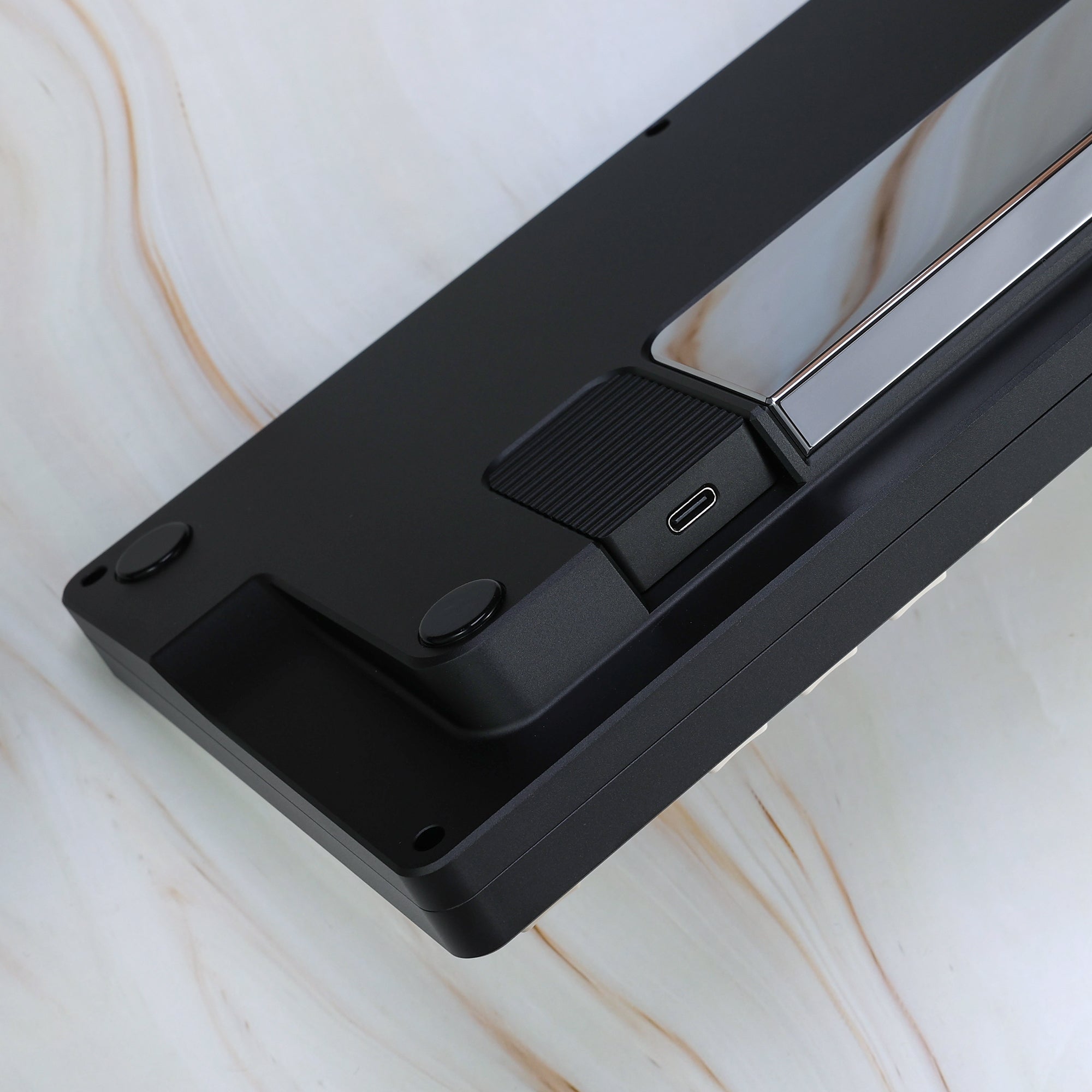

- USB-Port Protector: Aluminum

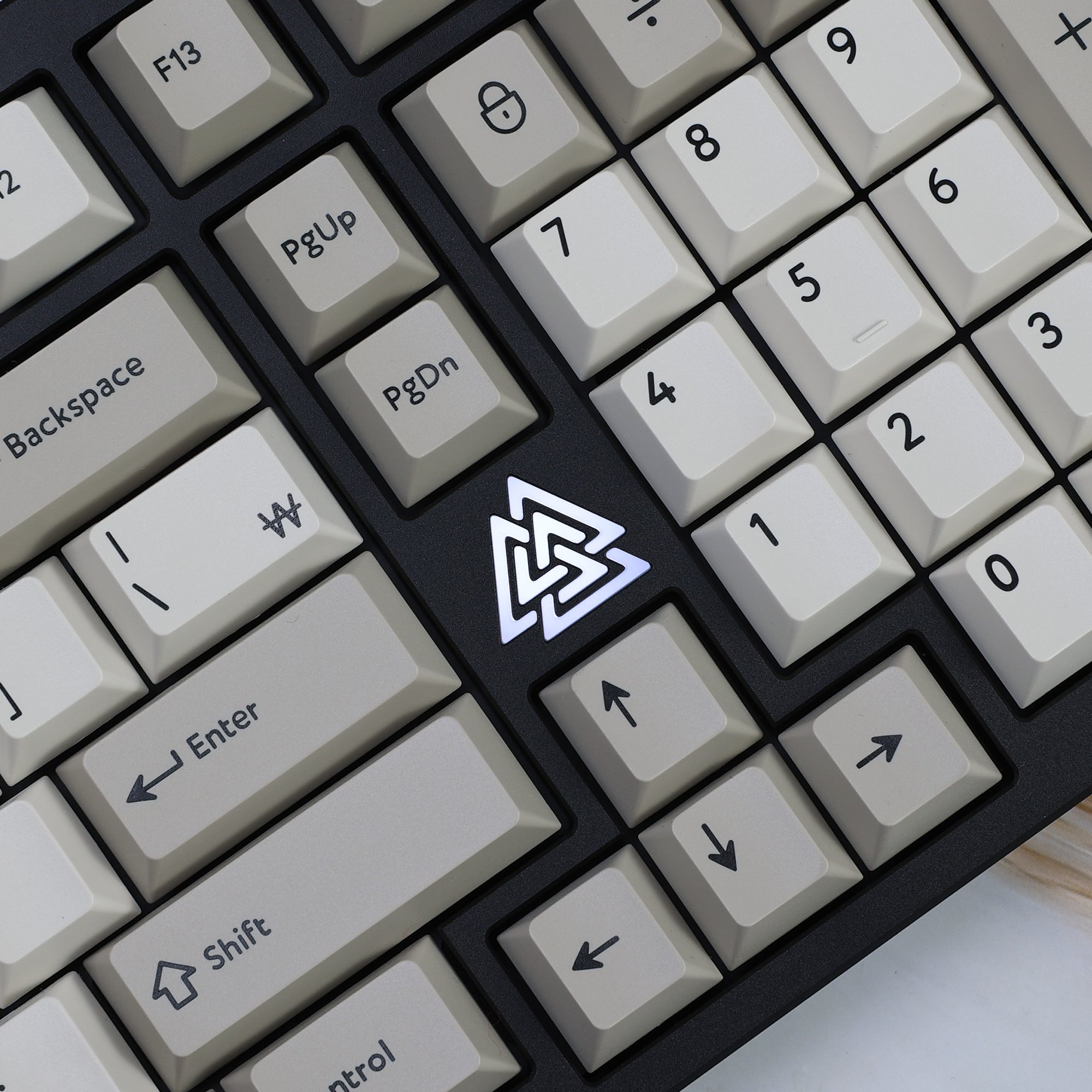

- Translucent badge: Acrylic sandblasting with RGB diffuser
- Foams: Case foam, PCB foam, Switch pad (poron material)

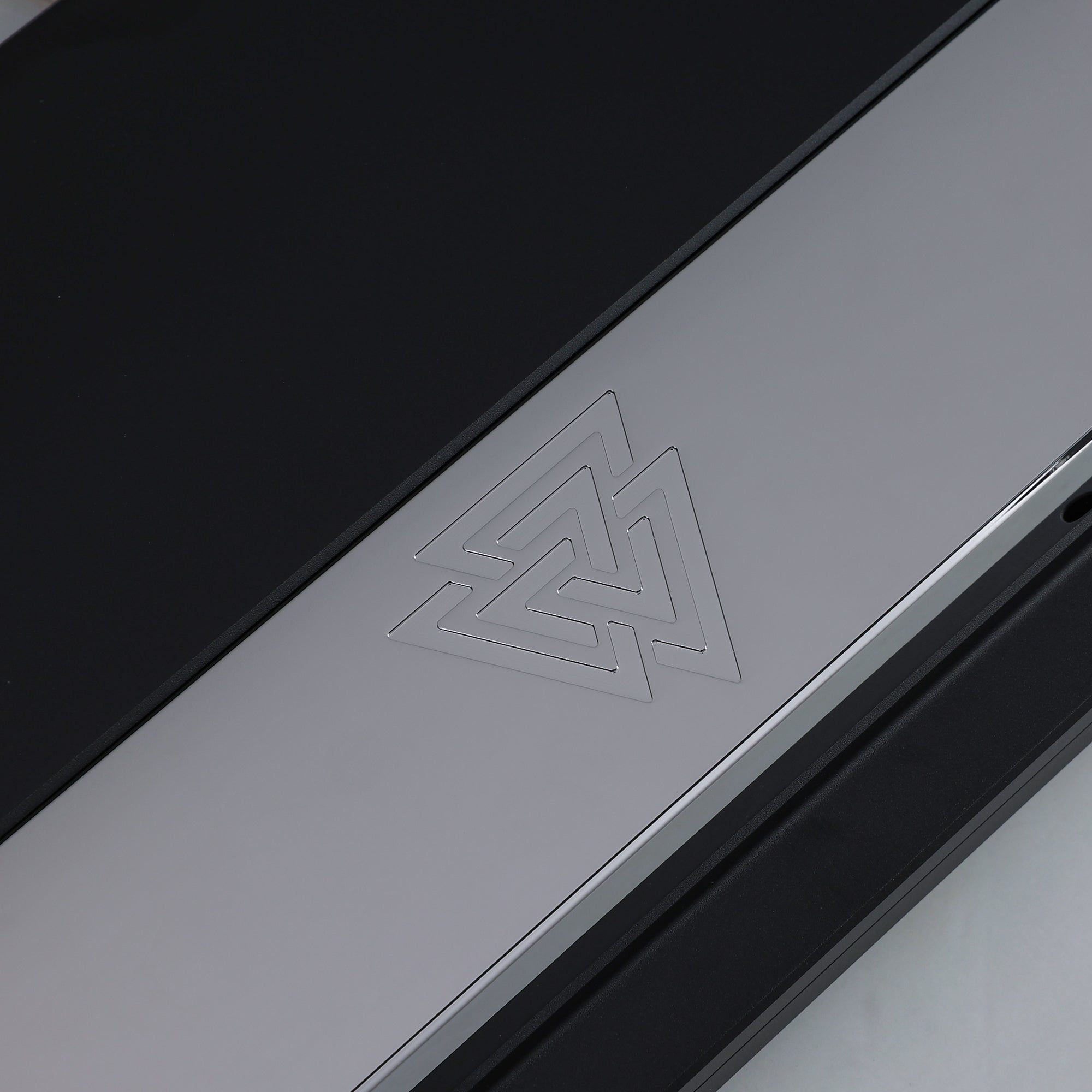

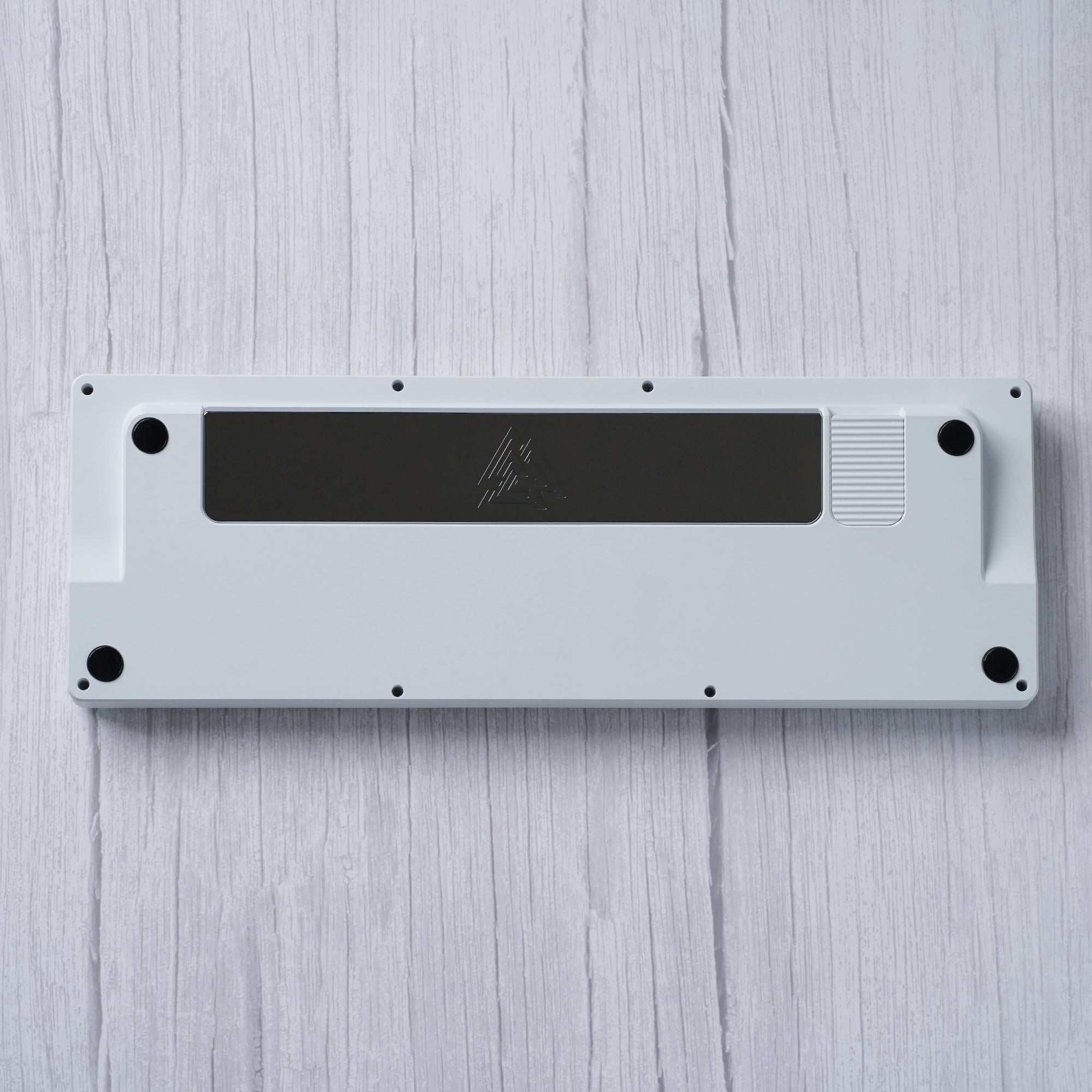

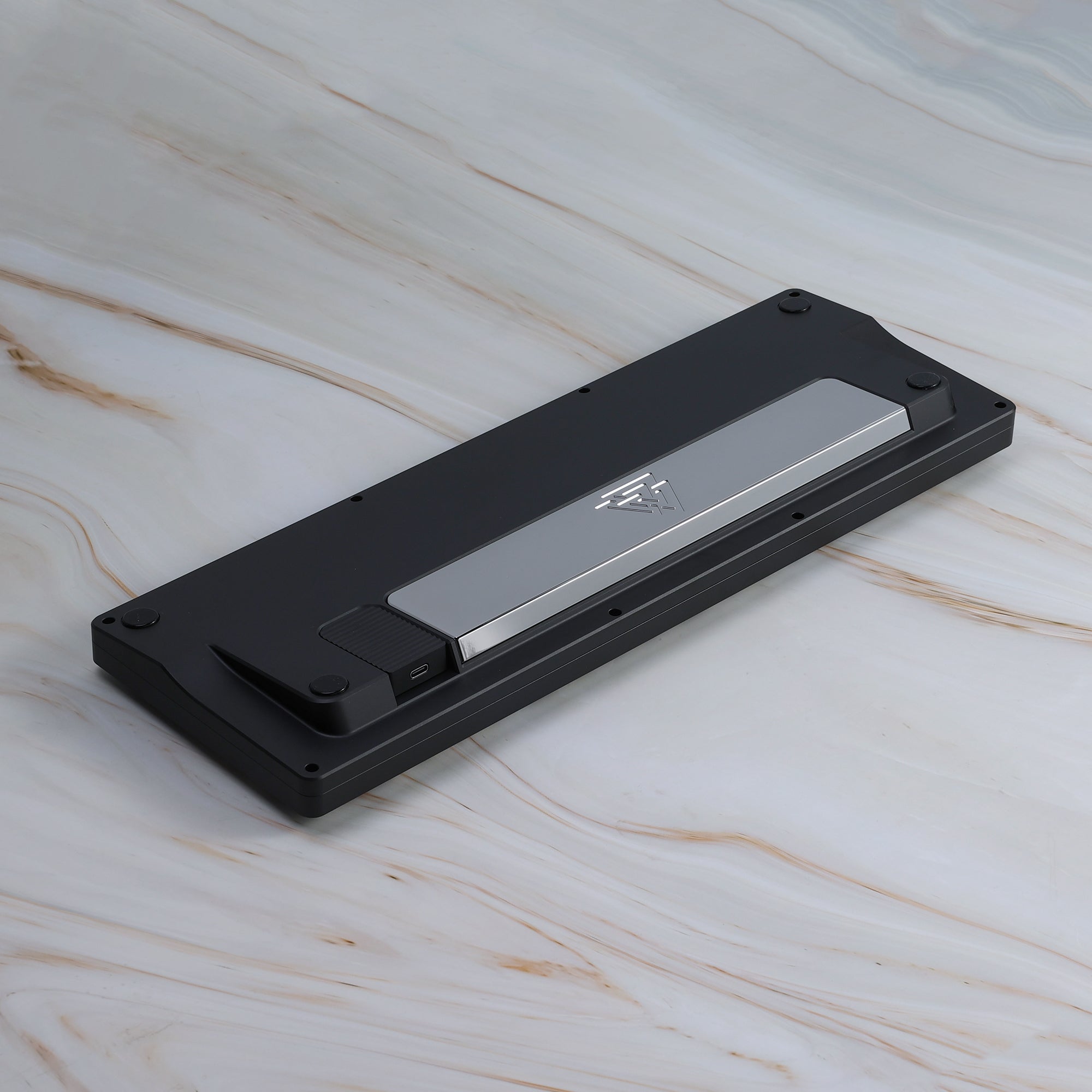

- Weight Bar: PVD Alu mirrored silver

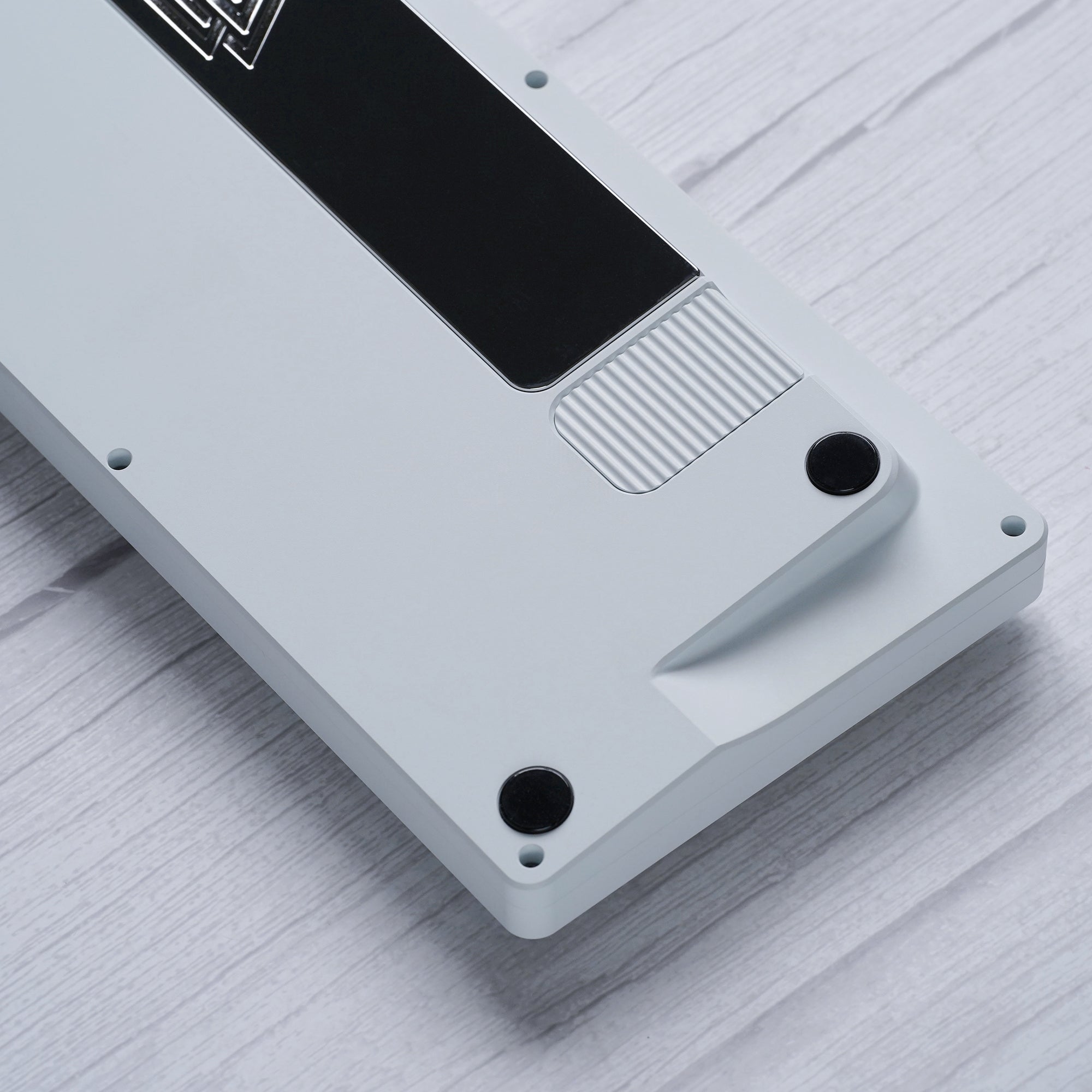

- Rubber feet: Round rubber feet
- Typing angle: 7°
- Weight: ~ 2.06kg (after built)
- Designer: KBDfans Wei

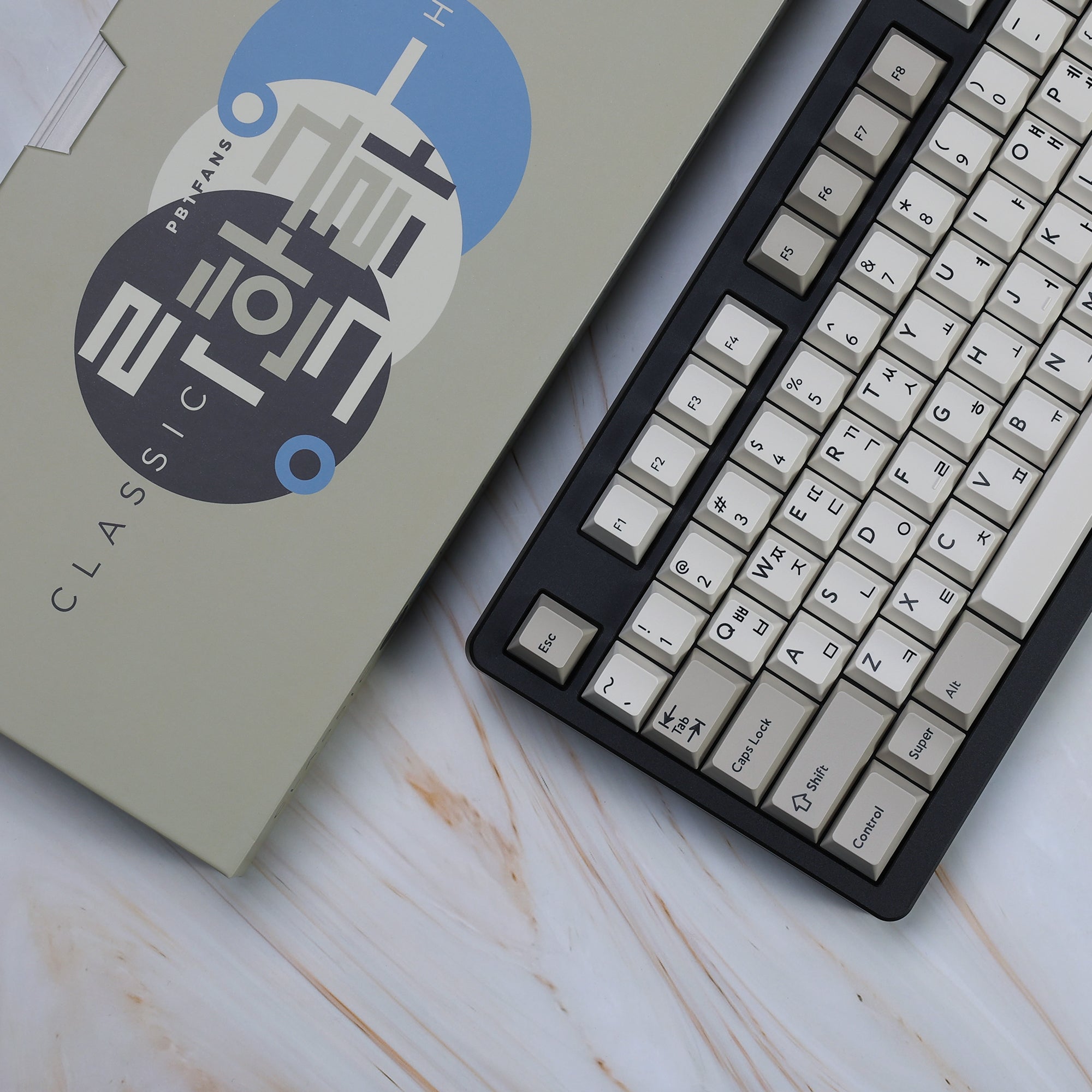

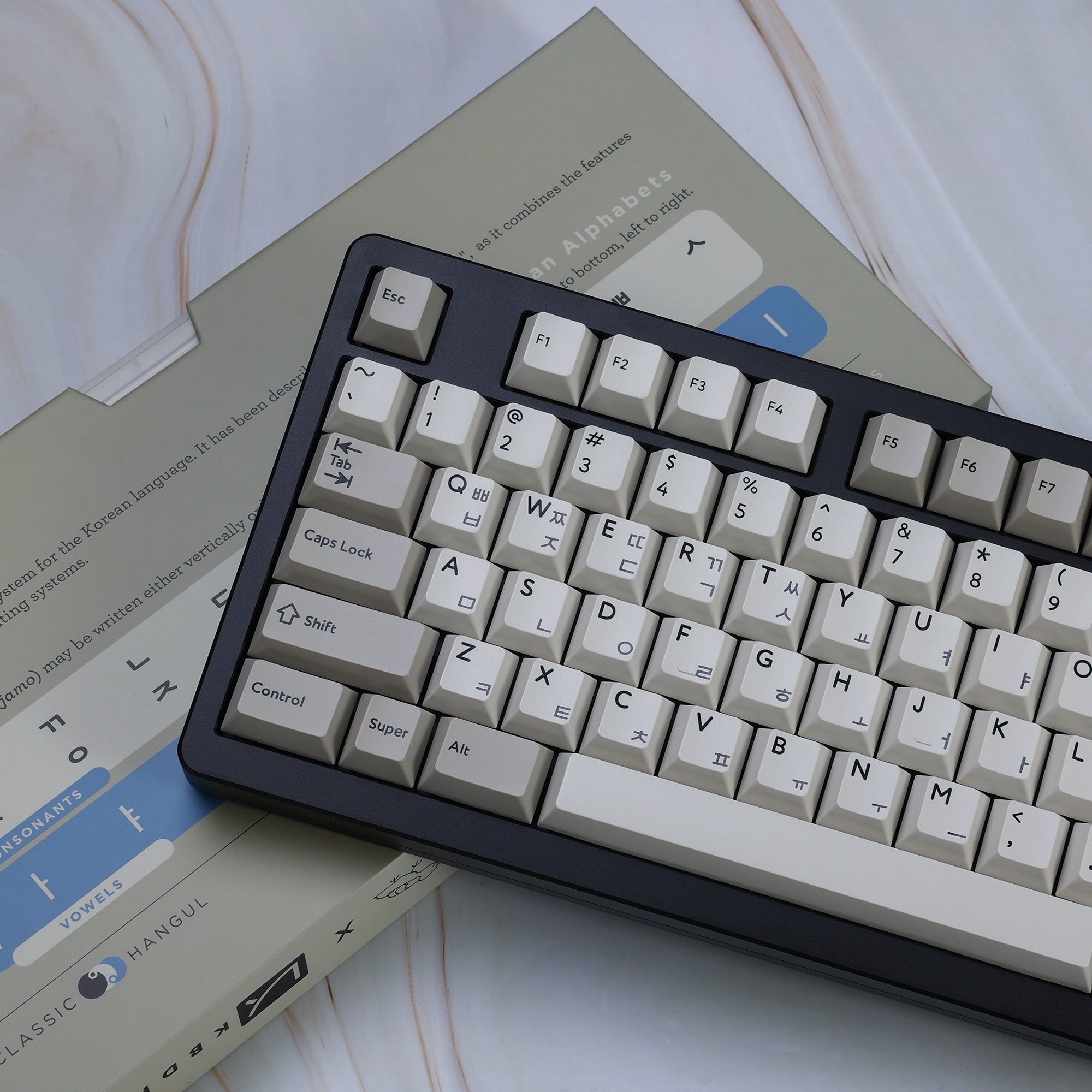

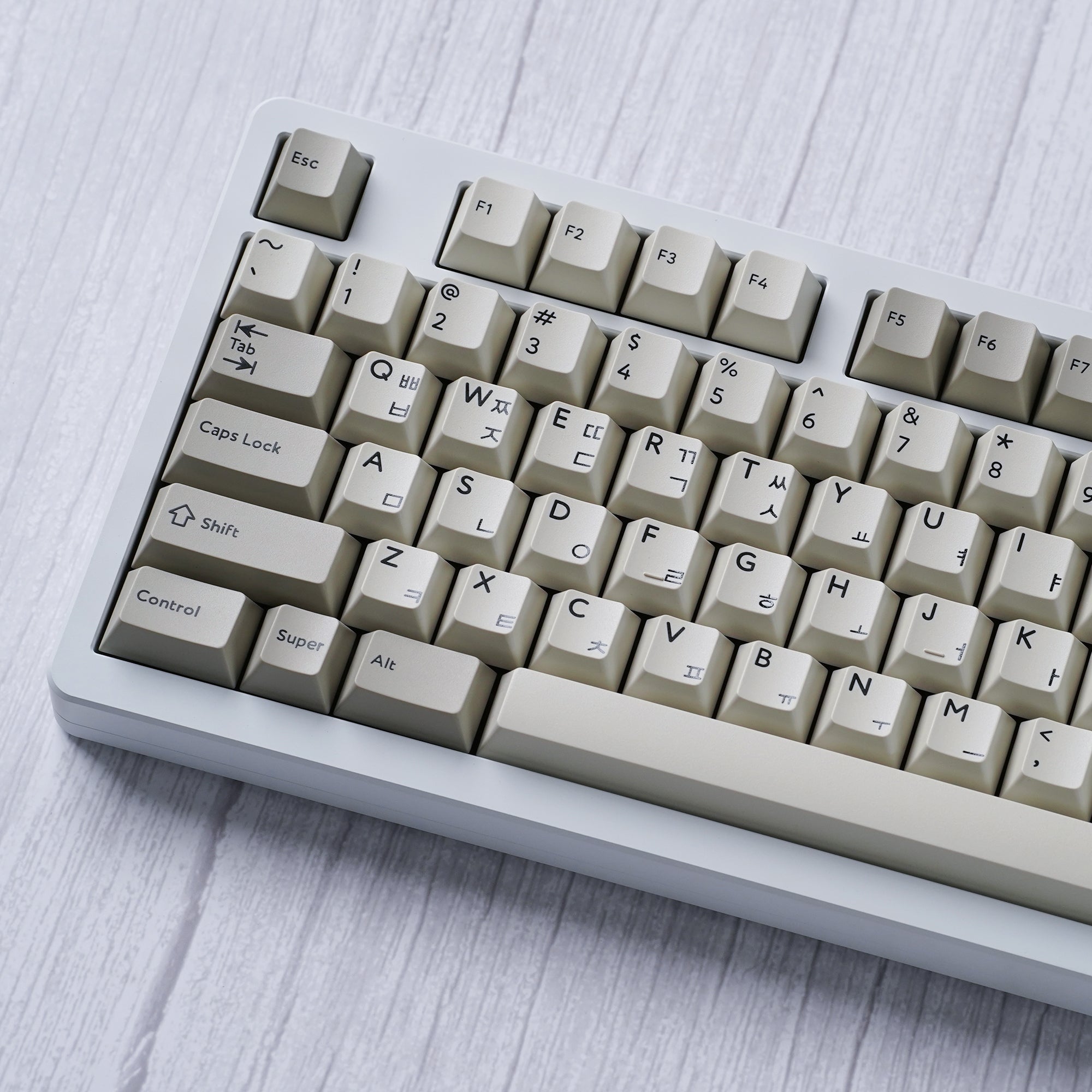

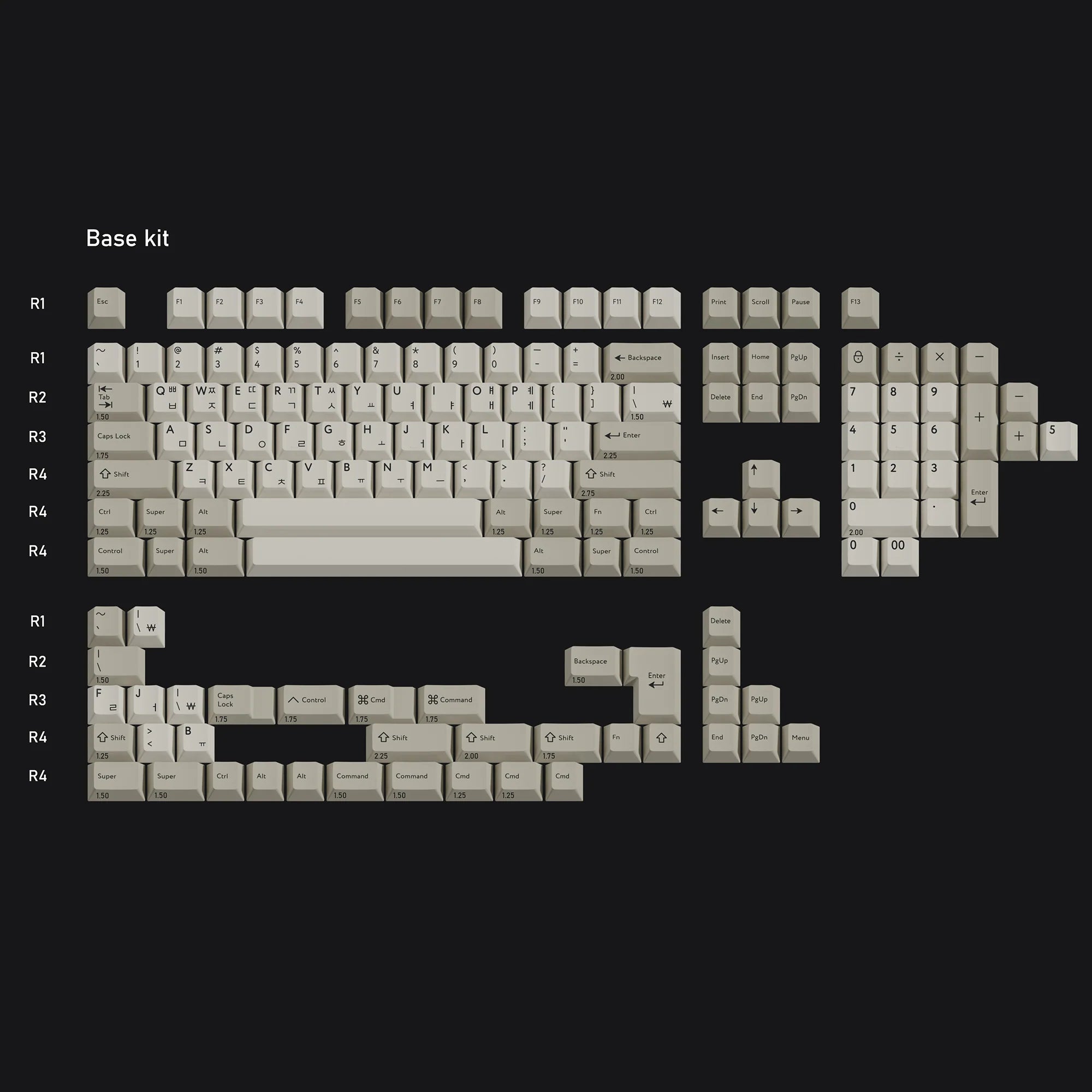

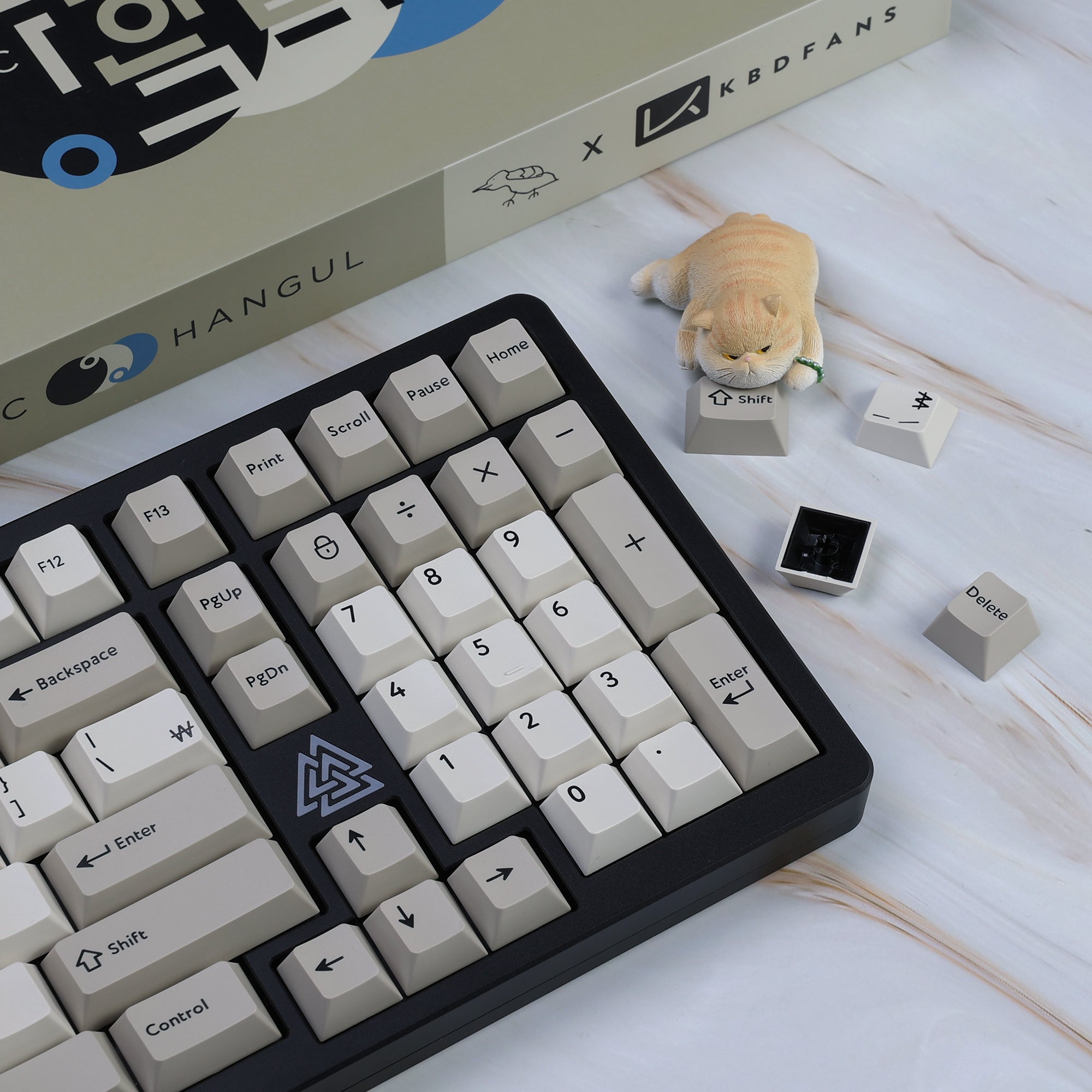

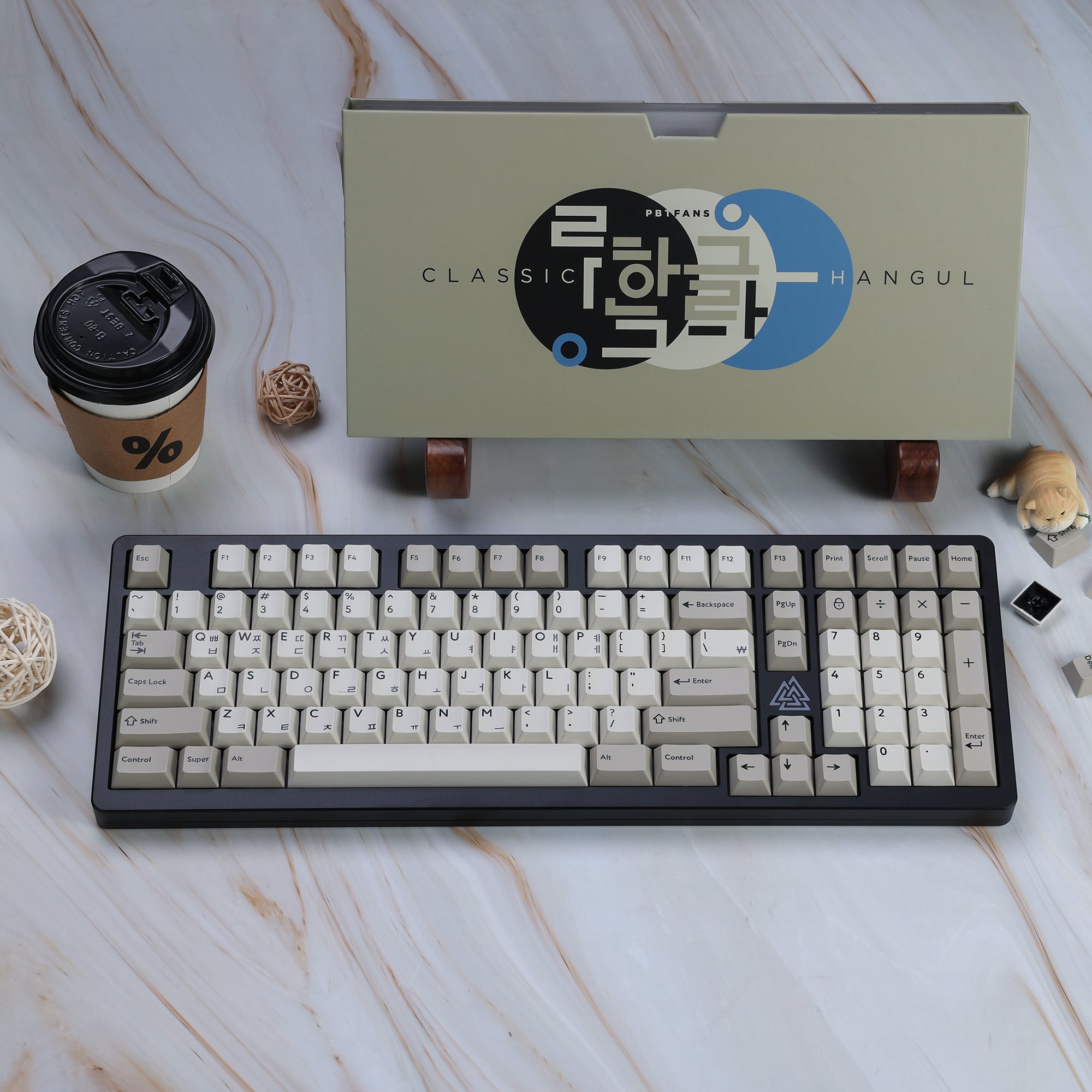

- Keycaps: PBTfans Classic hangul - Base kit (PT12-1)
Specs
Include
- Aluminum case x1
- Aluminum weight bar x1
- Aluminum USB port protector x1
- Acrylic sandblasting badge x 1
- PCB x1
- Polycarbonate plate x1
- Case foam x1
- PCB foam x1
- Switch Pad x1 set
- Stabilizer shims x1 set
- Screw-in stabilizers x1 set
- Silicone socks x1 set
- Screws x1 set
- Rubber feet x1 set
- Base kit keycaps x1
Firmware
- Flash manual
- Odin V1 Hot-swap: kbdfans_odin_rgb_via.bin odin_rgb.json
- Odin V1 Soldered: kbdfans_odin_soldered_via.bin odin_soldered.json
- Odin V2, Odin R3: kbdfans_odin V2_rgb_via.bin odin_v2.json
- This is not a software update, contact customer service if VIA does not dectect when first plugging in. Keyboards are shipped with preflashed firmware.
Layout

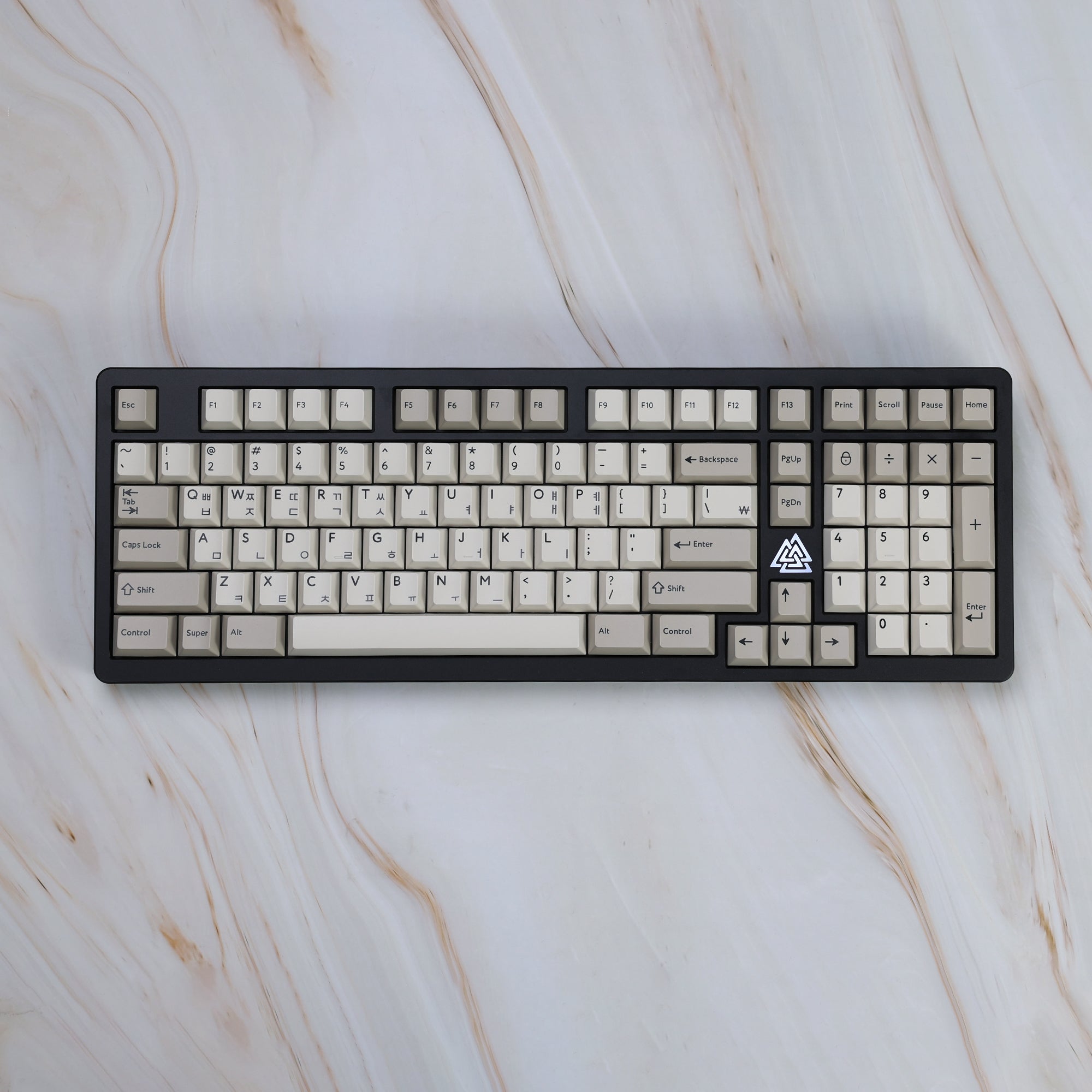

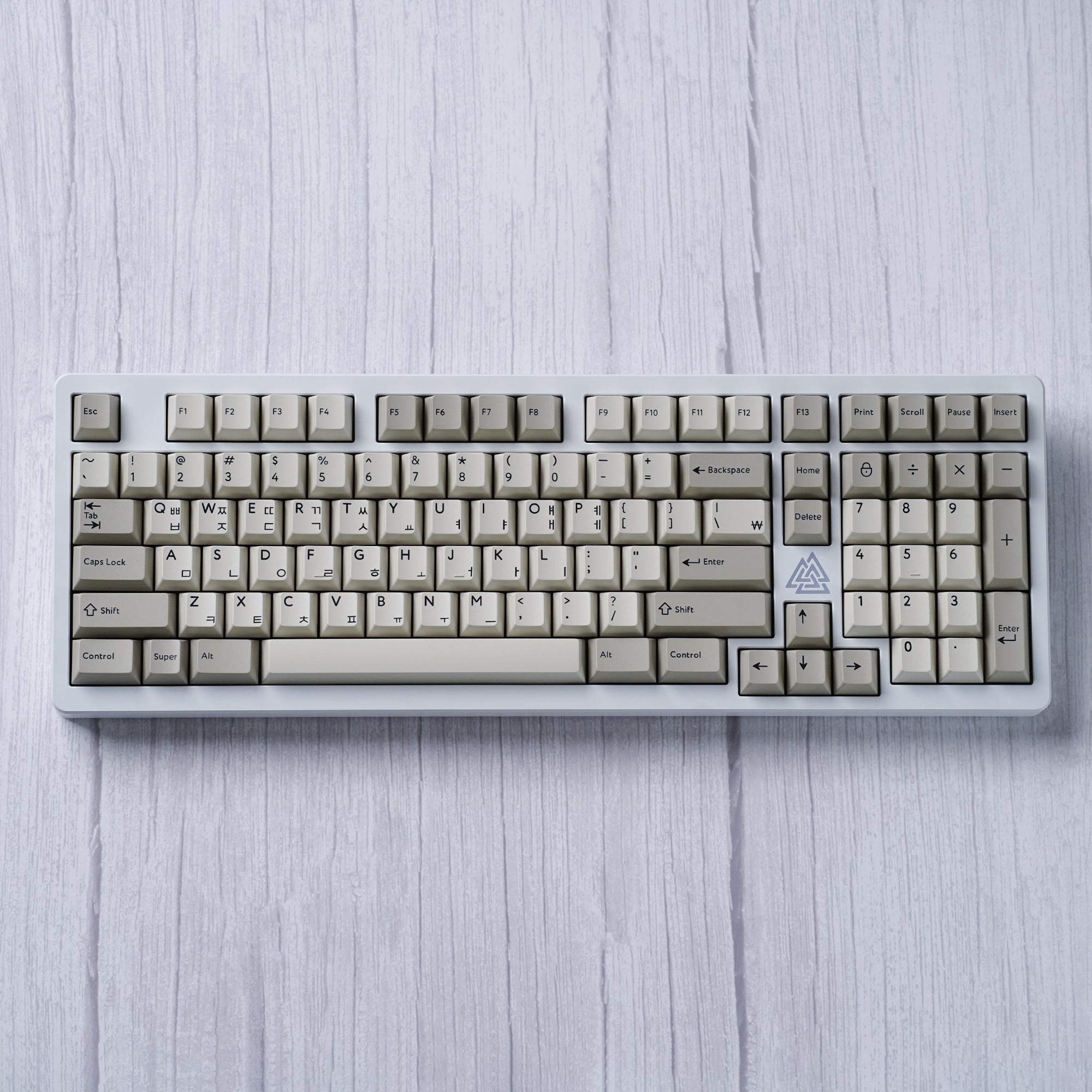

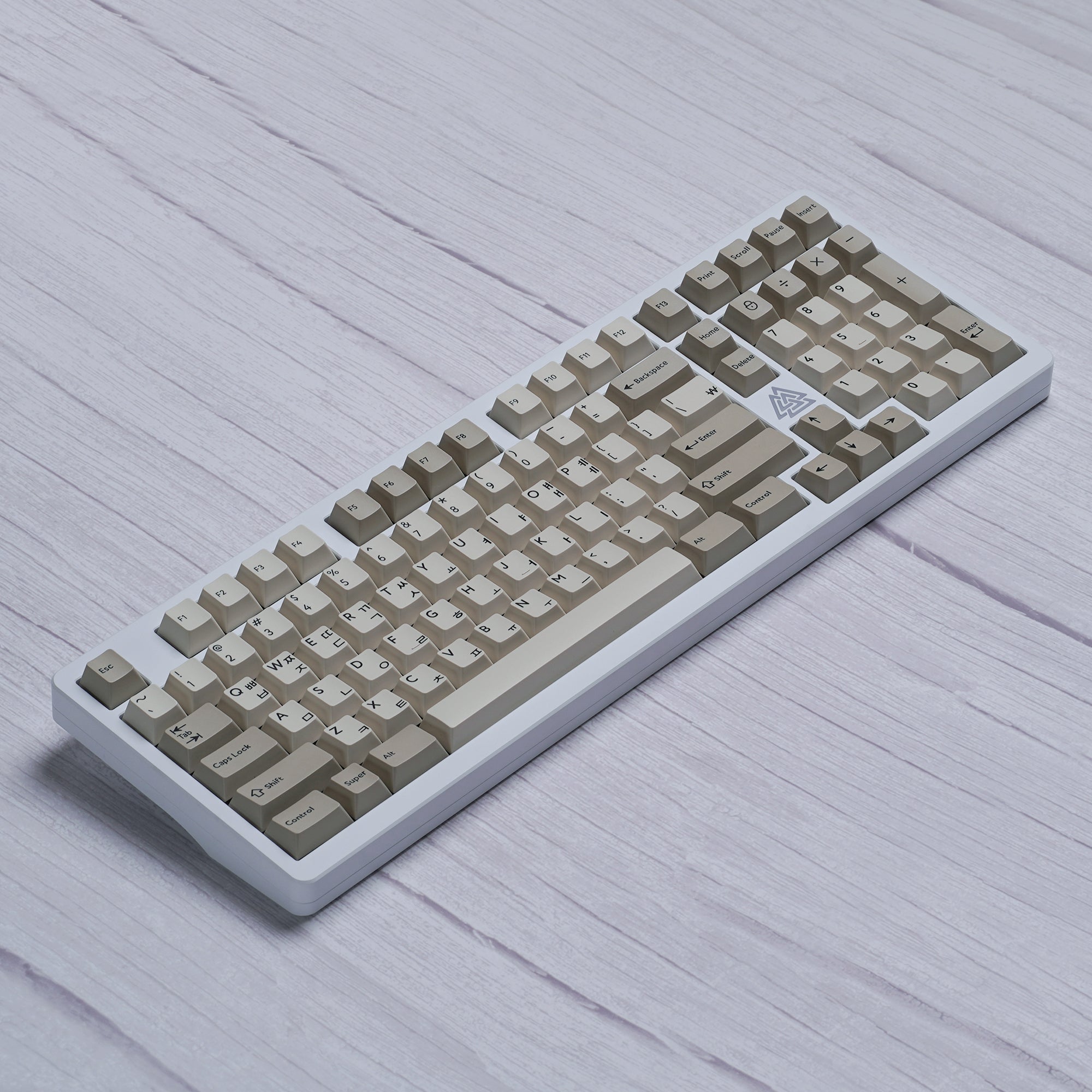

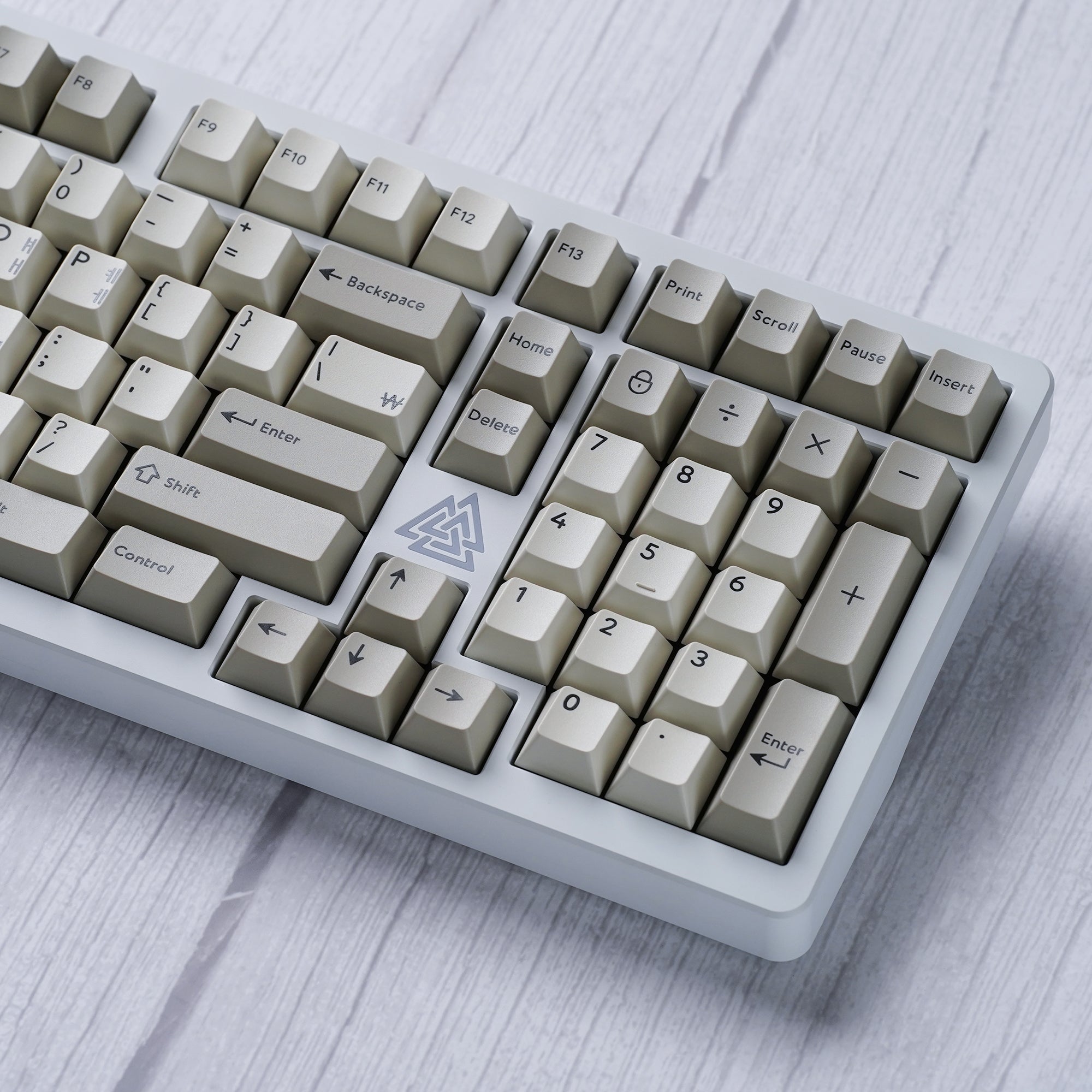

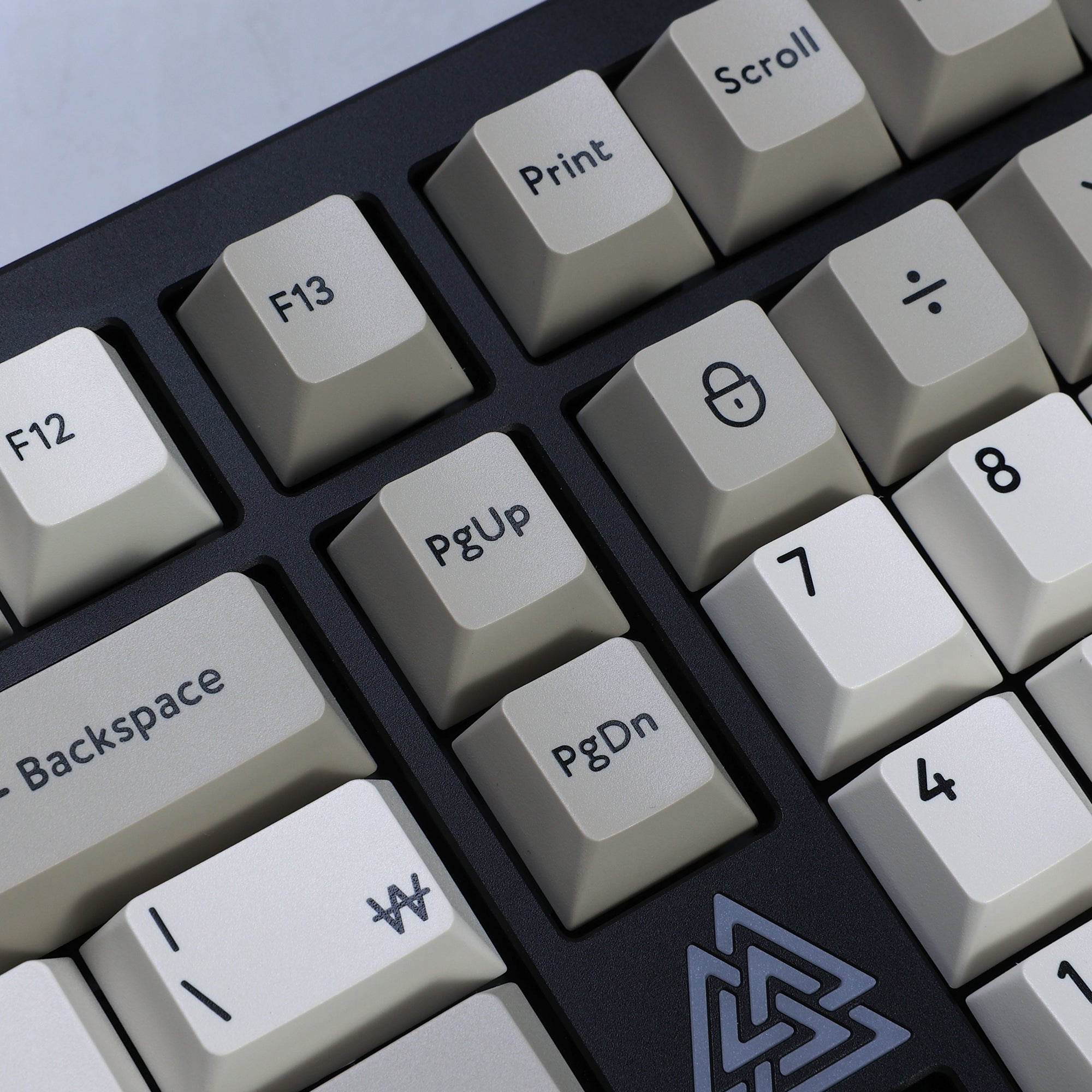

Adopts a 1800 layout which includes a number pad, arrow keys, and a F13 key.
The keyboard uses a standard ANSI layout, with most key sizes and positions conforming to the standard for conventional keyboards.
