TOFU TKL

⚙️In Production
No free shipping
$59.00
Layout
Top Case color

There are 76 people on the waiting list, click the button below to join! We will notify you by email when the product available

Notify me

Congratulations! You are now on the waiting list, please check your inbox for our confirmation email!


Congratulations! You are now on the waiting list, please check your inbox for our confirmation email!

Register Account

Sign In

SKU: DP8005

TOFU TKL


-The first batch of pre-orders (Pre-order date: August 11 - September 15）is expected to ship around the end of October. (Updated on 08/09/2025)
-The aluminum material is ready. Once the new prototype passes testing, we will arrange CNC machining. Estimated delivery is early December. (Updated on 08/30/2025)
-The factory will start shipping products to us gradually by the end of this month. After our QC and packaging, we estimate that shipments will commence progressively from mid-November. （Updated on 10/13/2025）

-CNC Progress: 70% Nearing completion. Anodizing: Has already started, and deliveries are underway. PCB: Deliveries are ongoing. Warehouse: Currently undergoing QC for the casing and testing the PCB. Accessories are mostly complete. （Updated on 11/6/2025）

The TOFU series draws its design inspiration from the purity and versatility of its namesake. Its philosophy is one of minimalism, featuring clean, architectural lines reminiscent of a simple block of tofu. It is a design that strips away the superfluous, returning to the fundamental essence of a typing instrument.
As the latest evolution of this legacy, the Tofu TKL embraces this spirit of adaptability. Mirroring the culinary diversity of tofu, the TKL offers a choice of distinct case materials—Aluminum, Stainless Steel, and Copper. This allows each enthusiast to craft a keyboard that perfectly matches their personal preference for weight, sound, and feel, creating an experience that is uniquely their own.

Case Design

Craftsmanship & Finish
Expertly crafted, the Tofu TKL case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.
Structural Integrity
Internally, the Tofu TKL carries forward the minimalist design heritage of the TOFU family while introducing a versatile dual-mounting system. This allows users to choose between a classic TOP Mount for a firm, responsive feel, or a PCB Gasket Mount for a softer, more flexible typing experience, catering to diverse preferences.
Visual Language
Visually, the Tofu TKL introduces a bold design language. The bottom case features an exposed rear accent, splitting the USB port face into two distinct sections. This innovative construction enables striking two-tone color combinations, both immediately captivating and enduringly timeless.
Integrated Force Break System
The design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.
  Specs
  • Case material: Aluminum (anodized/e-coating)
  • Mounting style: Top Mount/PCB Silicone Gasket
  • PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE
  • Plate: Alu/Carbon fiber/PC Plate
  • Typing angle: 9 degree
  • Cover plate material options: Stainless Steel / Brass
  • Weight: Up to 4.9kg after built
  • Designer: Wei
  • Plate file
  What's included
  • Top and bottom case x1
  • Optional weight bar x2
  • Silicone gasket x1 set
  • Rubber feet x1 set
  • PCB x1
  • Daughterboard x1
  • Optional foam kit x1 set
  • Battery compartment foam kit x1 set
  • Optional plate x1
  • Carrying case x1
  Additional Accessories
  Vender
  QC Standard
  • Upon receipt, the casing is considered acceptable if all six external surfaces (top, bottom, left, right, front, and back) are free from machining marks, stains, dents, and pinholes, and do not have any black dots larger than 1mm or scratches longer than 1mm.
  • The copper weight is considered acceptable if it does not have any black dots, pinholes, or blemishes larger than 1mm, and no scratches longer than 2mm.
  • Flaws and manufacturing artifacts that do not affect the overall external appearance are considered reasonable. This includes, but is not limited to: minor blemishes around screw holes, uneven internal coating, hook marks (from anodizing/painting) where the base color is exposed, and water marks, tool marks, or scratches on internal surfaces.  Purchasing this product means you accept these terms.
  • Due to the significant weight difference between the top and bottom case parts, there may be slight color variations even when the same color is chosen for both.
Other information

Mounting Style

PCB Gasket mount

Engineered for Softness:
Following a similar support distribution as the TOP Mount, the PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience.


Plateless Build Potential:
Combine this mount with the solderable PCB to assemble your board without a plate. This "plateless" configuration is the ultimate choice for achieving maximum flex and a unique, deep sound profile.

Top mount

Optimized TOP Mount Structure:
To minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature.

Exploded View

How to Customize Your TOFU TKL

Step 1: Launch the Configurator

Go to our live configurator at https://kbd.tools/. Once there, select "TOFU TKL " from the "Select Keyboard Model" dropdown menu.

8Step 2: Design Your Build

Explore all the configuration options and customize your keyboard to your personal preference. You can freely choose your:

  • Top Case & Bottom Case
  • Weight (Brass, Aluminum, stainless steel, Copper)
  • PCB (Hotswap, Solder and HE)
  • Plate (Carbon Fiber, Polycarbonate, Aluminum,FR4)
  • Foam Kit
  • Wrist Rest

As you make your selections, the configurator will provide a live preview of your color combination, along with the updated total weight and price.

Step 3: Finalize Your Order

Once you have finalized your design in the configurator, return to this product page. Select the exact same options from the dropdown menus here,

then add the item to your cart and complete your order.

How to Customize Your TOFU TKL

Step 1: Launch the Configurator

Go to our live configurator at https://kbd.tools/. Once there, select "TOFU TKL " from the "Select Keyboard Model" dropdown menu.

8Step 2: Design Your Build

Explore all the configuration options and customize your keyboard to your personal preference. You can freely choose your:

  • Top Case & Bottom Case
  • Weight (Brass, Aluminum, stainless steel, Copper)
  • PCB (Hotswap, Solder and HE)
  • Plate (Carbon Fiber, Polycarbonate, Aluminum,FR4)
  • Foam Kit
  • Wrist Rest

As you make your selections, the configurator will provide a live preview of your color combination, along with the updated total weight and price.

Step 3: Finalize Your Order

Once you have finalized your design in the configurator, return to this product page. Select the exact same options from the dropdown menus here,

then add the item to your cart and complete your order.

Keyboard Parts

Top Case

WK
WKL

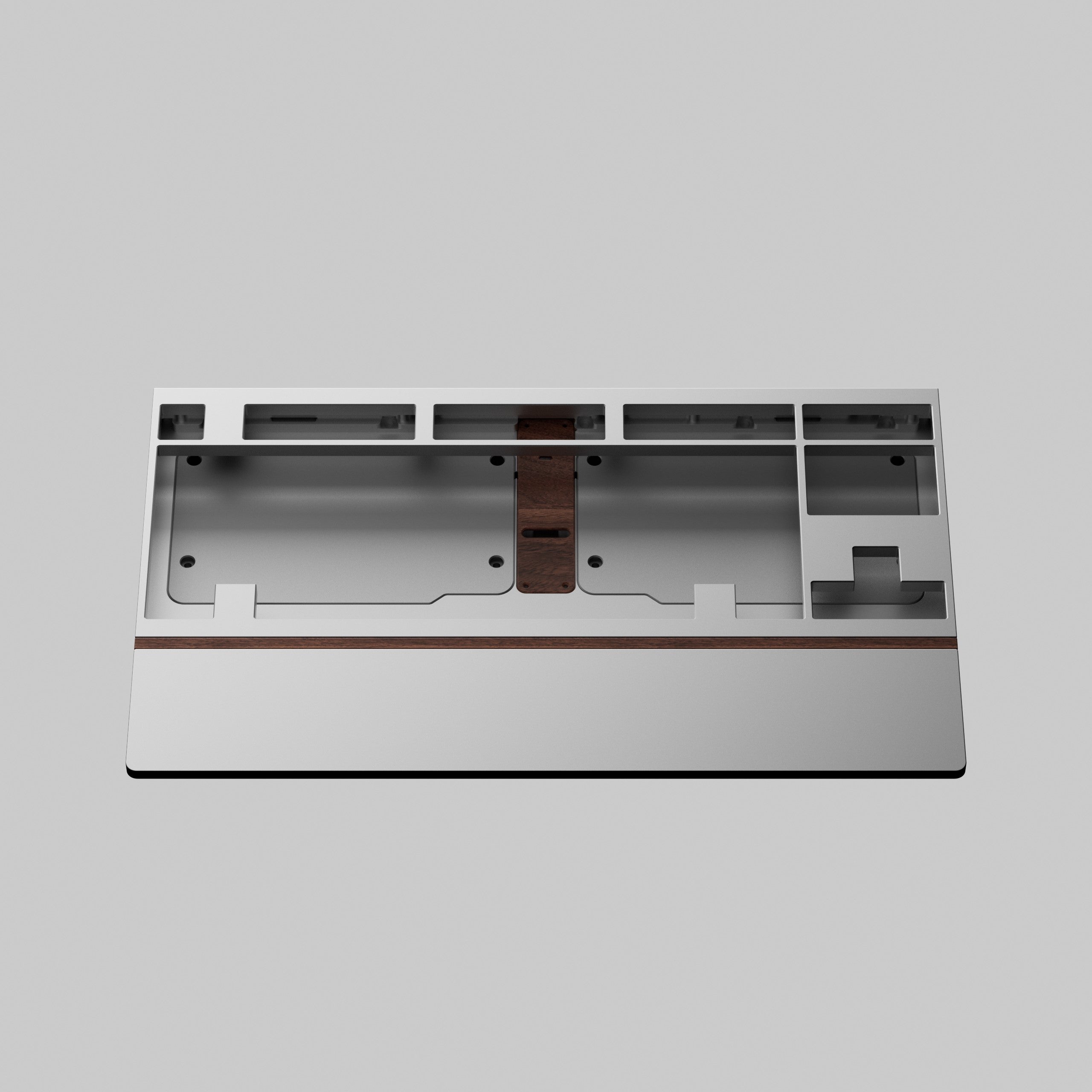

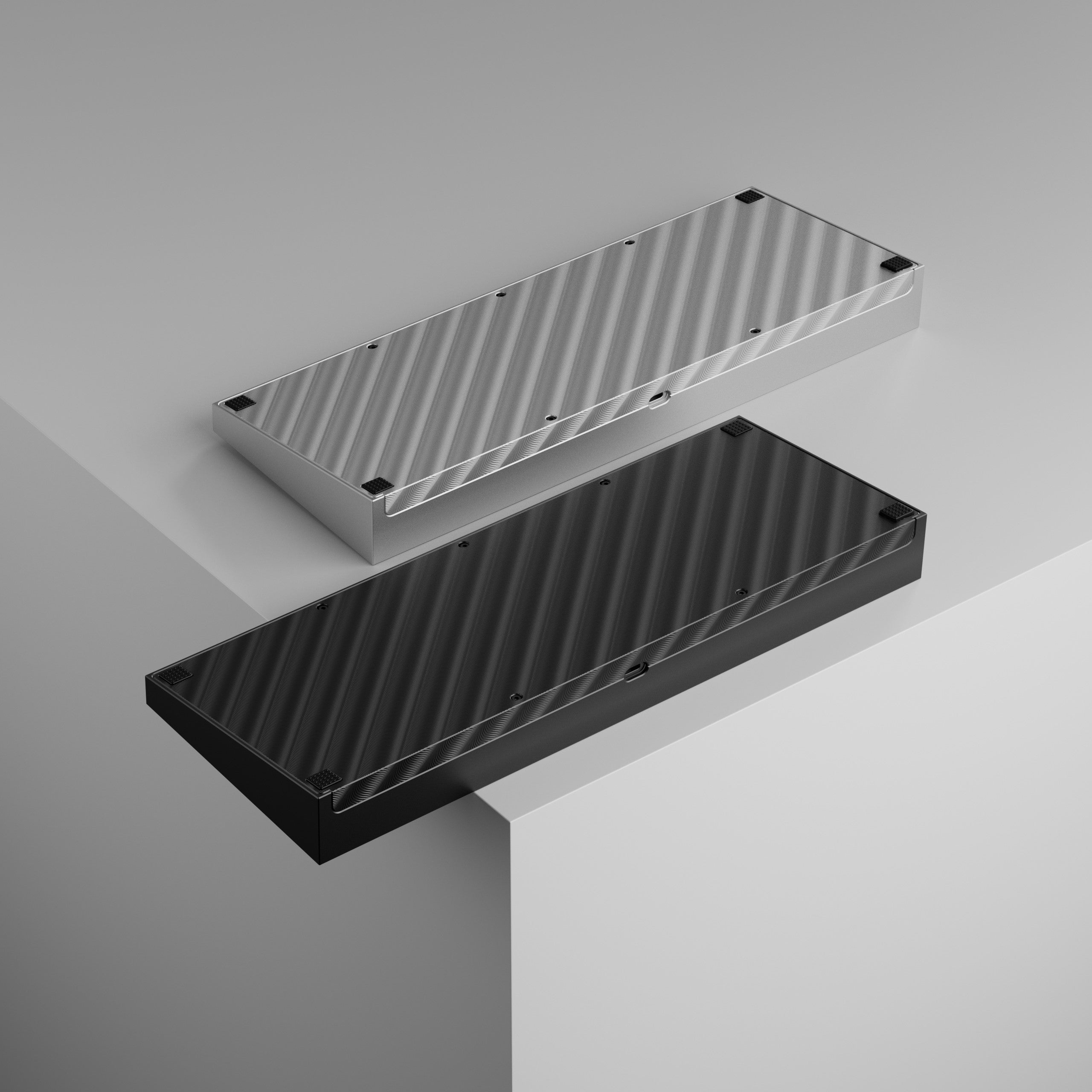

Bottom Case

Weight Bar

Copper

Stainless Steel

Aluminum

Wood Accent

Internal Cover

Wrist Rest

PCB Options

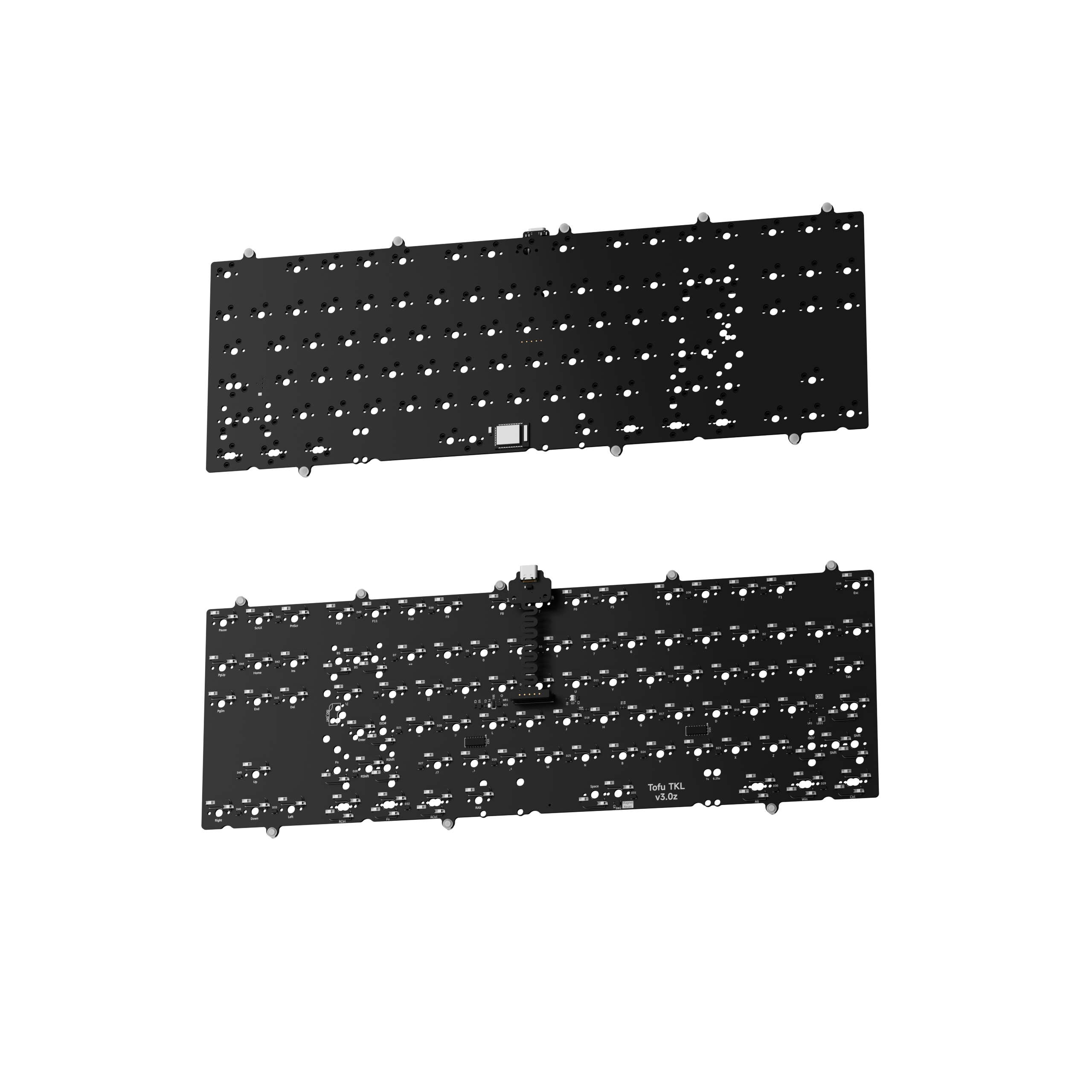

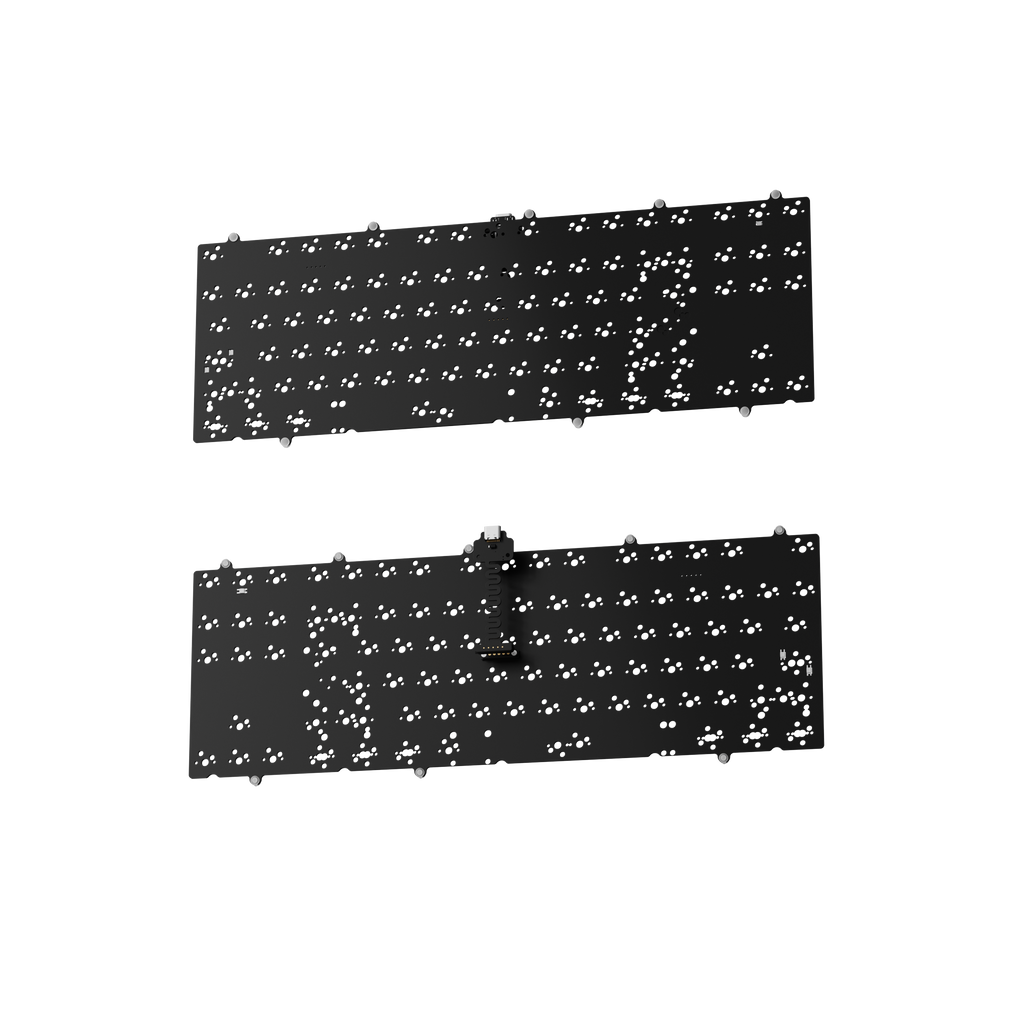

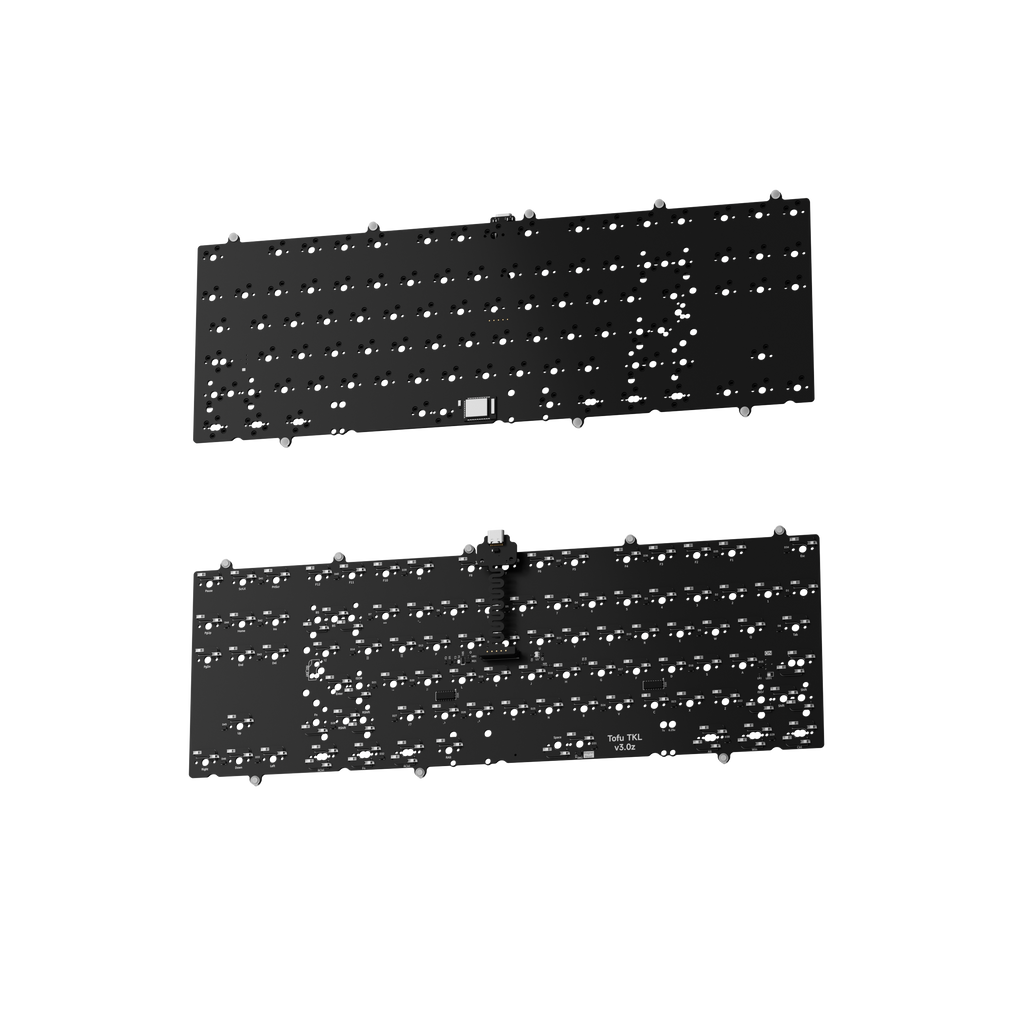

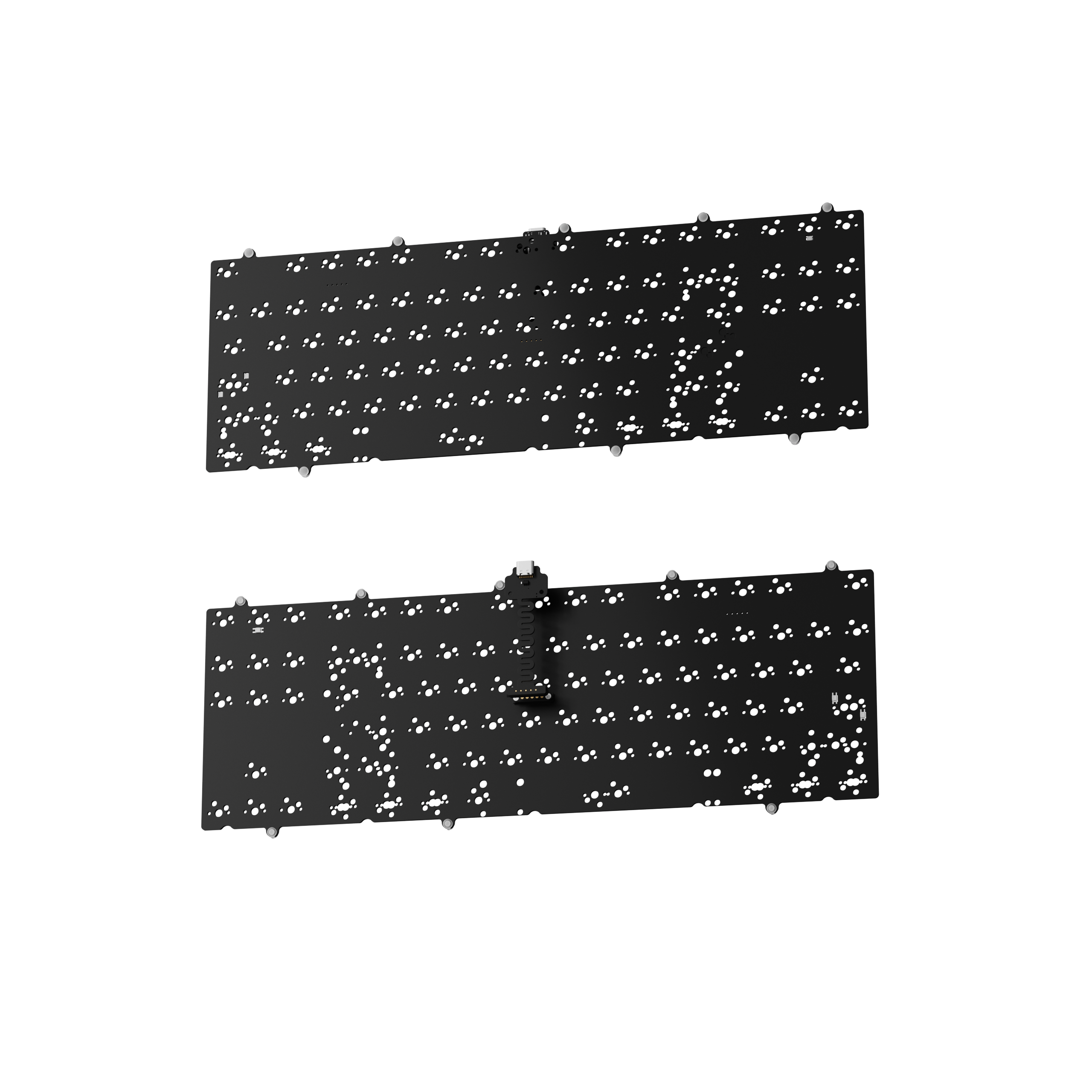

Wired PCB (Solder & Hot-Swap)

Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option.

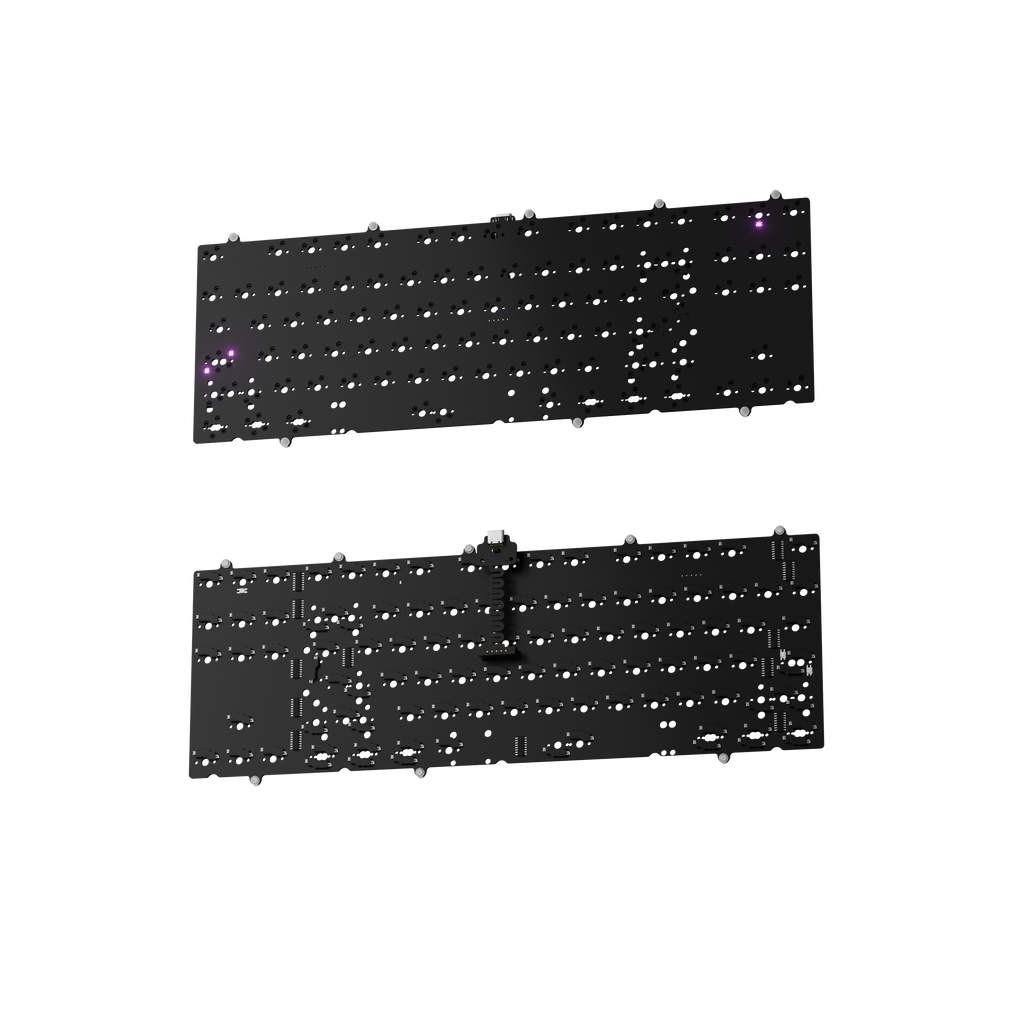

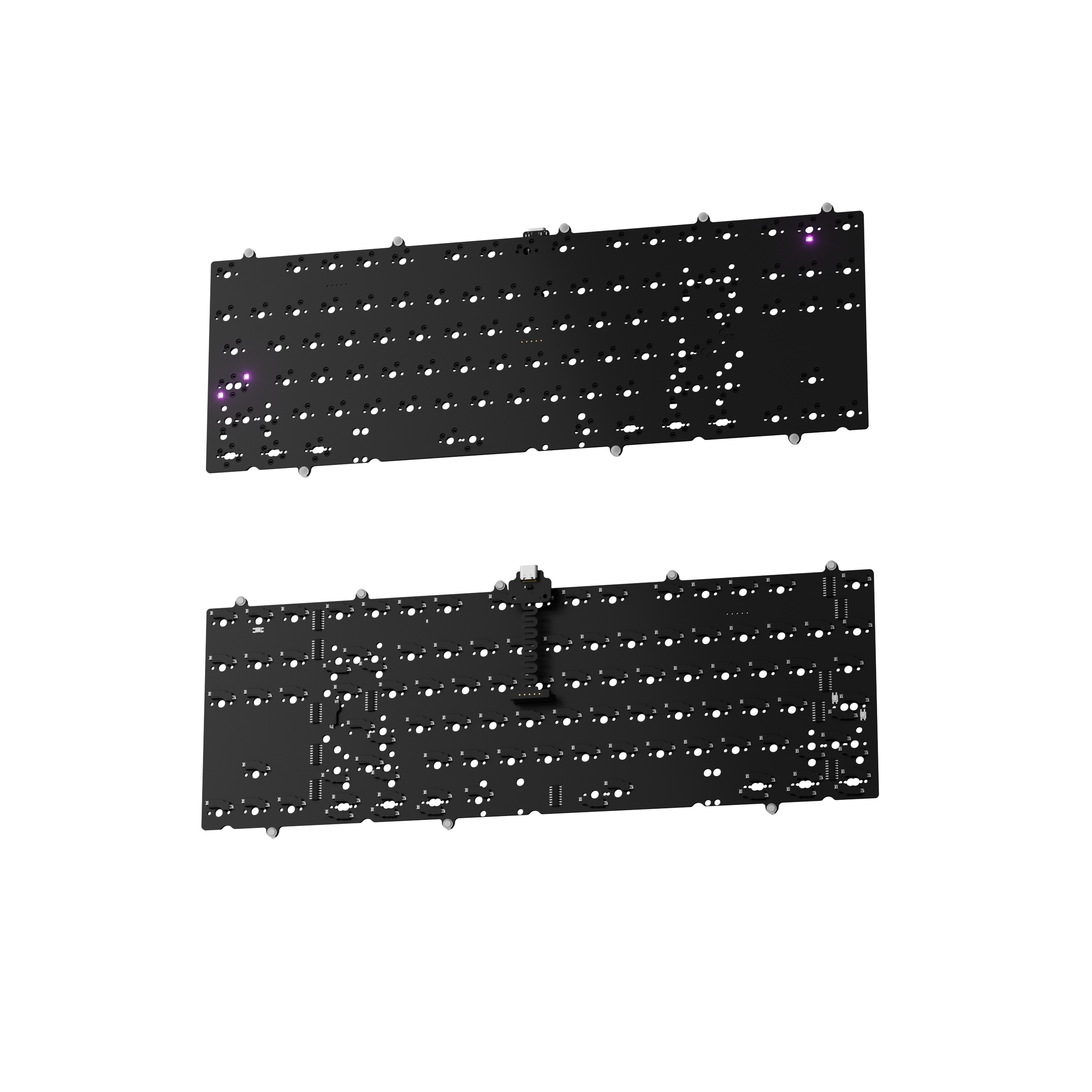

Dual-Mode PCB

Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery.

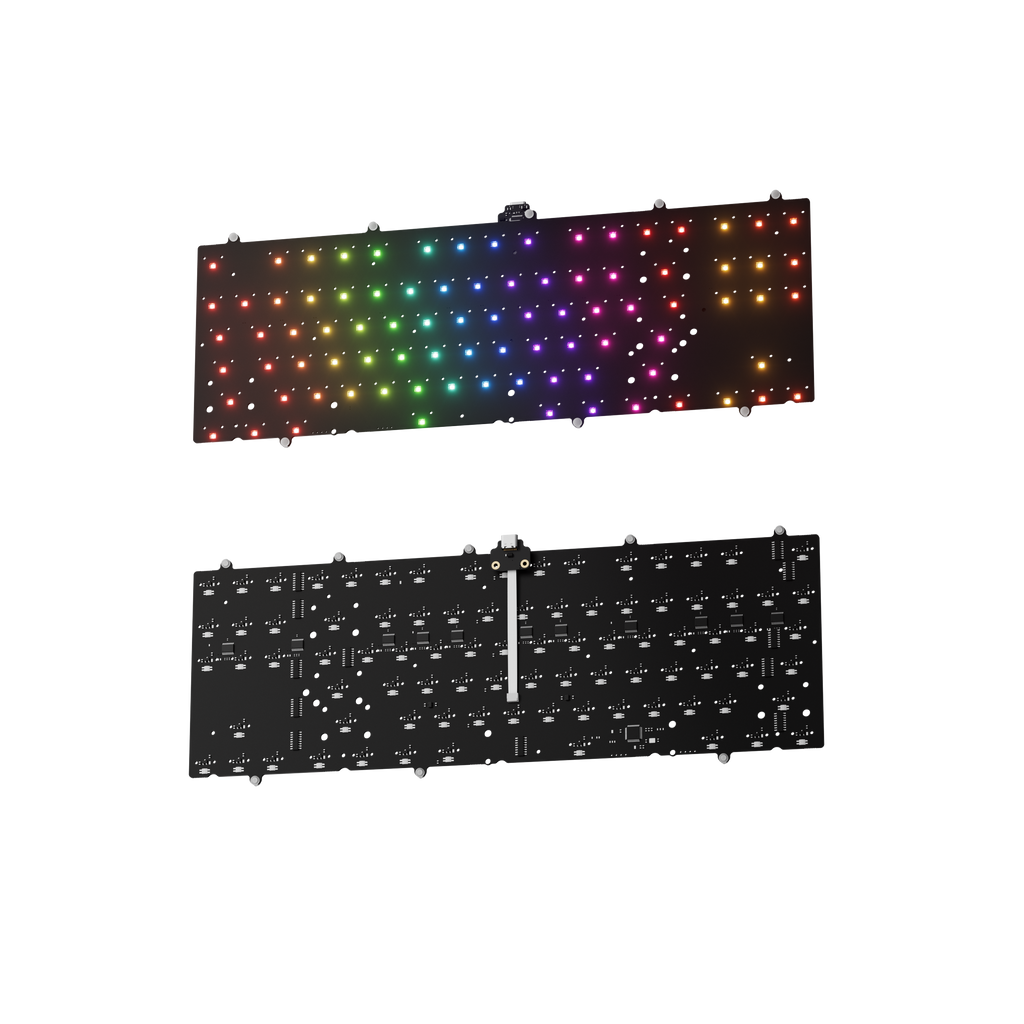

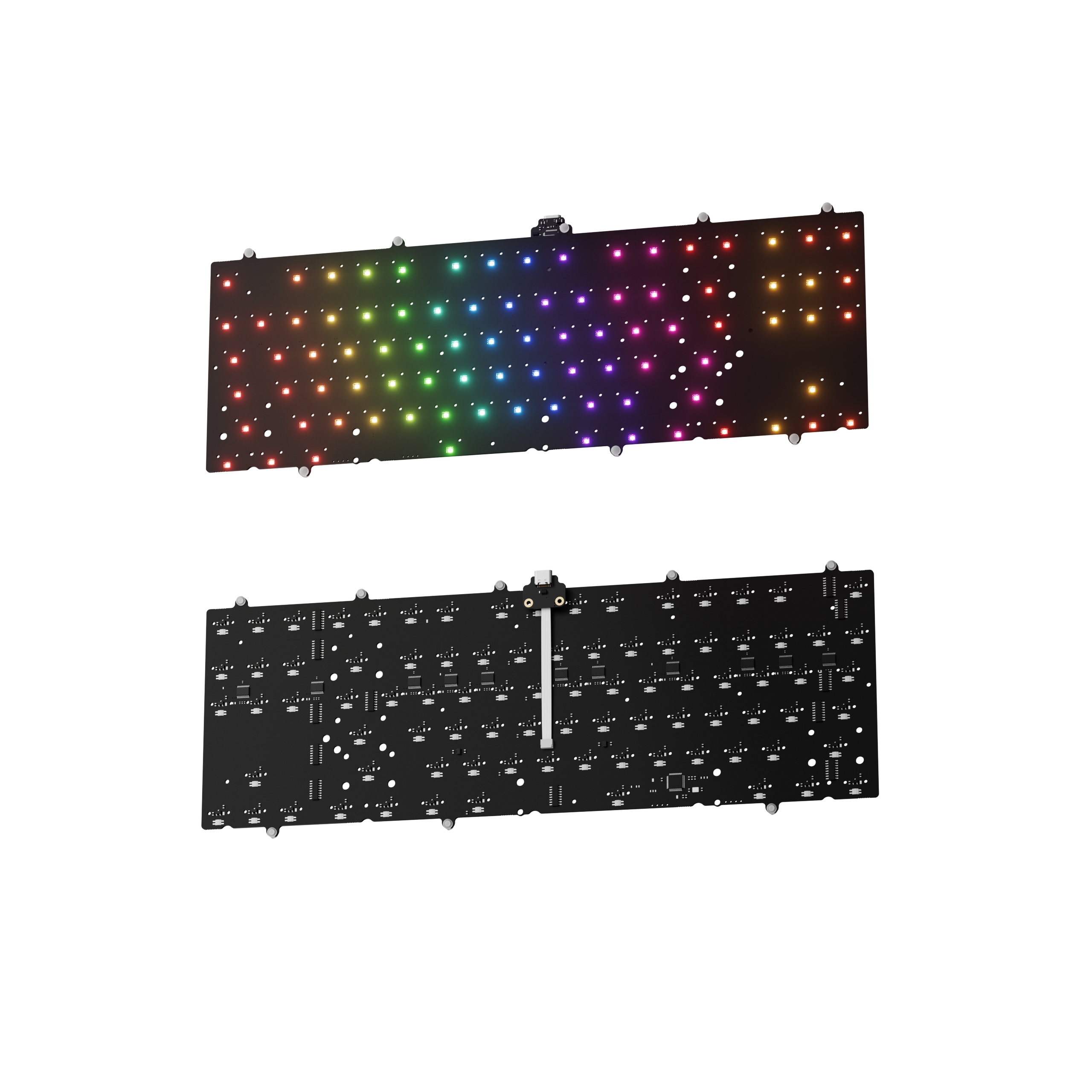

HE (Magnetic) PCB

Engineered for victory. We've partnered with NNKS to create a next-gen Hall Effect PCB focused on what matters most: ultra-low latency.

  • New Daisy-Chain Architecture: Reduces input delay.
  • Stable 0.01mm Resolution: Precision where it counts.
  • Web-Based Configurator: Easy, on-the-fly adjustments.
  • Continuous Firmware Updates: Always stay ahead of the curve.
Layout Support

Wired PCB and Dual-mode PCB layout

HE（Magnetic） PCB layout

Only works for WK Case

Dimensions
Real Pictures
Render Pictures

TOFU TKL

-The first batch of pre-orders (Pre-order date: August 11 - September 15）is expected to ship around the end of October. (Updated on 08/09/2025)
-The aluminum material is ready. Once the new prototype passes testing, we will arrange CNC machining. Estimated delivery is early December. (Updated on 08/30/2025)
-The factory will start shipping products to us gradually by the end of this month. After our QC and packaging, we estimate that shipments will commence progressively from mid-November. （Updated on 10/13/2025）

-CNC Progress: 70% Nearing completion. Anodizing: Has already started, and deliveries are underway. PCB: Deliveries are ongoing. Warehouse: Currently undergoing QC for the casing and testing the PCB. Accessories are mostly complete. （Updated on 11/6/2025）

The TOFU series draws its design inspiration from the purity and versatility of its namesake. Its philosophy is one of minimalism, featuring clean, architectural lines reminiscent of a simple block of tofu. It is a design that strips away the superfluous, returning to the fundamental essence of a typing instrument.
As the latest evolution of this legacy, the Tofu TKL embraces this spirit of adaptability. Mirroring the culinary diversity of tofu, the TKL offers a choice of distinct case materials—Aluminum, Stainless Steel, and Copper. This allows each enthusiast to craft a keyboard that perfectly matches their personal preference for weight, sound, and feel, creating an experience that is uniquely their own.

Case Design

Craftsmanship & Finish
Expertly crafted, the Tofu TKL case comes in two premium finishes. Choose the silky-smooth feel of sandblasted anodized aluminum or the fine, matte texture of our rich E-coating. Both perfectly highlight the case's clean, sculpted lines.
Structural Integrity
Internally, the Tofu TKL carries forward the minimalist design heritage of the TOFU family while introducing a versatile dual-mounting system. This allows users to choose between a classic TOP Mount for a firm, responsive feel, or a PCB Gasket Mount for a softer, more flexible typing experience, catering to diverse preferences.
Visual Language
Visually, the Tofu TKL introduces a bold design language. The bottom case features an exposed rear accent, splitting the USB port face into two distinct sections. This innovative construction enables striking two-tone color combinations, both immediately captivating and enduringly timeless.
Integrated Force Break System
The design includes custom-molded Force Break silicone pads. These pads create a buffer between case components, effectively dampening case vibration and eliminating unwanted metallic "ping," ensuring a cleaner sound.
  Specs
  • Case material: Aluminum (anodized/e-coating)
  • Mounting style: Top Mount/PCB Silicone Gasket
  • PCB: 1.6mm, 4 options, solder/wired hotswap/Dual-mode hotswap/HE
  • Plate: Alu/Carbon fiber/PC Plate
  • Typing angle: 9 degree
  • Cover plate material options: Stainless Steel / Brass
  • Weight: up to 4.9kg after built
  • Designer: Wei
  • Plate file
  Additional Accessories
  QC Standard
  • Upon receipt, the casing is considered acceptable if all six external surfaces (top, bottom, left, right, front, and back) are free from machining marks, stains, dents, and pinholes, and do not have any black dots larger than 1mm or scratches longer than 1mm.
  • The copper weight is considered acceptable if it does not have any black dots, pinholes, or blemishes larger than 1mm, and no scratches longer than 2mm.
  • Flaws and manufacturing artifacts that do not affect the overall external appearance are considered reasonable. This includes, but is not limited to: minor blemishes around screw holes, uneven internal coating, hook marks (from anodizing/painting) where the base color is exposed, and water marks, tool marks, or scratches on internal surfaces.  Purchasing this product means you accept these terms.
  • Due to the significant weight difference between the top and bottom case parts, there may be slight color variations even when the same color is chosen for both.
  What's included
  • Top and bottom case x1
  • Optional weight bar x2
  • Silicone gasket x1 set
  • Rubber feet x1 set
  • PCB x1
  • Daughterboard x1
  • Optional foam kit x1 set
  • Battery compartment foam kit x1 set
  • Optional plate x1
  • Carrying case x1
  Vender
  Other information

Mounting Style

PCB Gasket mount

Engineered for Softness
Following a similar support distribution as the TOP Mount, the PCB Gasket is designed to provide a maximally soft, bouncy, and flexible typing experience.


Plateless Build Potential
Combine this mount with the solderable PCB to assemble your board without a plate. This "plateless" configuration is the ultimate choice for achieving maximum flex and a unique, deep sound profile.

Top mount

Optimized TOP Mount Structure
To minimize resonance and hollowness, the mounting points for the TOP structure are strategically placed to avoid the spacebar area. This results in a more uniform and satisfying sound signature.

Exploded View

How to Customize Your TOFU TKL

Step 1: Launch the Configurator

Go to our live configurator at https://kbd.tools/. Once there, select "TOFU TKL " from the "Select Keyboard Model" dropdown menu.

8Step 2: Design Your Build

Explore all the configuration options and customize your keyboard to your personal preference. You can freely choose your:

  • Top Case & Bottom Case
  • Weight (Brass, Aluminum, stainless steel, Copper)
  • PCB (Hotswap, Solder and HE)
  • Plate (Carbon Fiber, Polycarbonate, Aluminum,FR4)
  • Foam Kit
  • Wrist Rest

As you make your selections, the configurator will provide a live preview of your color combination, along with the updated total weight and price.

Step 3: Finalize Your Order

Once you have finalized your design in the configurator, return to this product page. Select the exact same options from the dropdown menus here,

then add the item to your cart and complete your order.

Keyboard parts

Top Case

WK
WKL

Bottom Case

Weight Bar

Copper
Stainless Steel
Aluminum

Wood Accent

Internal Cover

Wrist Rest

PCB Options

Wired PCB (Solder & Hot-Swap)

Dive into deep customization with support for AVA, VIAL, and VIA. The solder version also allows for a unique plateless build option.

Dual-Mode PCB

Experience the freedom of wireless with our first-ever dual-mode board powered by ZMK. Its ultra-low power consumption delivers an incredible 6+ months of battery life from a single 1000mAh battery.

HE (Magnetic) PCB

Engineered for victory. We've partnered with NNKS to create a next-gen Hall Effect PCB focused on what matters most: ultra-low latency.

  • New Daisy-Chain Architecture: Reduces input delay.
  • Stable 0.01mm Resolution: Precision where it counts.
  • Web-Based Configurator: Easy, on-the-fly adjustments.
  • Continuous Firmware Updates: Always stay ahead of the curve.
Layout Support

Wired PCB and Dual-mode PCB layout

HE（Magnetic） PCB layout

Only works for WK Case

Dimensions
Render Pictures
Real Pictures

FAQs

Can I use KBD8X MKIII or VENOM HE PCBs with this board?

VENOM HE PCB is compatible, but we need to use our own daughterboard

What is the latency for the wired and dual-mode PCBs? Is the dual-mode latency significant?

The latency is 1.25ms for MX-style switches and 0.125ms for magnetic switches. As expected, the latency in dual-mode (wireless) will be slightly higher than in single-mode (wired).

Can I request a different color after making a purchase?

This pre-order is for our standard color options. However, we also offer a paid upgrade service for custom colors in collaboration with KEZEWA.

Will a half-plate made of steel be available in the future?

Yes, that's possible.

Will there be a CEM-1 solder PCB option in the future?

Due to the design requirements, a CEM-1 PCB is not supported.

Will the design files be made public?

Yes, the design files (for the plate, case, and battery filler) will be released for download after the Group Buy (GB) is completed.

Do you offer custom colors for the texture?

This would require testing. Anodizing is most reliably done at the original factory. De-anodizing and re-anodizing after it leaves the factory could cause secondary damage. Therefore, we do not accept orders for custom-colored texture at this time. If you are interested, you can send it to an anodizing service yourself, but we will not be responsible for any after-sales support in that case.

Can magnetic switches be used with a gasket ?

Yes. Our magnetic switch solution supports an adjustable actuation point with 0.01mm increments. While technically it can go lower, 0.01mm is a stable and practical value that represents the physical limit of what most people can perceive. Smaller increments would only create inconvenience when configuring in the software.

Do the magnetic switches support an 8K polling rate?

Yes, it is a true 8K polling rate. However, considering the varying quality of switches on the market, we have added an option to change the polling rate in the top-right corner of the configurator website. If you are using lower-quality magnetic switches, you can switch to a lower polling rate to calibrate and improve performance.

Why is there only a dual-mode (Wired + Bluetooth) version and not a tri-mode (Wired + Bluetooth + 2.4G) version?

Our current firmware is based on an open-source solution that does not include a 2.4G wireless component. We believe dual-mode meets the needs of the vast majority of users. Furthermore, this keyboard features an ultra-low-power design, making it exceptionally energy-efficient. (From personal experience, I often lose the 2.4G dongles anyway.)

Anodized Sage Green

Stone Wash Silver

Stone Wash Red

Stone Wash Black

Anodized Dark Olive

Anodized Burgundy

Anodized Deep Purple

Anodized Red

Anodized Coffee

Anodized Midnight Purple

Anodized Navy Blue

Anodized Orange

Anodized Violet

Anodized Bronze

Anodized Champagne

Anodized Lime Green

Anodized Royal Blue

Anodized Marigold

Anodized Lavender

Anodized Magenta

Anodized Pink

Anodized Sage Green

Stone Wash Silver

Stone Wash Red

Stone Wash Black

Anodized Dark Olive

Anodized Burgundy

Anodized Deep Purple

Anodized Red

Anodized Coffee

Anodized Midnight Purple

Anodized Navy Blue

Anodized Orange

Anodized Violet

Anodized Bronze

Anodized Champagne

Anodized Lime Green

Anodized Royal Blue

Anodized Marigold

Anodized Lavender

Anodized Magenta

Anodized Pink

FAQs

Can I use KBD8X MKIII or VENOM HE PCBs with this board?

VENOM HE PCB is compatible, but we need to use our own daughterboard

What is the latency for the wired and dual-mode PCBs? Is the dual-mode latency significant?

The latency is 1.25ms for MX-style switches and 0.125ms for magnetic switches. As expected, the latency in dual-mode (wireless) will be slightly higher than in single-mode (wired).

Can I request a different color after making a purchase?

This pre-order is for our standard color options. However, we also offer a paid upgrade service for custom colors in collaboration with KEZEWA.

Will a half-plate made of steel be available in the future?

Yes, that's possible.

Will there be a CEM-1 solder PCB option in the future?

Due to the design requirements, a CEM-1 PCB is not supported.

Will the design files be made public?

Yes, the design files (for the plate, case, and battery filler) will be released for download after the Group Buy (GB) is completed.

Do you offer custom colors for the texture?

This would require testing. Anodizing is most reliably done at the original factory. De-anodizing and re-anodizing after it leaves the factory could cause secondary damage. Therefore, we do not accept orders for custom-colored texture at this time. If you are interested, you can send it to an anodizing service yourself, but we will not be responsible for any after-sales support in that case.

Can magnetic switches be used with a gasket ?

Yes. Our magnetic switch solution supports an adjustable actuation point with 0.01mm increments. While technically it can go lower, 0.01mm is a stable and practical value that represents the physical limit of what most people can perceive. Smaller increments would only create inconvenience when configuring in the software.

Do the magnetic switches support an 8K polling rate?

Yes, it is a true 8K polling rate. However, considering the varying quality of switches on the market, we have added an option to change the polling rate in the top-right corner of the configurator website. If you are using lower-quality magnetic switches, you can switch to a lower polling rate to calibrate and improve performance.

Why is there only a dual-mode (Wired + Bluetooth) version and not a tri-mode (Wired + Bluetooth + 2.4G) version?

Our current firmware is based on an open-source solution that does not include a 2.4G wireless component. We believe dual-mode meets the needs of the vast majority of users. Furthermore, this keyboard features an ultra-low-power design, making it exceptionally energy-efficient. (From personal experience, I often lose the 2.4G dongles anyway.)
