Introduction
Meet Constance TKL, our first seamless, split plate, top-mounted, F13 TKL. Our goal for
Constance was simple: to design a keyboard that we'd enjoy as a daily driver. It needs
to look good, type well, and sounds great. We aimed for a clean, minimal, and elegant
aesthetic with just the right touch of flair to catch your eye without being too bold. If you
appreciate a straightforward top mount keyboard with clean, detailed designs, we hope
Constance catches your interest!

Specifications

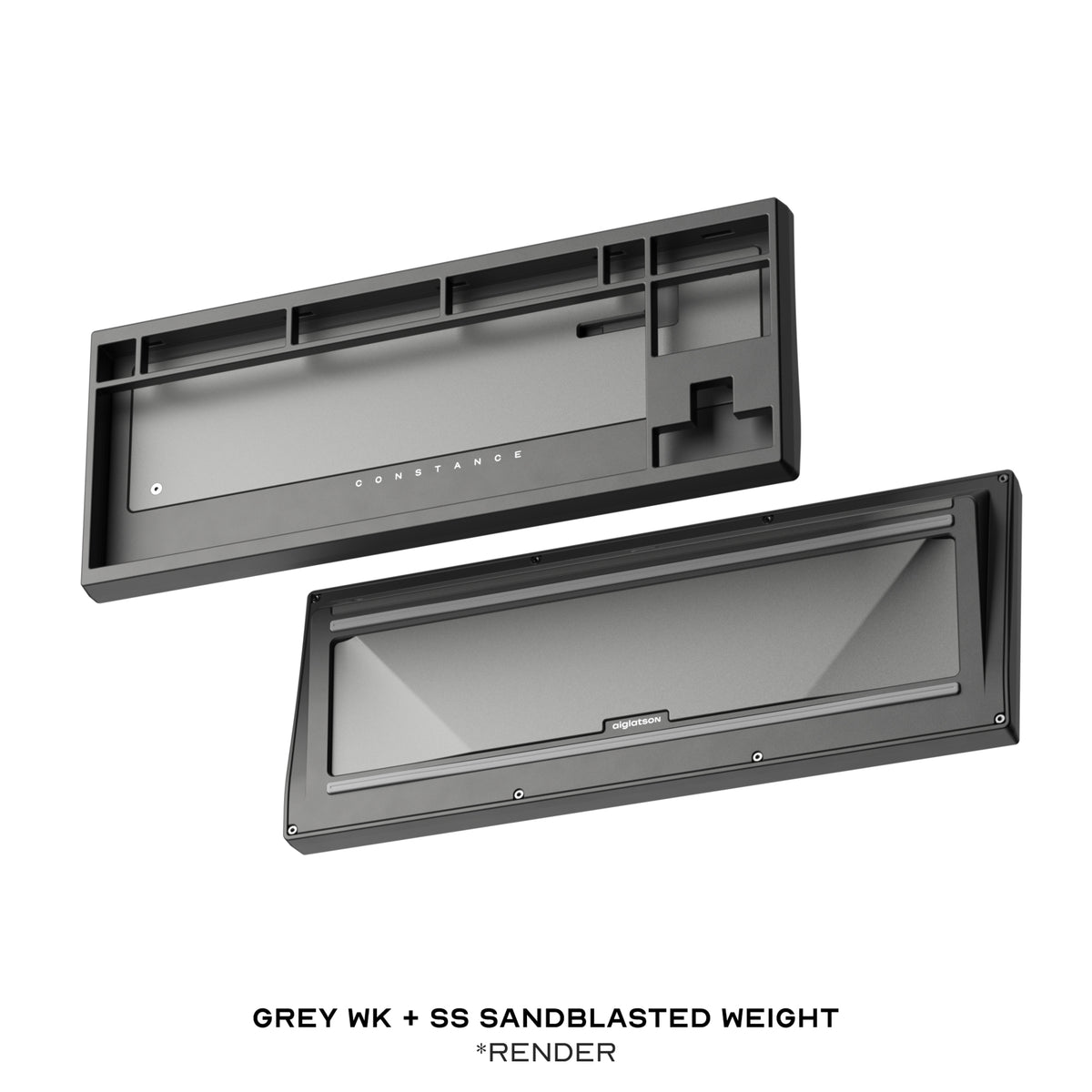

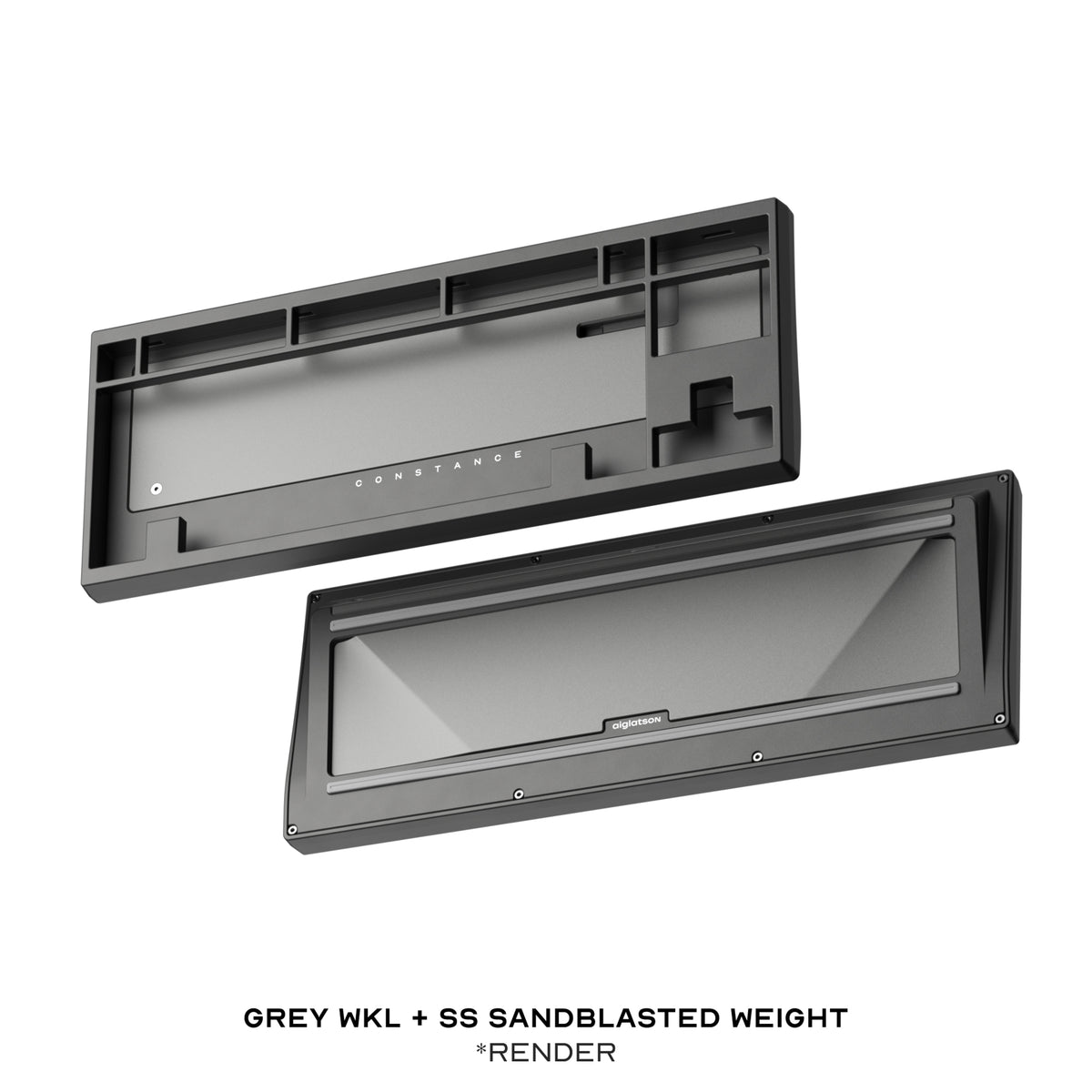

  • Layout: F13 TKL (88%) WK and WKL
  • Mounting: Split-plate top mount
  • Typing Angle: 9 Degrees
  • Materials: Aluminium 6063 case with brass (sandblasted, spray coated, Patina), stainless steel (sandblasted), or copper (sandblasted) weights
  • Front Height: 18.5 mm, EKH 23.799 mm
  • Plate Options: Aluminium Full/Half, Carbon Fiber Full/Half, Polycarbonate Full/Half, and Polypropylene Full/Half
  • PCB: 1.6 mm FR4 + daughter board
  • Weight (Built): Approximately 3,480g (Brass weights), 3,420 g (Stainless steel weights)
  • The PCB is not included in the keyboard kit and must be purchased separately as an add-on.
  • A full aluminium plate is already included in the keyboard kit.
  • The PCB add on option already includes a DB and JST cable
  • The keyboard is compatible with other H88 PCBs
  • Box dimension: 485 x 265 x 132 mm
  • Weight: approximately 4 kg


Disclamer

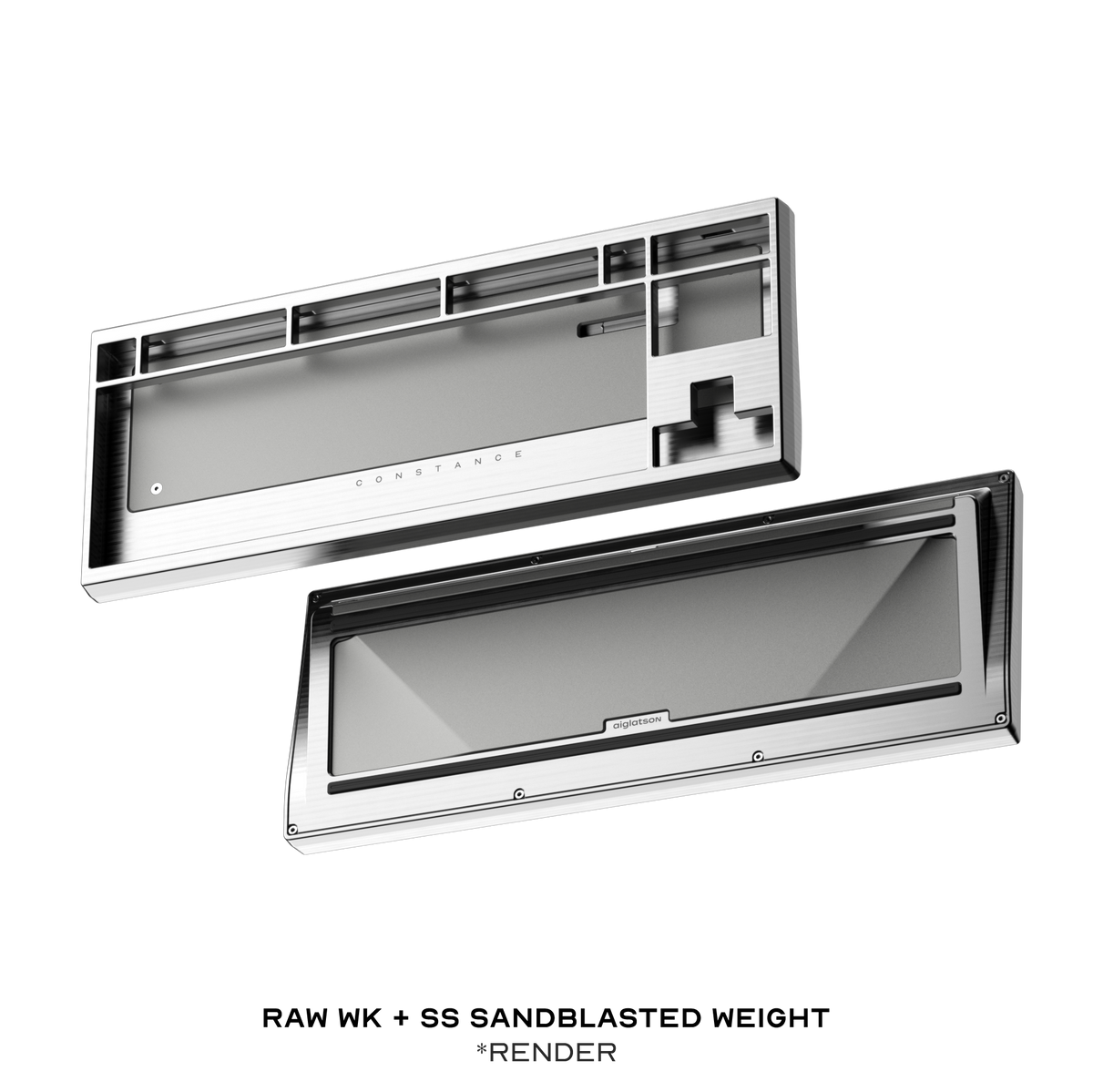

  • Raw cases have been clear anodized to prevent oxidation.
  • Raw cases have no surface treatment and may have machining marks and scratches
  • Refunds or exchanges will not be provided for scratches on Raw cases; only cracks or dents are eligible for such requests.
  • Patina weights are handmade; therefore, every unit will be unique.
  • Internal surfaces are not considered during QC.

Parts included in the keyboard kit
  • 1x Top case
  • 1x Bottom case
  • 1x Internal weight
  • 1x External weight
  • 1x Toblerone weight
  • 1x Full aluminium plate
  • 2x Black Feets
  • 1x Carrying Case
  • Screws and packaging
Vendors
  • Global: Kbdfans
  • US: Divinikeys
  • KR: Geonworks
  • EU: Delta Key Co
  • UK: Prototypist
  • OCE: Cafege
  • VT: MOKB
  • CA: Minokeys
  • SG: ilumkb
  • ID: Kukey Studio
  • TH: Aiglatson Studio
  • MY: Mecha
  • IN: Neo Macro

Update

  • GB Period:10 October to 11 November 2024
  • Estimated Shipping: Q2 2025 (LNY break taken into account)
Introduction
Hello, I am PJ from Aiglatson Studio, we are a design studio/vendor from Thailand. Meet
Constance TKL, our first seamless, split plate, top-mounted, F13 TKL. Our goal for Constance was simple: to design a keyboard that we'd enjoy as a daily driver. It needs to look good, type well, and sounds great. We aimed for a clean, minimal, and elegant aesthetic with just the right touch of flair to catch your eye without being too bold. If you appreciate a straightforward top mount keyboard with clean, detailed designs, we hope Constance catches your interest!

Specifications
  • Layout: F13 TKL (88%) WK and WKL
  • Mounting: Split-plate top mount
  • Typing Angle: 9 Degrees
  • Materials: Aluminium 6063 case with brass (sandblasted, spray coated, Patina), stainless steel (sandblasted), or copper (sandblasted) weights
  • Front Height: 18.5 mm, EKH 23.799 mm
  • Plate Options: Aluminium Full/Half, Carbon Fiber Full/Half, Polycarbonate Full/Half, and Polypropylene Full/Half
  • PCB: 1.6 mm FR4 + daughter board
  • Weight (Built): Approximately 3,480g (Brass weights), 3,420 g (Stainless steel weights)

Parts included in the keyboard kit
  • 1x Top case
  • 1x Bottom case
  • 1x Internal weight
  • 1x External weight
  • 1x Toblerone weight
  • 1x Full aluminium plate
  • 2x Black Feets
  • 1x Carrying Case
  • Screws and packaging
Vendors
  • Global: Kbdfans
  • US: Divinikeys
  • KR: Geonworks
  • EU: Delta Key Co
  • UK: Prototypist
  • OCE: Cafege
  • VT: MOKB
  • CA: Minokeys
  • SG: ilumkb
  • ID: Kukey Studio
  • TH: Aiglatson Studio
  • MY: Mecha
  • IN: Neo Macro

Update
  • GB Period:10 October to 11 November 2024
  • Estimated Shipping: Q2 2025 (LNY break taken into account)

Design Features

We kept the top face clean with 10.5 mm top bezels and 6.5 mm side bezels. However, by adding a 9-degree angle chamfer around the top edge (to create the HG sides), each bezel appears 1.8 mm thinner from the top.
All corners and edges are filleted to give the top view a softer look.



Side Profile

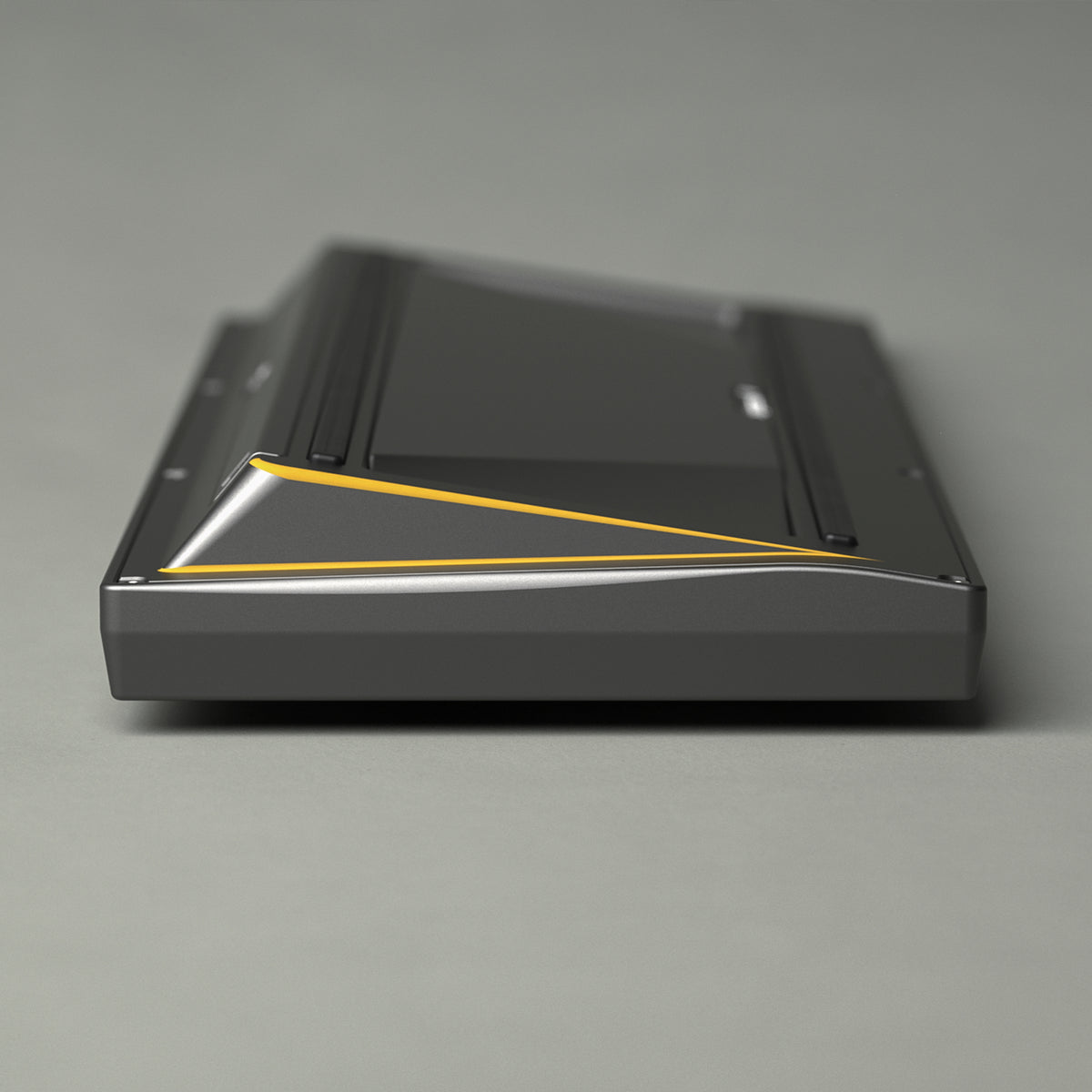

Initially, Constance came with a simple HG side, but we decided to add a subtle curvature to make the side profile more appealing and softer on the eye.
This was a last-minute decision, but we ended up liking it more.
It comes with a 9-degree typing and a EKH of 23.799 mm.



weights

]Constance comes with 3 pieces of weights: internal, external, and toblerone.



Extreme Perfectionism

Instead of having a constant fillet radius along the edges, we've made it variable, tapering to almost a sharp edge at the ends for a cleaner and tidier look.

Mounting and plate

Constance features a top-mount design with split plates, similar to keyboards like the Glare TKL and Albatross TKL. This configuration separates the 60% cluster and the function row from the navigator cluster. During development, we experimented with both full and split plates and found that splitting the plates results in a higher-pitched and noticeably louder overall sound profile, which aligns with our preferences.
With the plates split, the layout becomes somewhat symmetrical. As a result, the mounting points are symmetrically positioned for a uniform typing feel but leave the spacebar area unmounted.
We've added cutouts between the function row and number row (only for aluminum and carbon fiber plates) to give the alphas a little more flex with harder plates.
