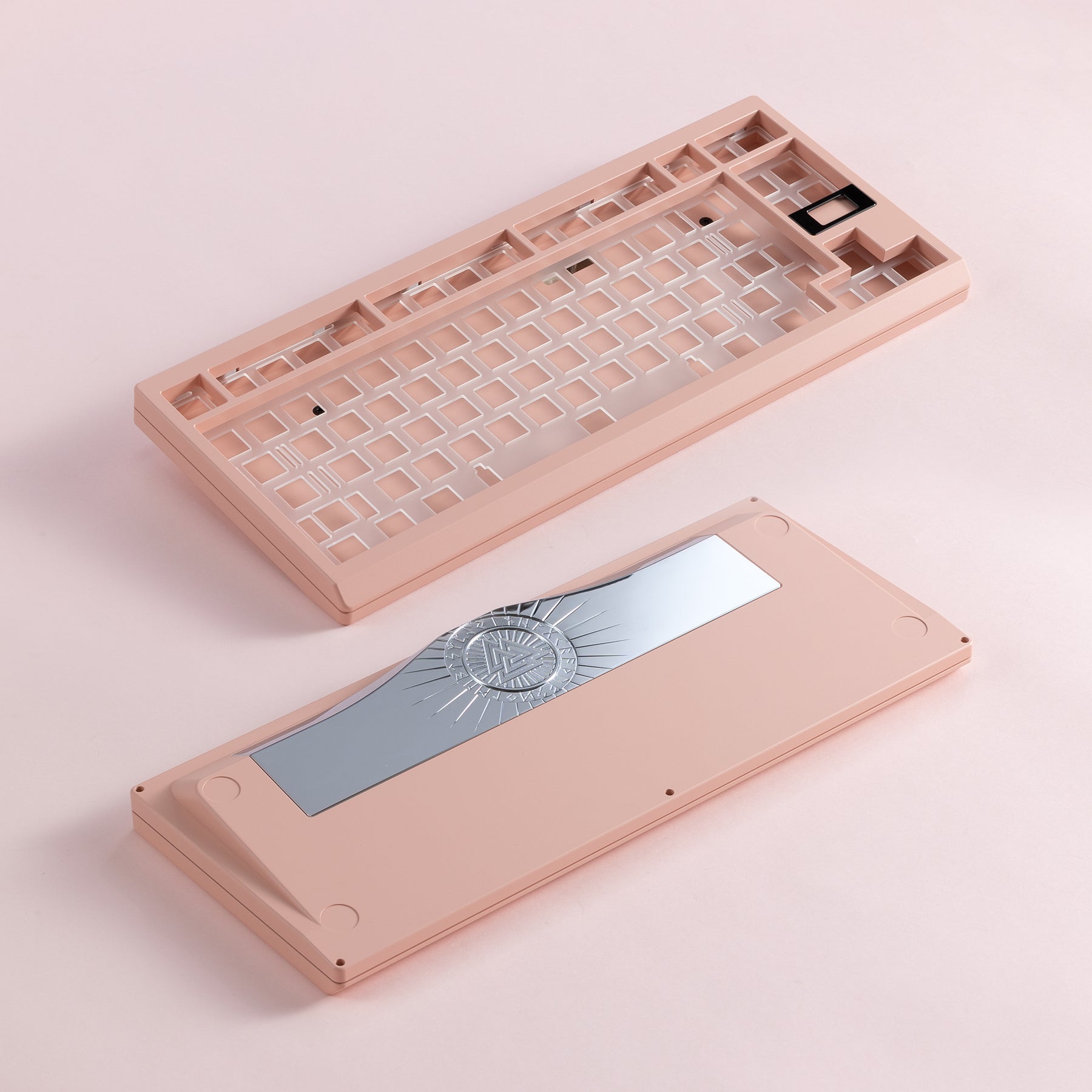

KBDfans Odin 75 Mechanical Keyboard Kit

🛒Pre-order
$319.00
SKU: DP5360
by KBDfans

Odin 75%

75% size programmable custom Aluminum keyboard Kit with OLED screen support (sh1106)

This keyboard is another version of Odin, changing from a 100% layout to a 75% layout, eliminating the numpad and adding programmable OLED

Flexible cut PCB

Programmable: QMK firmware, and you can configure your keyboard with the online via tool

Flexible cutting PCB:The PCB is 1.2mm thickness and supports the open source daughterboard

Hot swappable:You can install your favorite switch without soldering. Replacing the switch is just as easy

Plate

Polycarbonate and Fr4 plate(Flexible cutting)

Mirror polished PVD aluminum weight

7° typing angle

More Render

Sound test

What is inside?


Update_

  • The production of PCB and case will be completed in mid-December,2022 (2022-11-22)
  • In production (2022-11-01)
  • R1 prototype is completed (2022-11-01)

Group Buy Date: Nov 25, 06:00 PM (Pacific Standard Time Timezone)

Specs

  • Case: Top aluminum, bottom aluminum
  • Case color: Black, Dark Gray, Dark Blue, Burgundy Red, E-white, Gray Purple
  • Wired version PCB: Hot-swap version, Flex cut, without RGB effect, 1.2mm thickness
  • Notes: Support VIA and VIAL(It is recommended to use VIA). VIAL's firmware is not official
  • Plate: Polycarbonate and FR4
  • Structure: Leaf spring mount; 75% layout
  • Interface: USB-C
  • Translucent OLED Screen
  • Foam: Case foam and PCB foam (PORON material)
  • Weight Bar: PVD coating silver aluminum
  • Rubber feet: Round rubber feet
  • Typing angle: 7°
  • Weight: ≈2.1kg
  • Designer: KBDfans

  Include

  1. Aluminum case x1
  2. Aluminum weight bar x1
  3. Translucent OLED screen x 1
  4. Flexible cutting PCB x1
  5. Flexible cutting FR4 plate x1
  6. Polycarbonate plate x1
  7. Case foam x1
  8. Mid frame x1
  9. PCB foam x1
  10. USB daughterboard x1
  11. Switch Pad x1 set
  12. Silicone socks x1 set
  13. Screws x1 set
  14. Rubber feet x1 set
  15.

  Estimated Shipping Date

  1. End of January, 2023
  2.

   Firmware
