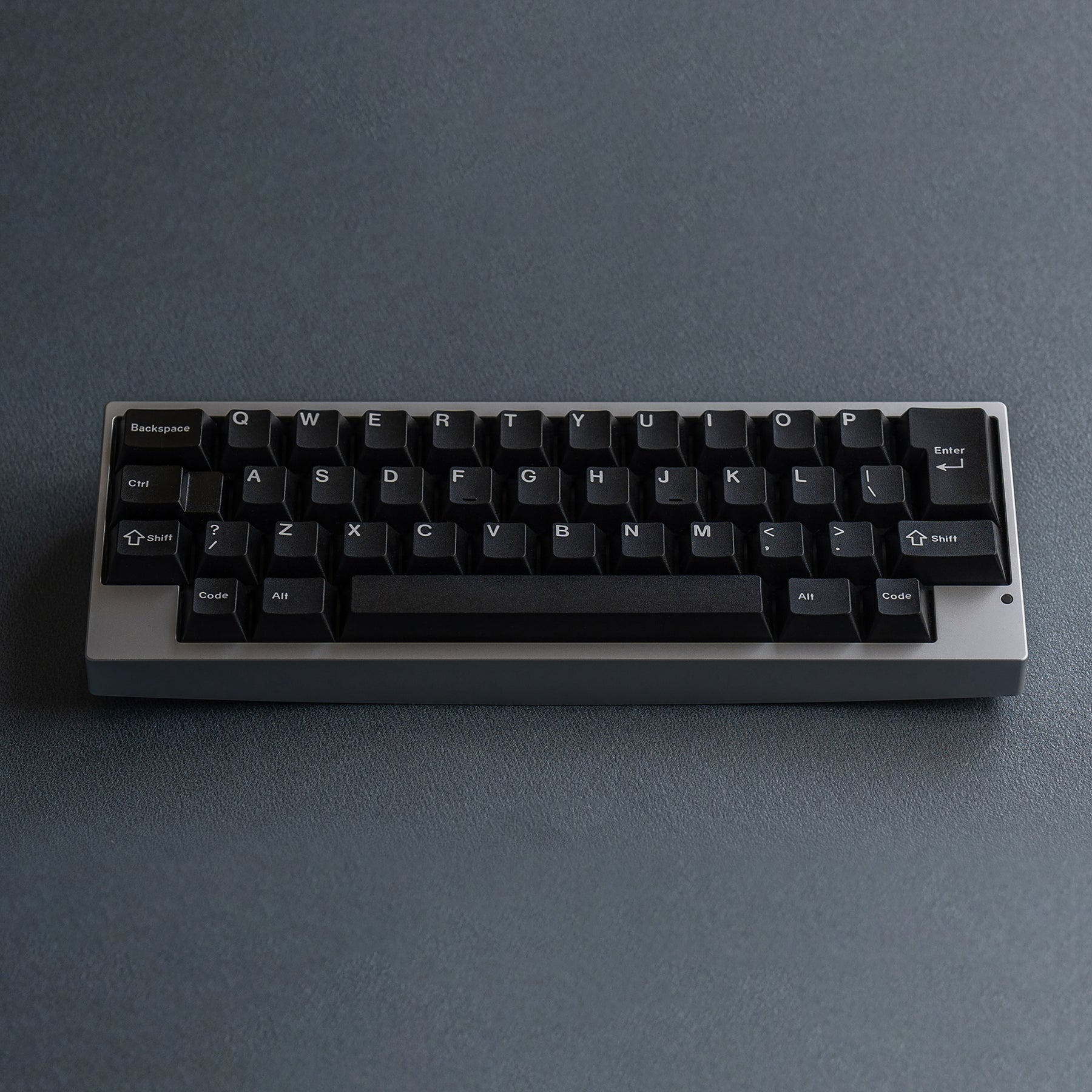

[GB] M9N

$365.00
SKU: DP6696

M9N Limited to 35 units only

Inspiration:

I was inspired to create this keyboard because I realized that we interact with keyboards almost every day.

We use them on Monday, Tuesday, Wednesday, and so on. Since we use them daily, I thought it would be fun to create a series of seven keyboards, one for each day of the week, allowing us to switch keyboards every day.

This keyboard is the first in the series, named M9N. It is designed with the theme of "Monday."

In a 40% layout, most users set the second layer to correspond with the QWERTY layout as 123456..., where the position of "O" corresponds to 9.

Combining this with the abbreviation "mon," the keyboard has its unique name.

IC:https://www.zfrontier.com/app/flow/JnnVEgNWW159

Include:

  • KIT: Top case x1/ Bottom case x1/ Weight Bar x1/ PC indicator part*1/metal indicator part*1
  • Barebone: Battery x1/ Daughterboard x1/ LED board x1/ PCB x1/ Plate x1/Foam Kit x1
  • Rubber feet: Round rubber feet* 4/ feet A* 2/ feet B* 2
  • Gasket x1 set
  • Carrying case x1
  • Screws x1 set

Build and typing test videos

QC Standard

  • Appearance: There are no scratches or bumps larger than 1*1mm on the exterior of the kit (Appearance: After installing the keycaps, there are six visible exterior surfaces: up, down, left, right, front, and back)
  • Function: The keyboard functions well and has no usage problems
  • Structure: The keyboard is well structured when assembled, and there are no dimensional interferences that may cause issues that prevent installation

Specs:

  • Layout: 40% HHKB
  • Top mount
  • Bluetooth compatible
  • Dimension: 254.80* 91.42* 28.08mm
  • Weight: around 1.0kg with stainless steel weight bar
  • Case Material: Aluminum 6063
  • Weight bar material：PC/stainless steel/ copper brass
  • Type angel: 8°
  • The standard metal indicator part: Silver case-brass indicator part/ Moon case-copper indicator part/Black-stainless steel indicator part
  • The mx configuration comes with a foam kit, but the ec configuration doesn't include a foam kit
  • This GB supports two PCBs: Pearly V2 and Eevee#40. Both of them are divided into 12 columns and 13 columns. so total 4 PCB options. Pearly V2 is a hot-swappable PCB. Eevee#40 is an EC PCB, the EC barebone only provides the PCB. EC accessories such as the push rod shaft seat rubber bowl need to be purchased additionally
  • Designer: Jio. / ins: 4key_jio



This is a quick order will release on August 21 10:00 am. We will send two shipments, the first will send the battery to you, the second will send the kit, is expected to be shipped in February 2025, the retail price is expected to be 365USD

Disclaimer

  • Due to the influence of the surface treatment process, it is normal for the upper and lower cases to have a slight color difference.
  • Minor internal defects such as anodizing marks, slight knife lines, and internal scratches do not qualify for after-sales service. We will strive to minimize the number of anodizing marks caused by the fixtures, but we cannot guarantee that the quantity of marks will be completely consistent across different colors. Occasional acid marks around screw holes may occur; small areas will not be eligible for after-sales service.















Disclaimer

  • Due to the influence of the surface treatment process, it is normal for the upper and lower cases to have a slight color difference.
  • Minor internal defects such as anodizing marks, slight knife lines, and internal scratches do not qualify for after-sales service. We will strive to minimize the number of anodizing marks caused by the fixtures, but we cannot guarantee that the quantity of marks will be completely consistent across different colors. Occasional acid marks around screw holes may occur; small areas will not be eligible for after-sales service.



Colors

Silver/Moonlight/Black

Dimension

PCB: Support YDKB Pearly v2 and Eevee 40, while each pcb can be divided into 12 columns and 13 columns of two versions, that is, a total of four versions of PCB
Material: The mx plate board provides aluminum and PC materials, and the ec plate board provides stainless steel materials. Due to the ec PCB supporting too much and the particularity of the ec plate board, the IC does not draw pictures for the time being
< Locating the top spring structure of the plate, the screw hole is not set in the space to reduce the resonance, due to 40 size factors, the feel is tough and not too soft >

PCB Layout

Participating in this group purchase grants you a chance to enter a lottery.

Customers selected in the draw will have the opportunity to purchase the limited edition M9N.LE.

Physical photograph
